  • 14.4W/M, 60 × 5050

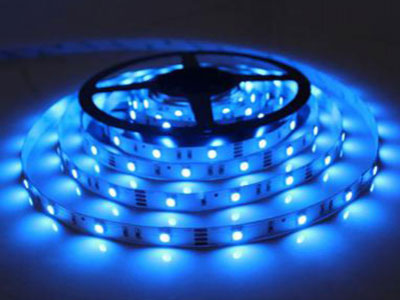

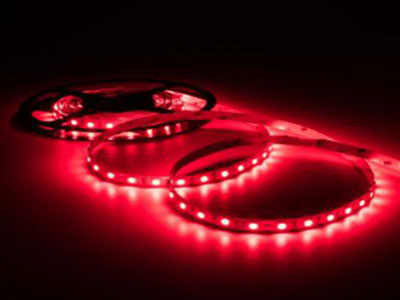

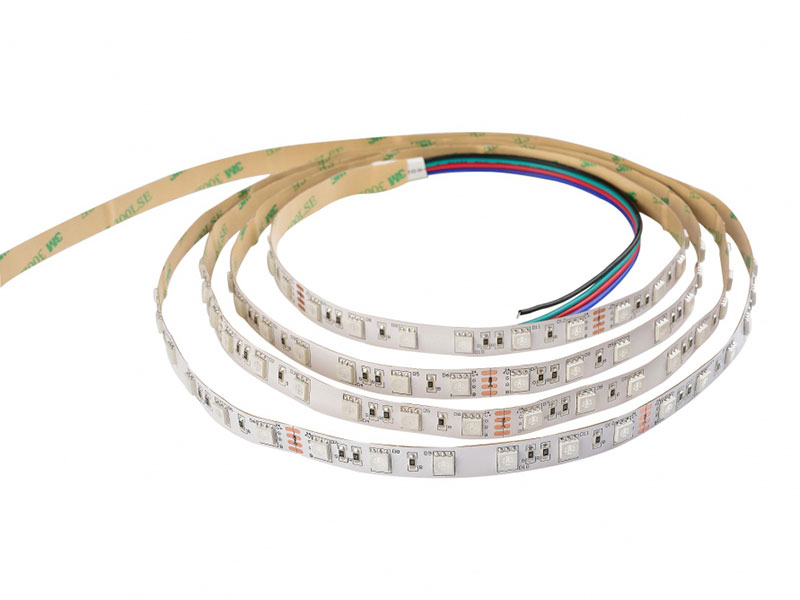

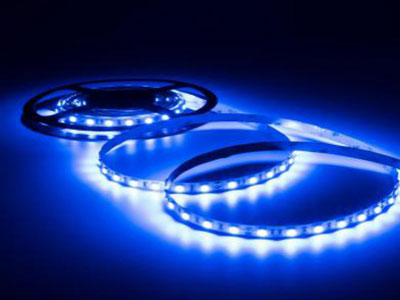

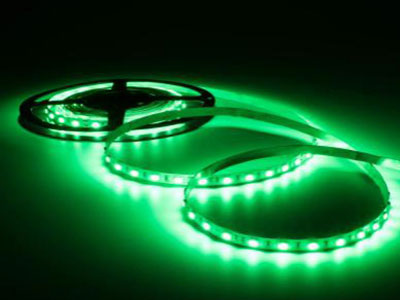

14.4W per meter, 60 × 5050

14.4W per meter, 60 × 5050
14.4W per meter, 60 × 5050 14.4W per meter, 60 × 5050 14.4W per meter, 60 × 5050 14.4W per meter, 60 × 5050 14.4W per meter, 60 × 5050
  • Watts: 14.4W/M
  • Lumens:1080lm on white
  • LED: 60 x 5050 SMD Commercial
  • Voltage: 12V
  • Application: Feature Lighting
Inquiry
Features:
  • The led strip light is RGB 3 in 1.
  • High brightness 5050 LED (Sanan/Epistar), large area LED chips (9×12ML)
  • Double-side flexible PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
  • DC12V/24V low voltage, safe and stable with a 2 year warranty
  • White PCB coating for high temperature environments to protect the PCB board and prevent short circuiting
  • 3-LED/6-LED units that can be cut to different lengths to meet various customer needs
  • Original imported 3M adhesive for easy installation.
Installation method:

Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.

Applications:

Suitable for indoor and outdoor lighting such as niches, grooves, bases, signs, hotels, bars and kitchens

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color temperature(K) Luminous flux(lm /led) Color rendering index R(CRI) Dimension IP rating (modules)
(length*width*height mm)
SL-LR-5050RGB-300-12 5050RGB 14.4 60 12 RGB 1080lm on white 80+ 5000*10*2.1 IP20 / IP64 / IP65 / IP68

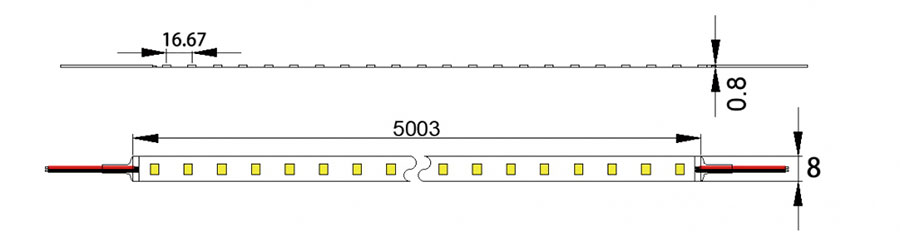

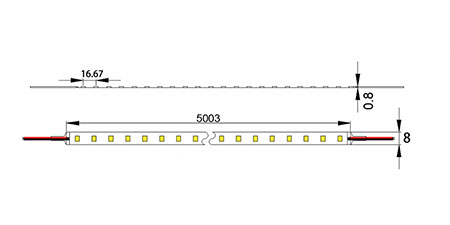

Dimension(Unit:mm [in]:
14.4W per meter, 60 × 5050

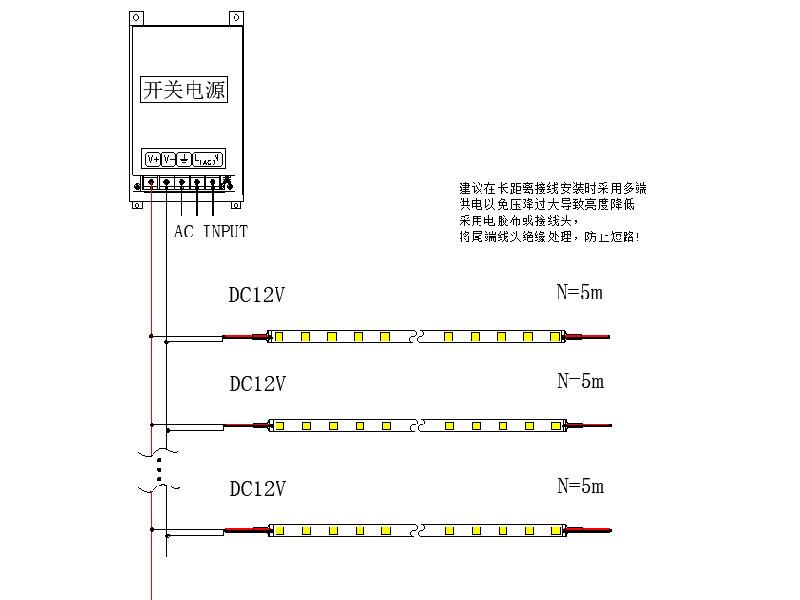

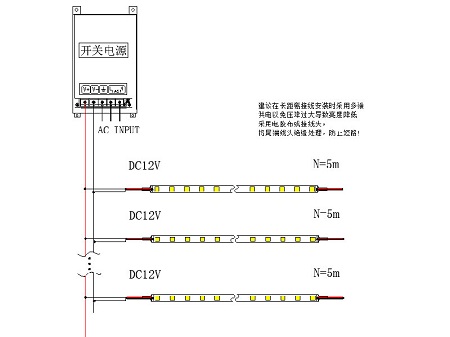

Connection diagram:
14.4W per meter, 60 × 5050
Installation diagram:
14.4W per meter, 60 × 5050
Safety precautions:
  • The RGB LED can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
  • Please select a suitable power supply and check the voltage range before use.
  • The optimal working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
  • The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Pay attention avoid the discharging of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid looking directly at the luminous body during use.
  • Please adhere to the product parameters and instructions for use.

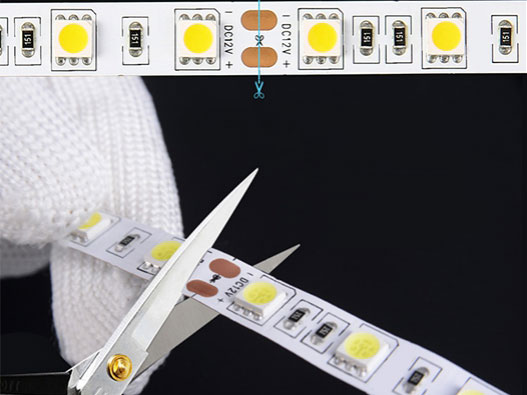

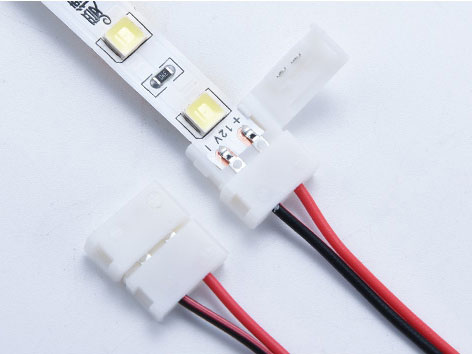

Instructions for cutting, welding, pasting and joining:
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050

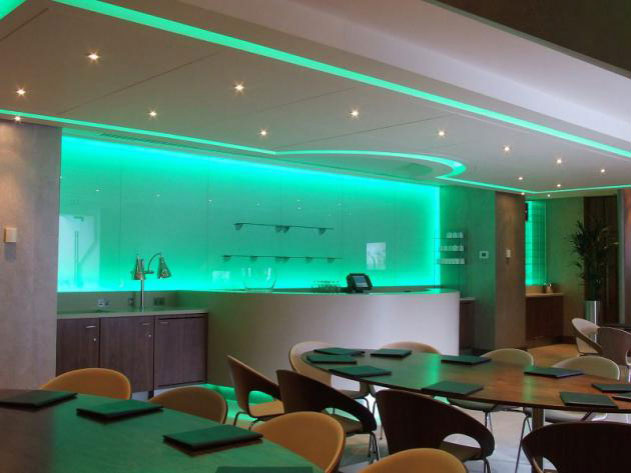

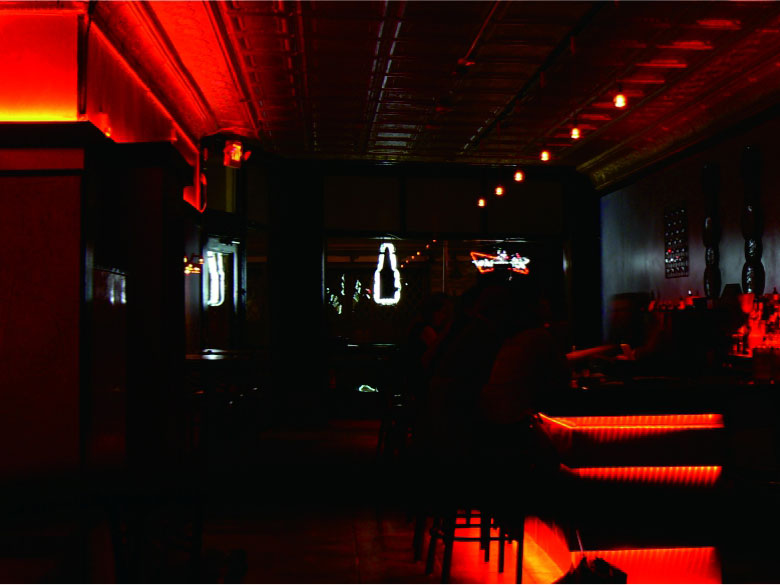

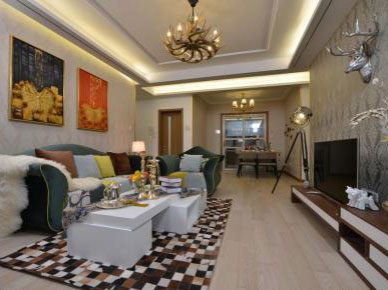

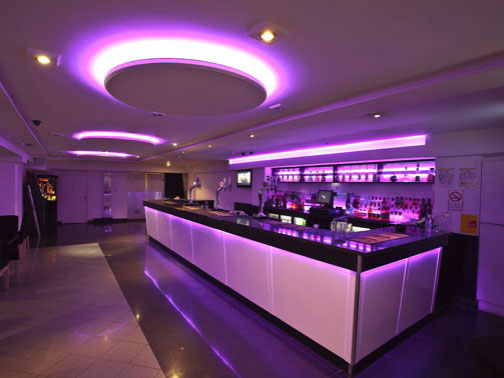

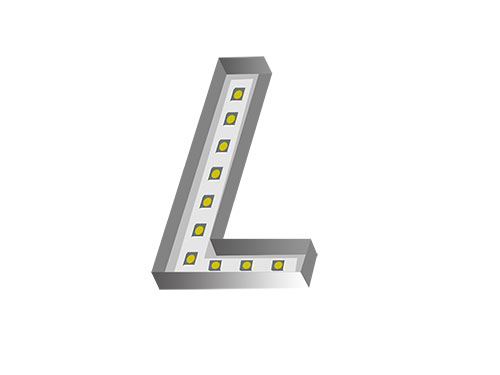

Examples of applications:
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050
  • 14.4W per meter, 60 × 5050
