  • 19.2W/M, 60 × RGBW

SMD5050W LED Strip Lights (19.2W)

SMD5050W LED Strip Lights (19.2W)
SMD5050W LED Strip Lights (19.2W) SMD5050W LED Strip Lights (19.2W) SMD5050W LED Strip Lights (19.2W) SMD5050W LED Strip Lights (19.2W) SMD5050W LED Strip Lights (19.2W)
  • Colour temperature: (W optional PW6000K, NW 4000K, WW 3000K)
Inquiry
Features:
  • High brightness 5050 LED (Sanan/Epistar), large area LED chips (9×12ML)
  • Double-side flexible PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
  • 24V low voltage power for safety and stability with a 2-year warranty
  • White PCB coating for high temperature environments to protect the PCB board and prevent short circuiting
  • 6-LED units that can be cut to different lengths to meet various customer needs
  • Red temperature-resistant thermally conductive double-sided tape for firmer adhesion
  • The multi-color light source has better light mixing effects
Installation method:

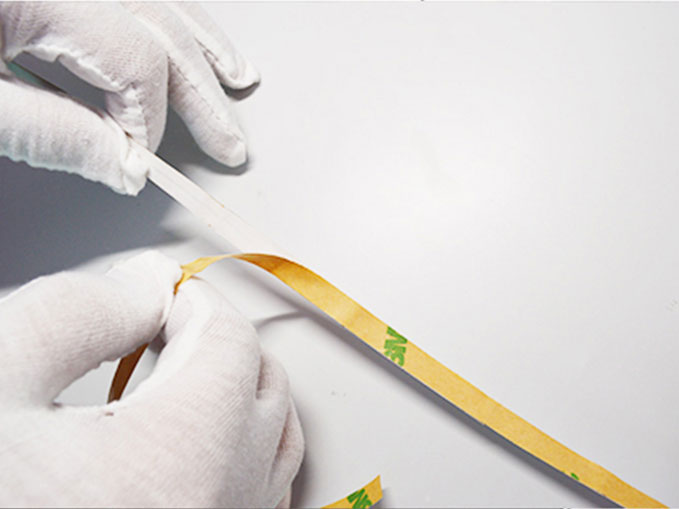

Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.

Applications:

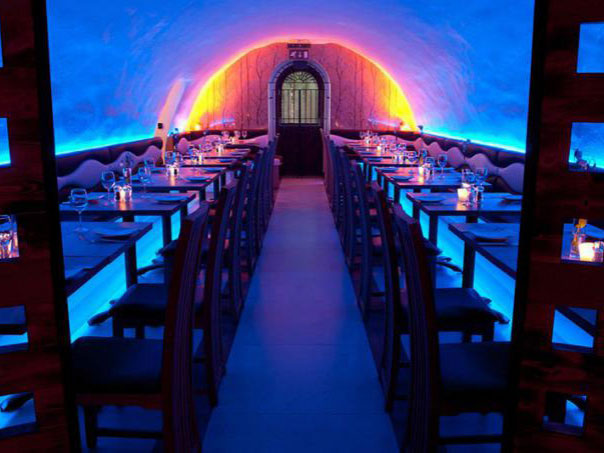

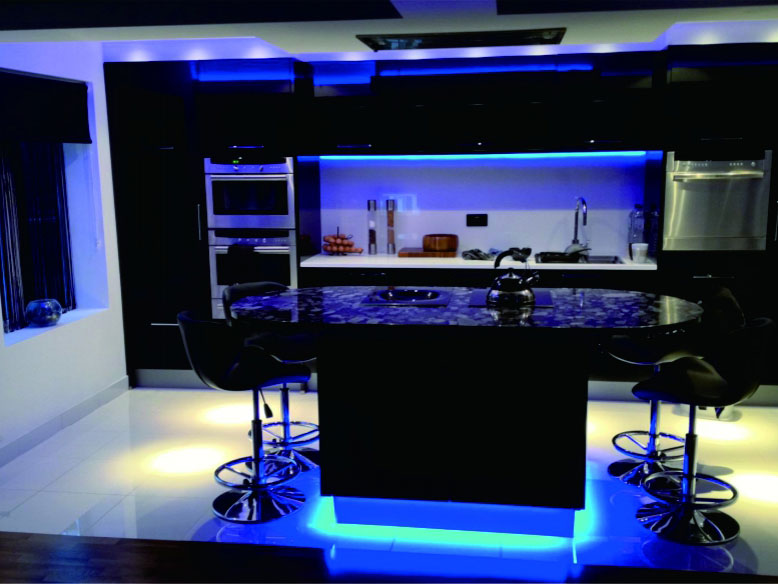

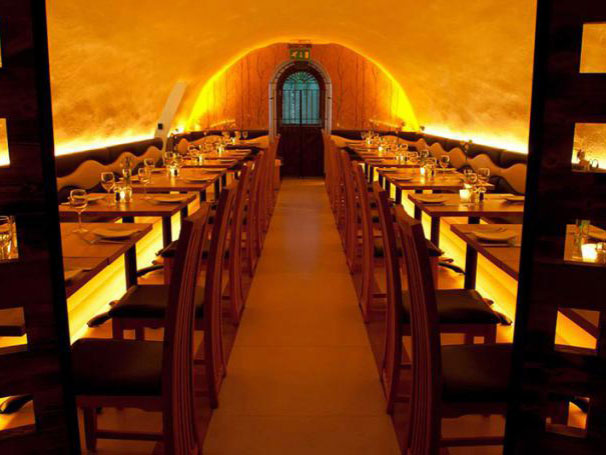

Suitable for indoor and outdoor lighting such as niches, grooves, bases, signs, hotels, bars and kitchens

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color temperature(K) Luminous flux(lm /led) Color rendering index R(CRI) Dimension IP rating (modules)
(length*width*height mm)
SL-LR-5050-RGBW4C-300 5050 RGBW 19.2 60 24 WPW 6000K 1440 70+ / 80+ / 95+ 5000*12*2.1 IP20 / IP64 / IP65 / IP68
NW 4000K
WW 3000K

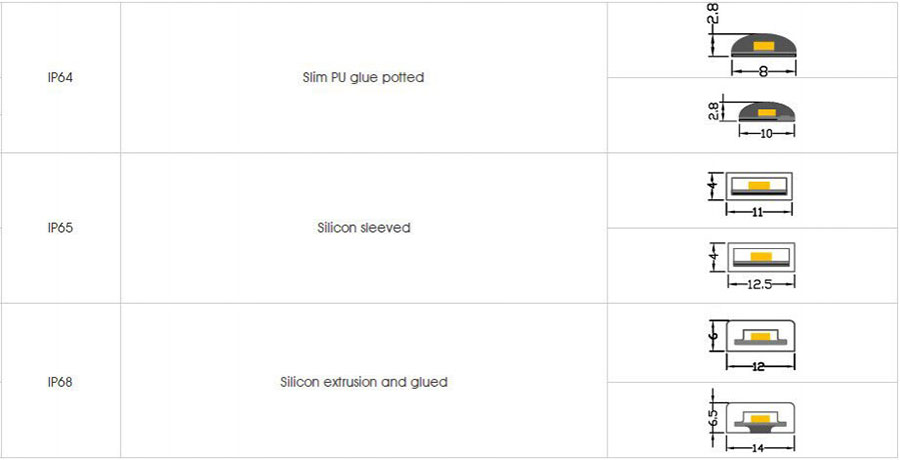

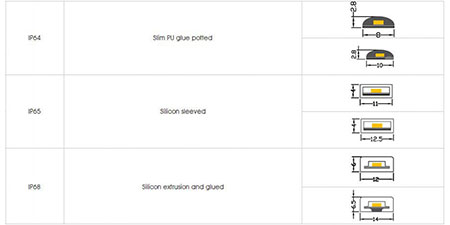

Protection level:
SMD5050W LED Strip Lights (19.2W)

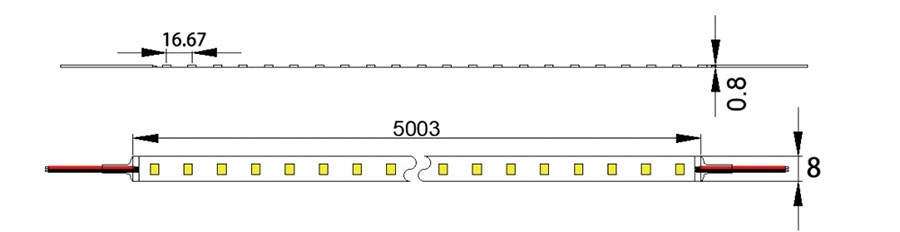

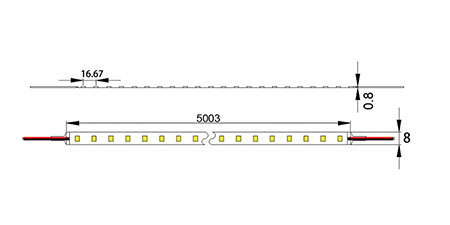

Dimension (Unit:mm [in]):
SMD5050W LED Strip Lights (19.2W)
Installation diagram:
  • SMD5050W LED Strip Lights (19.2W)

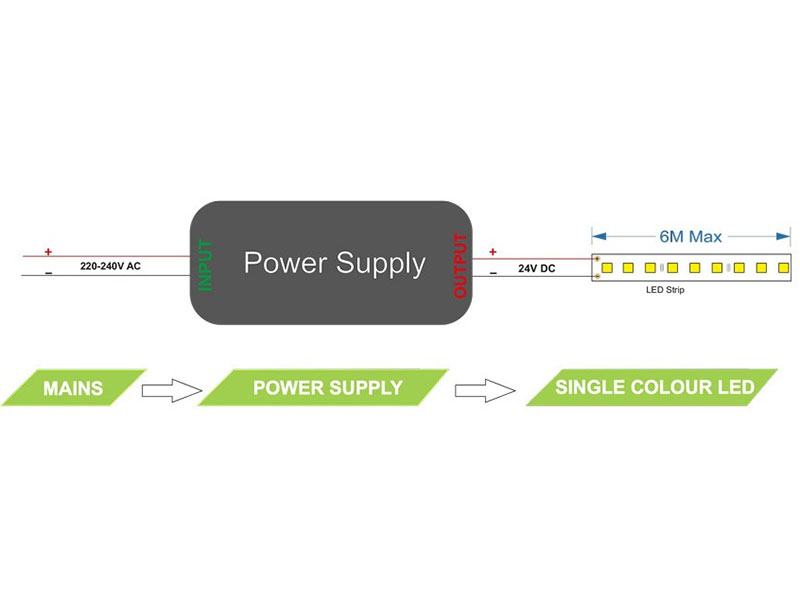

    Power connect single strip
  • SMD5050W LED Strip Lights (19.2W)

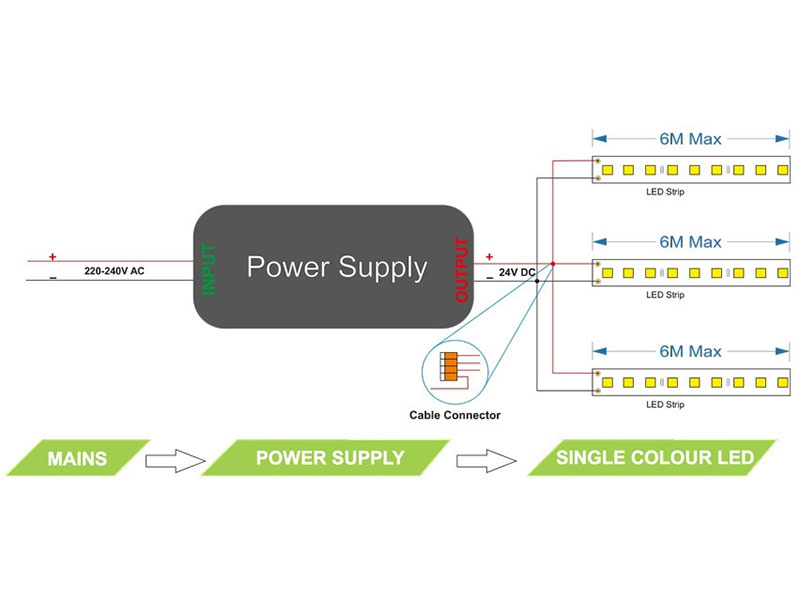

    Power connect multiple strips
  • SMD5050W LED Strip Lights (19.2W)

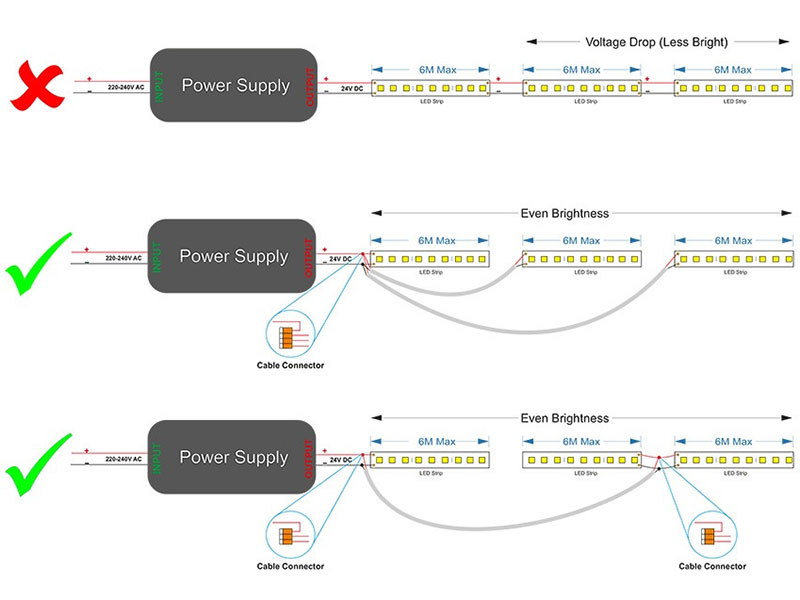

    Recommended and not recommended connection method

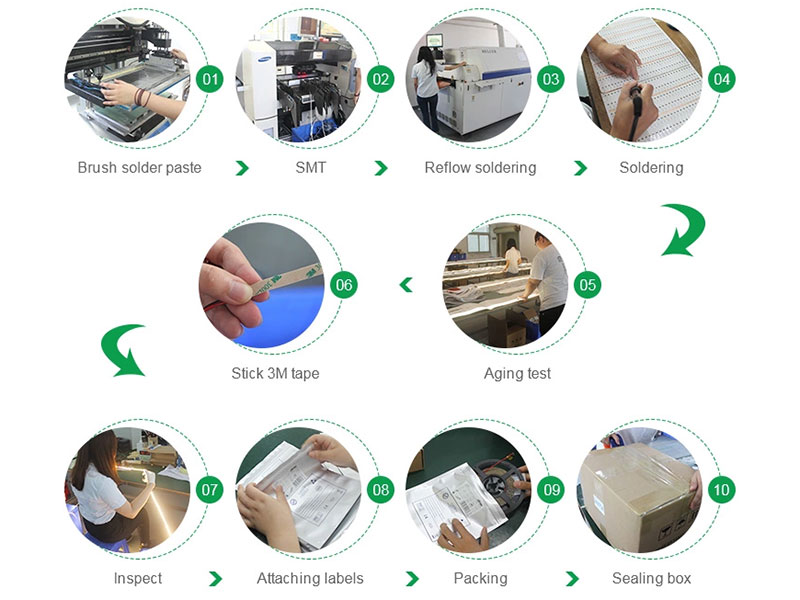

Manufacturing process:
SMD5050W LED Strip Lights (19.2W)

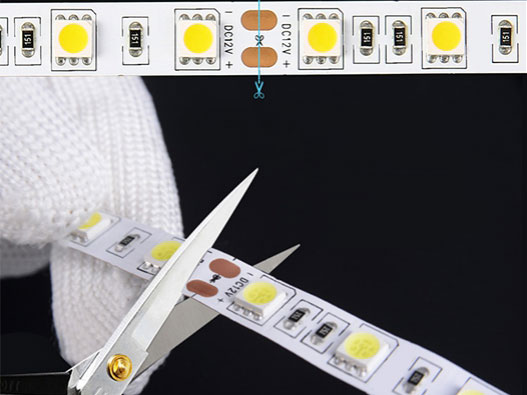

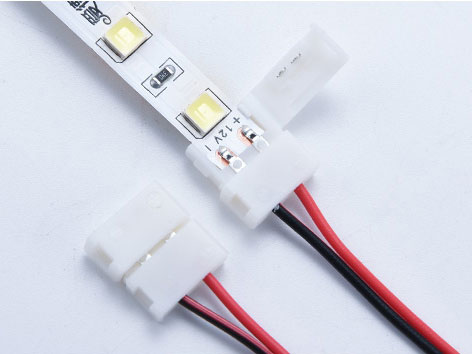

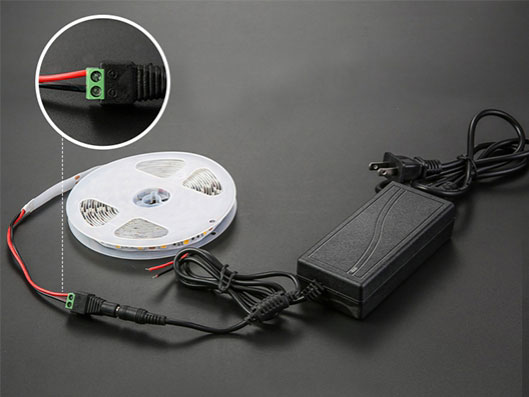

Instructions for cutting, welding, pasting and joining:
  • SMD5050W LED Strip Lights (19.2W)
  • SMD5050W LED Strip Lights (19.2W)
  • SMD5050W LED Strip Lights (19.2W)
  • SMD5050W LED Strip Lights (19.2W)
Safety precautions:
  • The RGB LED can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
  • Please select a suitable power supply and check the voltage range before use.
  • The optimal working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
  • The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Pay attention avoid the discharging of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid looking directly at the luminous body during use.
  • Please adhere to the product parameters and instructions for use.

Here at Sunlite, we are experts in professional LED lighting solutions. We provide you with indoor/outdoor lighting solutions for advertising, decoration, and general lighting projects. All of our products can be customized to best suit your needs. Some of our most commonly applied products include LED strip lights, LED modules, LED power suppliers, and other LED accessories. Contact us today to learn more about how we can help you meet all your lighting requirements.
