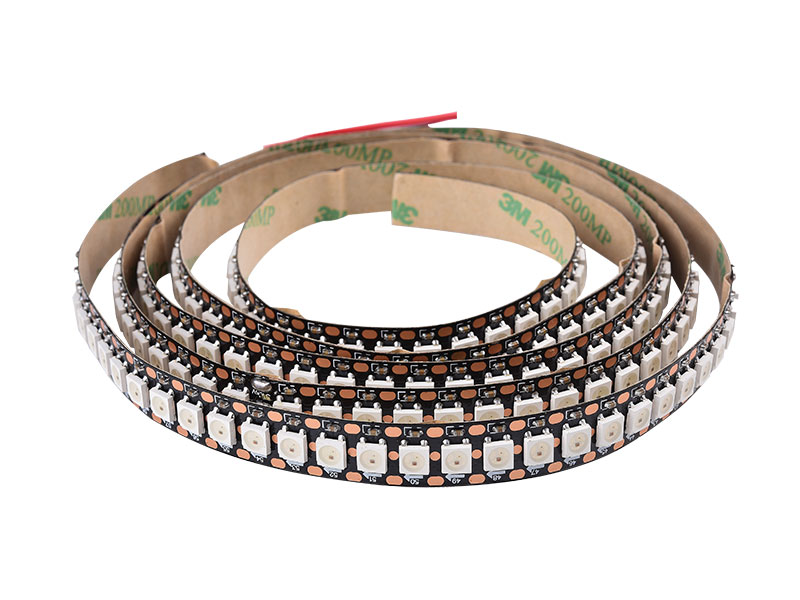

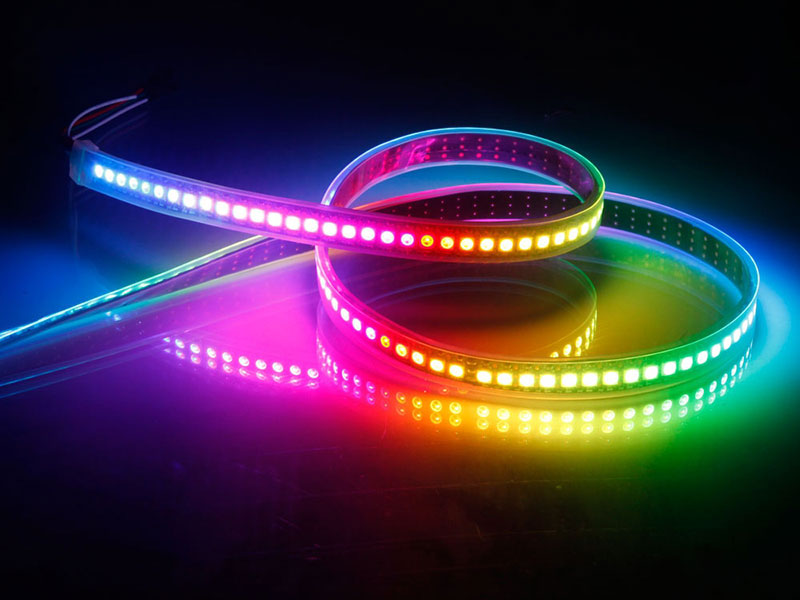

Full color, Build-in IC

Full color, Build-in IC
Full color, Build-in IC Full color, Build-in IC Full color, Build-in IC
  • Watts: 14.4W/M、18W/M、32W/M
  • Lumens:1320lm/LED、2112lm/LED、2880 lm/LED
  • LED: 60 x 5050 SMD 、96 x 5050 SMD、140 x 5050 SMD
  • Voltage: 12V/24V
Inquiry
Features:
  • RGB full color
  • High brightness SMD5050 RGB LED light source, supplied by reliable brands (9×12ML)
  • Double-side flexibility PCB (2OZ thickness), high quality resistance to protect the LED chip from damage.
  • Thanks to a built-in IC, the PCB board surface is more concise with a lower failure rate.
  • LED pixel control lighting for more delicate effects.
  • Double-sided 3M adhesive on the back for easy installation.
Installation method:

Remove the protective sheet covering the 3M adhesive tape on the back of the LED strip and press the exposed adhesive strip to the desired installation site.

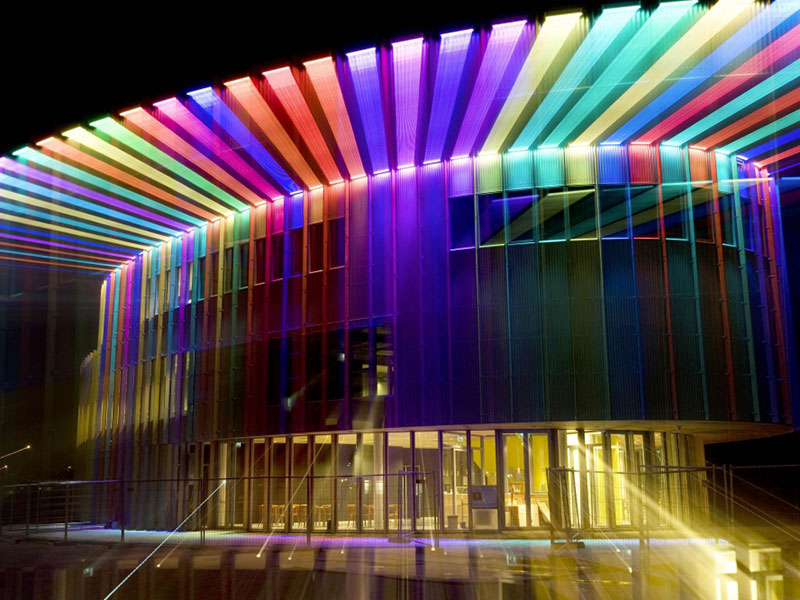

Applications:

This type of lighting is suitable for indoor and outdoor applications such as niches, grooves, bases, and signage for hotels, bars, restaurants, etc.

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color Luminous flux(lm /led) Color rendering index R(CRI) Dimension IP rating (modules)
(length*width*height mm)
R-5010-QI160-5 SMD 5050 14.4 60 5 RGB full color 1320 80+ 5000*10*2.1 IP20 / IP64 / IP65 / IP68
R-5010-QI96-5 SMD 5050 18 96 5 RGB full color 2112 80+ 5000*10*2.1 IP20 / IP64 / IP65 / IP68
R-5012-QI144-5 SMD 5050 32 144 5 RGB full color 2880 80+ 5000*12*2.1 IP20 / IP64 / IP65 / IP68

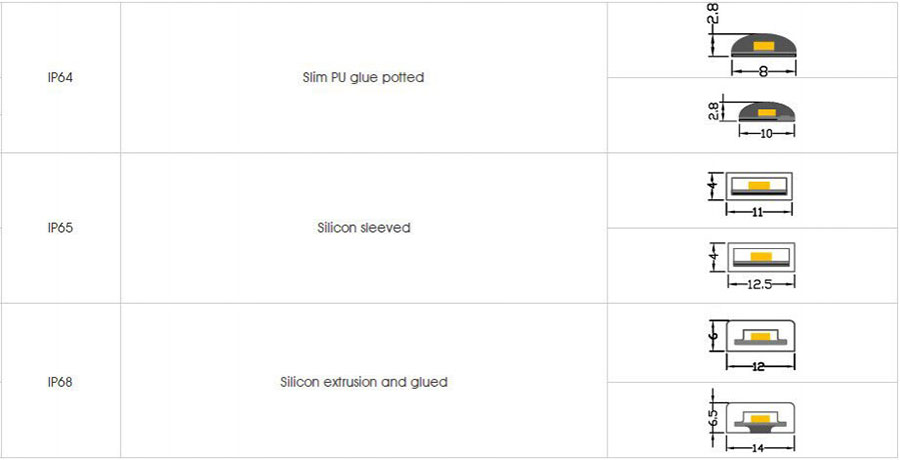

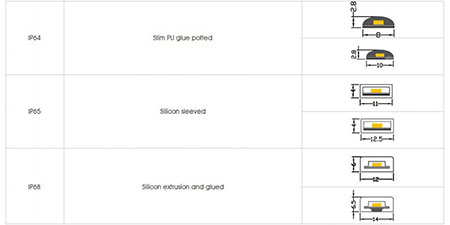

Protection level:
Full color, Build-in IC

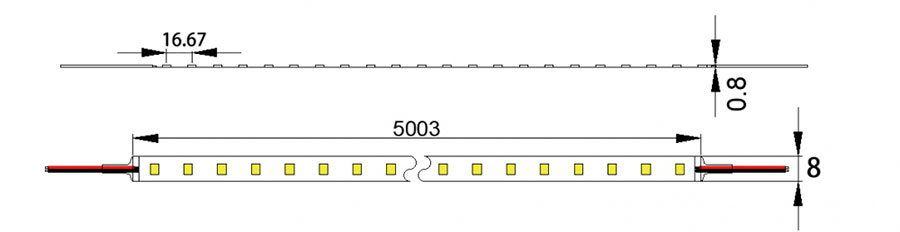

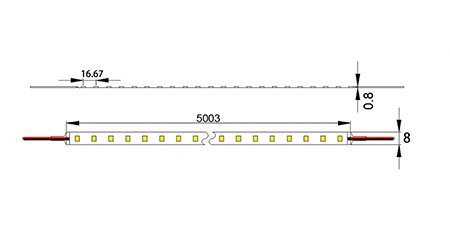

Dimension (Unit:mm [in]):
Full color, Build-in IC

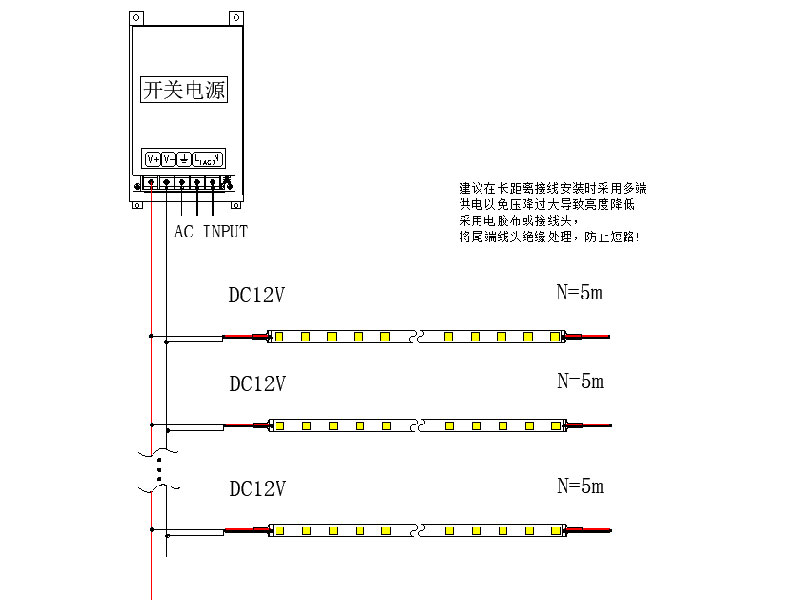

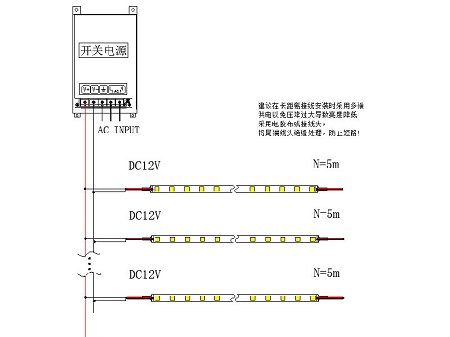

Connection diagram:
Full color, Build-in IC

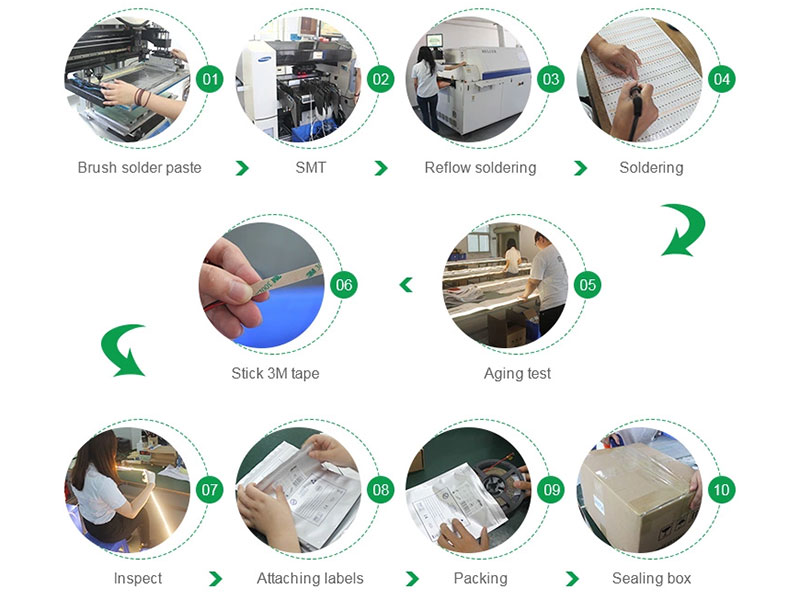

Manufacturing process:
Full color, Build-in IC

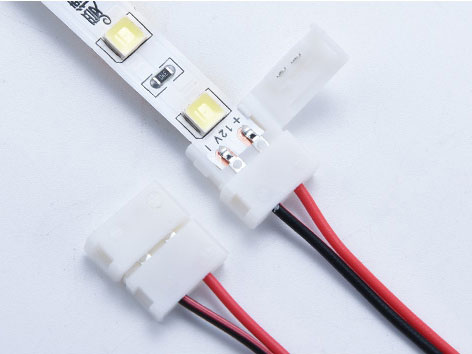

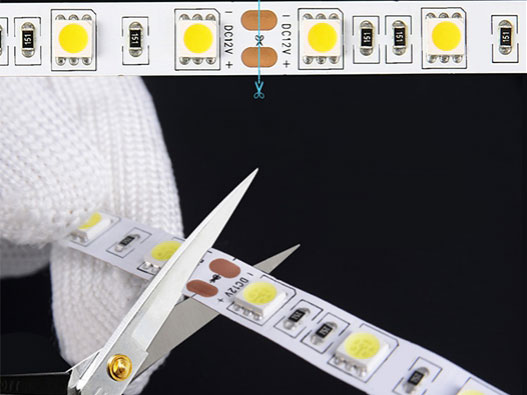

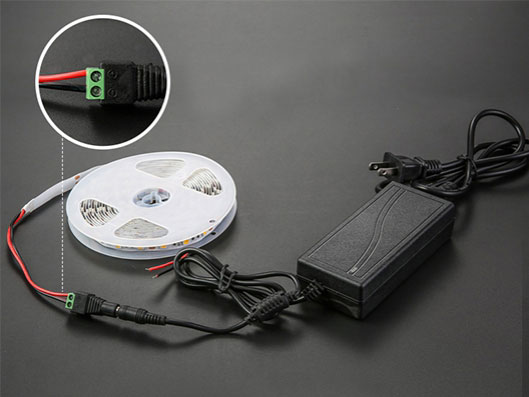

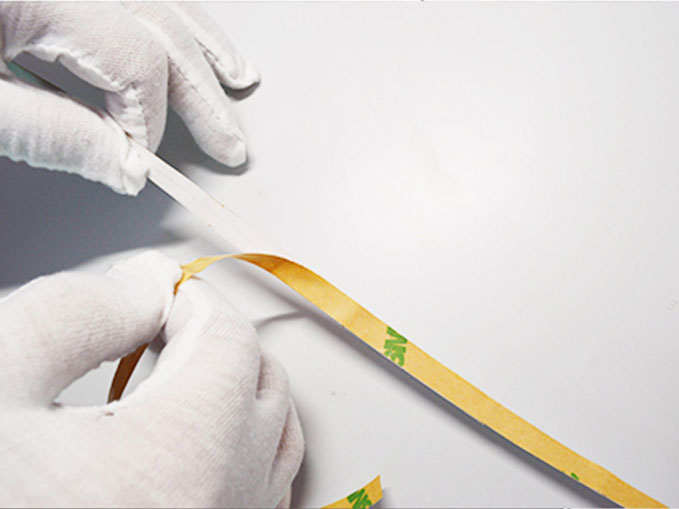

Instructions for cutting, welding, pasting, and joining:
  • Full color, Build-in IC
  • Full color, Build-in IC
  • Full color, Build-in IC
  • Full color, Build-in IC
Safety precautions:
  • The LED tape should only be used after removal from the package. Prior to use, please confirm the product is free from damage. If it is damaged, it should not be installed or used.
  • Please select a suitable power supply and check the voltage range before use.
  • The optimal working environment temperature range for the product is -25°C ~ + 60°C, and the storage environment temperature should be between -40°C ~ + 80°C.
  • The product should be installed in a well-ventilated space. We recommend that you avoid installing in any sort of sealed space as it will affect the heat dissipation needed for the LED tape to operate safely.
  • Please cut off the electricity supply during installation, and then power it on once it has been installed. Do not touch the product during use.
  • Avoid static electricity discharging during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid looking directly into the light when the LED tape is illuminated.
  • Please strictly adhere to product parameters and instructions.
