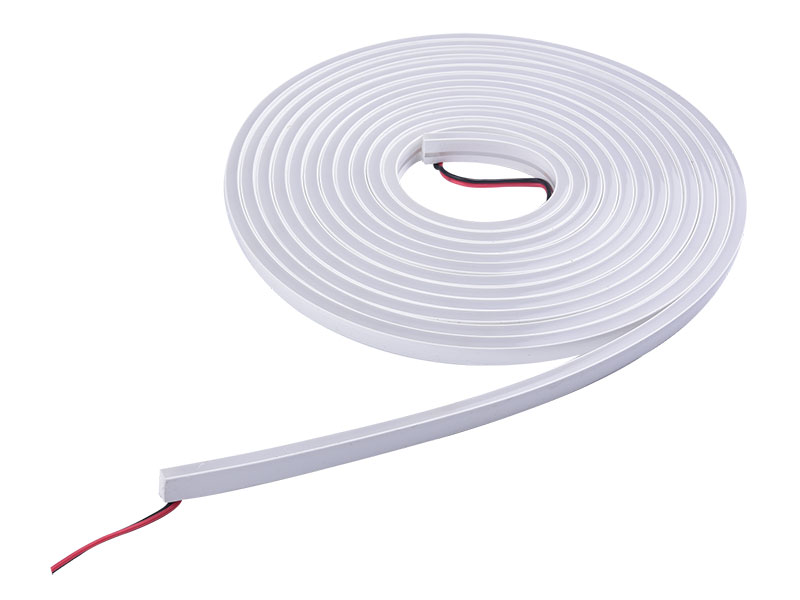

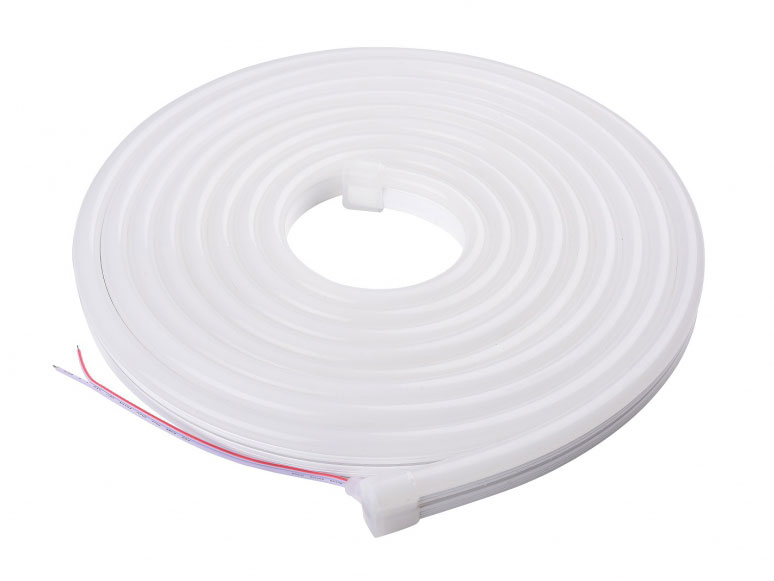

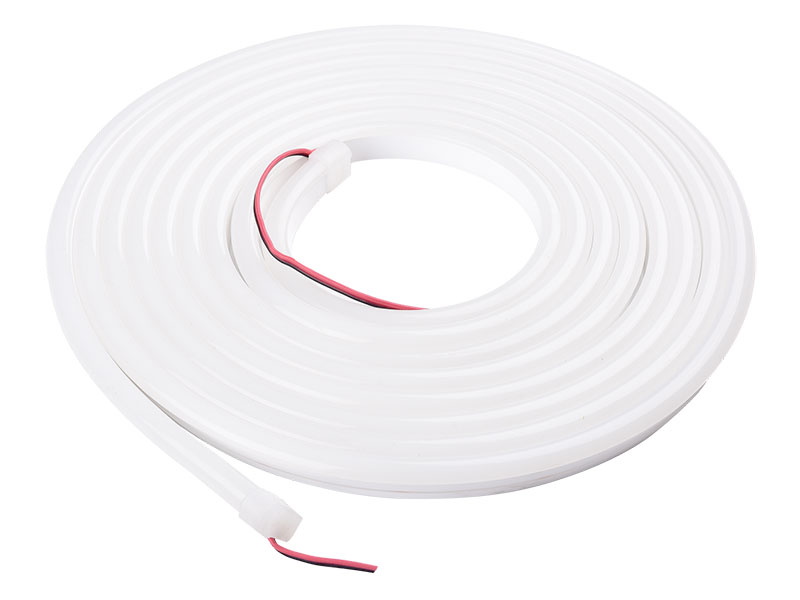

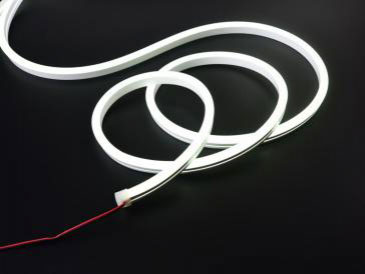

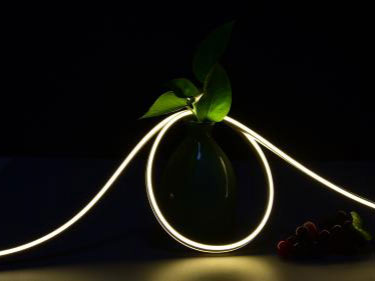

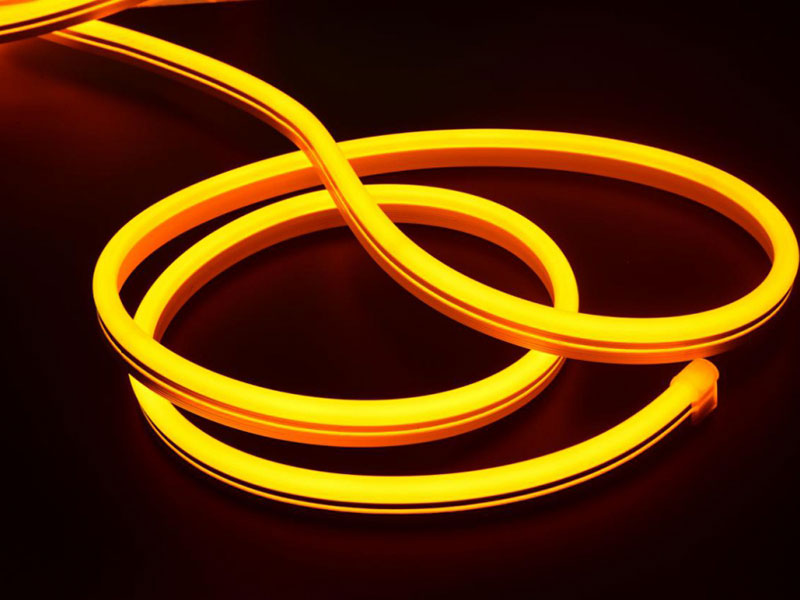

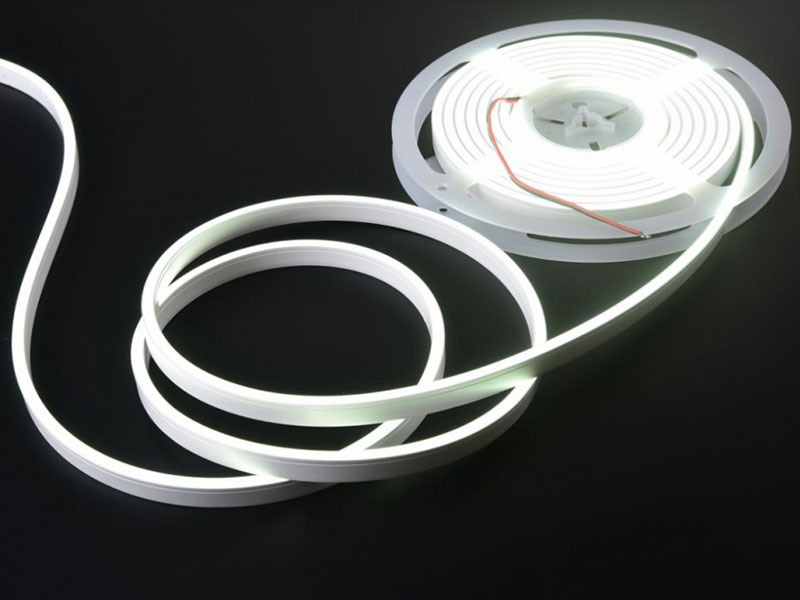

Neon Flex LED Lighting

  • Watts: 12W/M
  • LED: 120x 2835 SMD
  • Voltage: 24V
  • Our neon flex LED lighting features anti-yellowing and heat resistant silicon glue with outstanding chemical and alkaline resistance. These characteristics make the lighting unit perfect for extreme outdoor conditions.
GJ0512-2805-120W-24(Dimension: 5000*5*12)
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
GJ0612-2808-120W-24(Dimension: 5000*6*12)
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
GJ0613-2808-120W-24(Dimension: 5000*6*13)
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
GJ0922-2810-120W-24(Dimension: 5000*9*22)
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
Features:
  • Applying food grade silicone, the neon flex LED lighting is anti-yellowing with good weather resistance, making the light suitable for outdoor installation
  • Excellent flexibility for custom shape options
  • Uniform and soft luminance, no light spots
  • Red/green/yellow/white/pure white/warm white/cool blue/rose red are available
  • DC24V option, low input, safe and reliable
  • SMD2835 thick bracket lamp beads are firm and durable
  • High bright lamp beads, CRI80
  • 3 year warranty, maximum can reach 5 years of quality assurance
  • Double-sided 2OZ calendered copper circuit board with stable quality
  • 5CM units and they can be cut in different lengths to meet different needs
Technical parameters:
Model Max daisy chain(LED Qty) Color Luminous flux(Output) Color temperature(K) Color rendering index R(CRI) Nominal voltage Dimension Power(W/M) Luminous flux(lm/M)
(CCT) (V DC) (length*width*height mm)
GJ0512-2805-120W-24 120-LED/M red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red 1600lm/M 6000-7000K ≥80% 24 5000*5*12 12 1300-1500
GJ0612-2808-120W-24 120-LED/M red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red 1600lm/M 6000-7000K ≥80% 24 5000*6*12 12 1300-1500
GJ0613-2808-120W-24 120-LED/M red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red 1600lm/M 6000-7000K ≥80% 24 5000*6*13 12 1300-1500
GJ0922-2810-120W-24 120-LED/M red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red 1600lm/M 6000-7000K ≥80% 24 5000*9*22 12 1300-1500
Dimension:

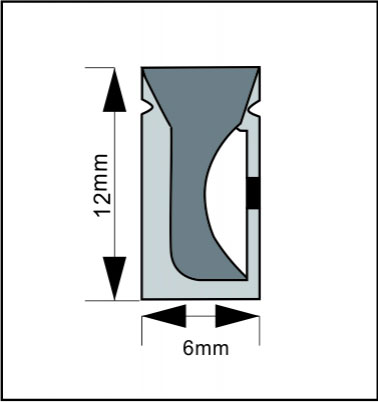

  • Neon Flex LED LightingGJ0612-2808-120W-24

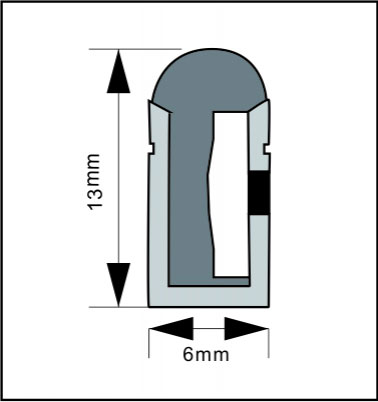

  • Neon Flex LED LightingGJ0613-2808-120W-24

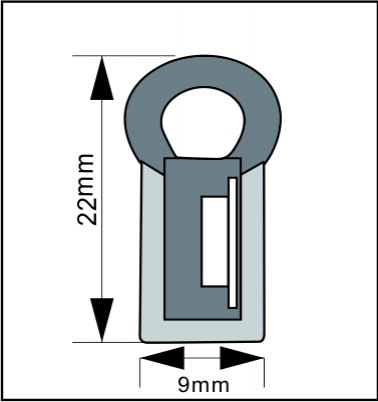

  • Neon Flex LED LightingGJ0922-2810-120W-24

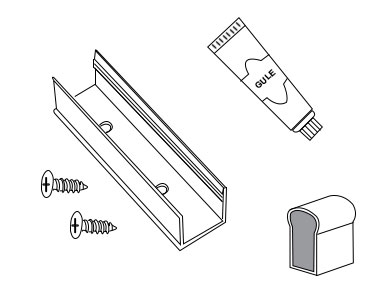

Installation accessories:
Neon Flex LED LightingFixing screws, fixing buckles, glue, plugs
Installation instruction:
Neon Flex LED Lighting
Installation method:

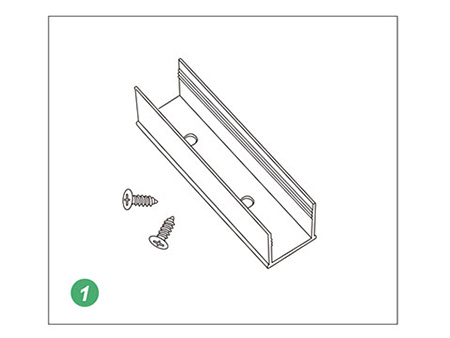

Neon Flex LED Lighting1. Prepare the screws and fixed clips

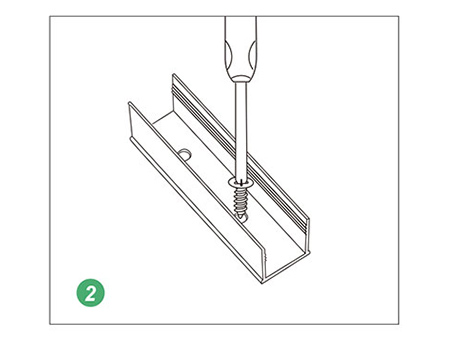

Neon Flex LED Lighting2. Adjust the fixed clips to the appropriate place, and use a screwdriver to fix the screw
Neon Flex LED Lighting3. Put the light-emitting surface upwards, then insert the LED strip into the fixed clips

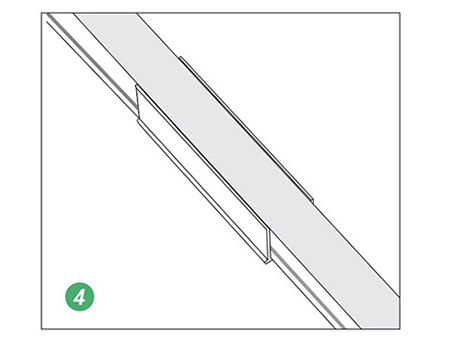

Neon Flex LED Lighting4. Fix the LED strip completely into the fixed slip. The LED strip surface must be parallel to the top edge of the fixed clip

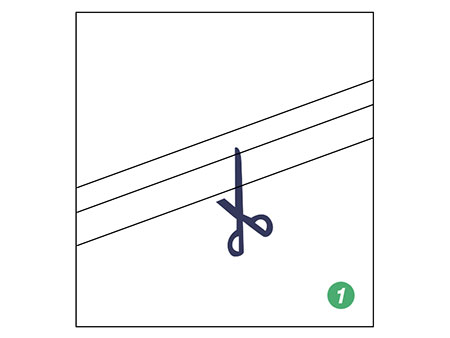

  • Neon Flex LED LightingCut the appropriate spot

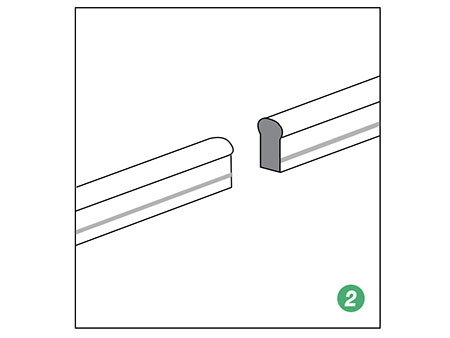

  • Neon Flex LED LightingFinish the cutting

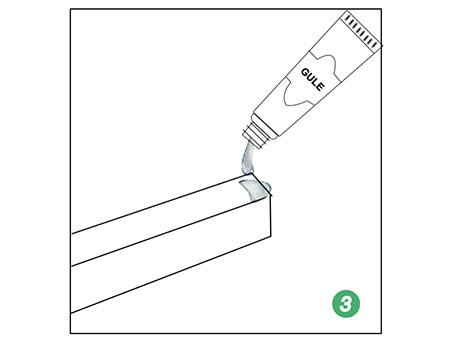

  • Neon Flex LED LightingCoat the section with glue uniformly after cutting

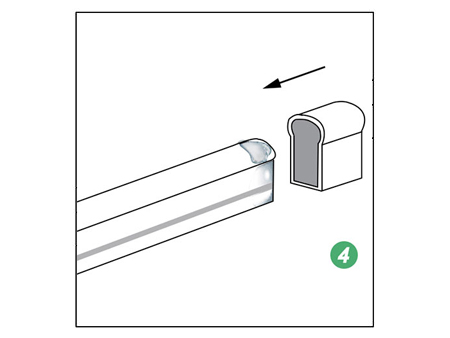

  • Neon Flex LED LightingInsert the section into the plug according to the direction of the arrow

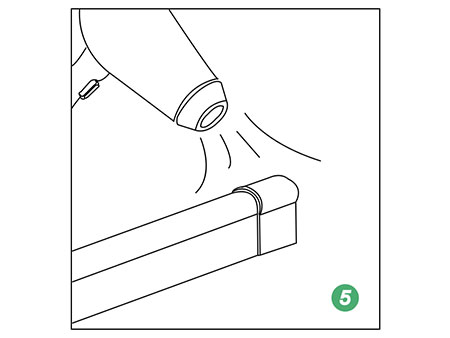

  • Neon Flex LED LightingUse hot air to dry the plug quickly or air dry to ensure a firm installatio

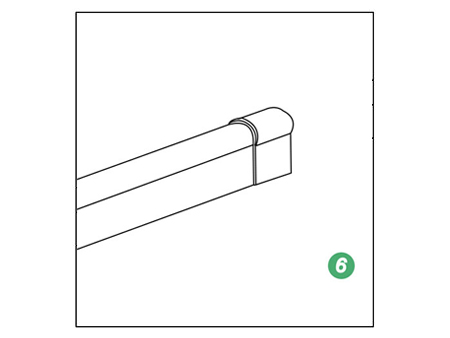

  • Neon Flex LED LightingFinished plug installation
    Occlusion incision

Precaution: Please note that the strips are not bendable in all directions. Please follow the instructions.

  • Neon Flex LED LightingFace the light surface, fold the strip, the minimum bending diameter is 40mm (as the picture shows)

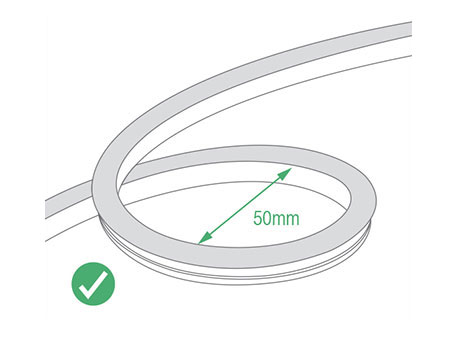

  • Neon Flex LED LightingLight surface upwards, the strip is bendable to right or left naturally, the minimum bending diameter is 50mm (as shown)

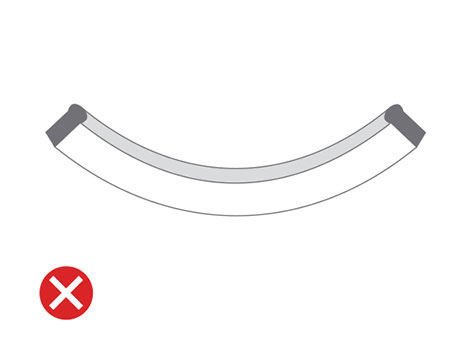

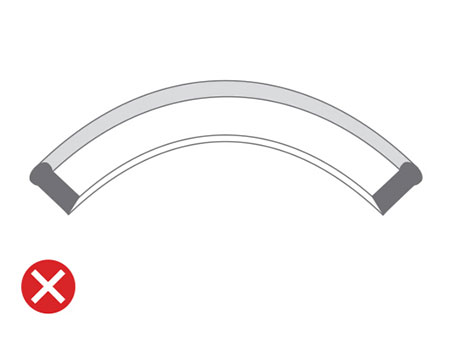

  • Neon Flex LED LightingFace to the side surface, (as shown). Do not bend downward
  • Neon Flex LED LightingFace to the side surface, (as shown). Do not bend upward or risk damaging the strip

LED strips are low voltage products, you must use the AC-DC switching power supply (transformer). Do not connect the LED strip directly to the AC110V or AC220V, otherwise, it will burn out the LED strips, which can be dangerous.

Please read the specifications thoroughly before installation by professional staff to ensure safety.

Installation Instructions:
  • The main power cable uses 2x1.5mm2. If the LED Rigid Bar lines need to be lengthened, then the lamp power needs a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord leading to excessive heat. The power supply and power cord length straight between the lamp must not exceed 3 meters. If it does, line loss will increase.

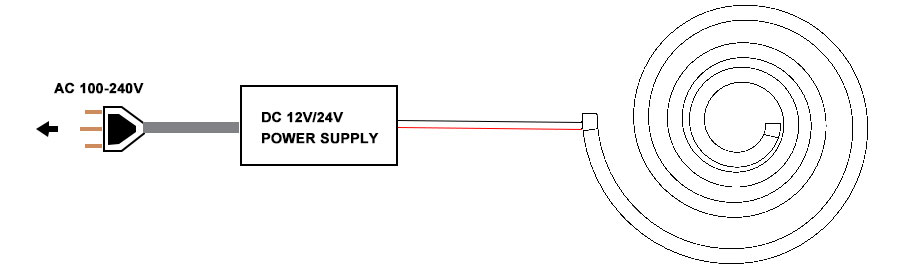

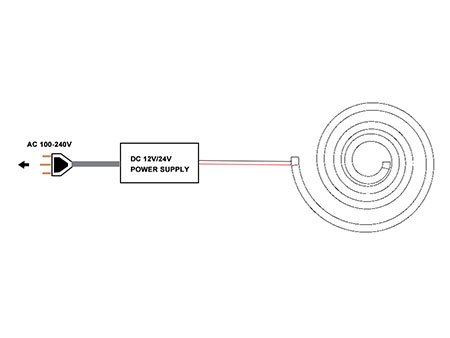

  • Please use the connection diagram in the wiring scheme
  • The screws into the lamp mounting should feature straight holes and lock in place
  • When LED Rigid Bar trails have a bare wire conductor, first strip off about 10mm then screw into the connection head insulation protection.
  • To ensure waterproofing and corrosion protection of the power line after screwing Terminals, we recommend an injection with one-component silicone (or neutral glass, plastic, or with waterproof grease), covering bare copper wire power cord for protection
  • Do not touch live wire
  • Recommend switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

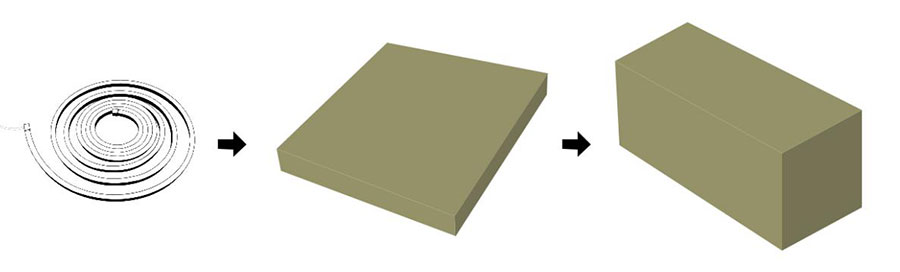

Packaging diagram:
Neon Flex LED Lighting
Packaging instructions:
  • Carton package, box size:250*350mm
  • Carton outer size:457*337*320mm
  • Each box contains 50 bags, total 50PCS
  • Net Weight(NW)6.5(1±10%)kg
  • Gross Weight(GW):8.7(1±10%)kg
  • Note: The above package quantity and weight of packaging is only for illustration.

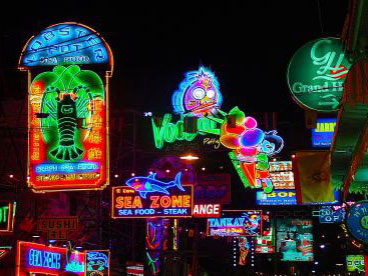

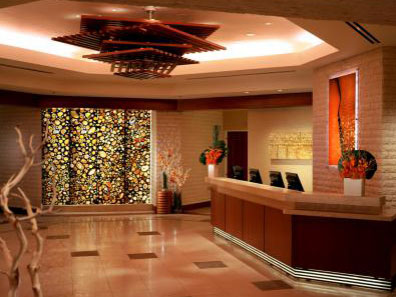

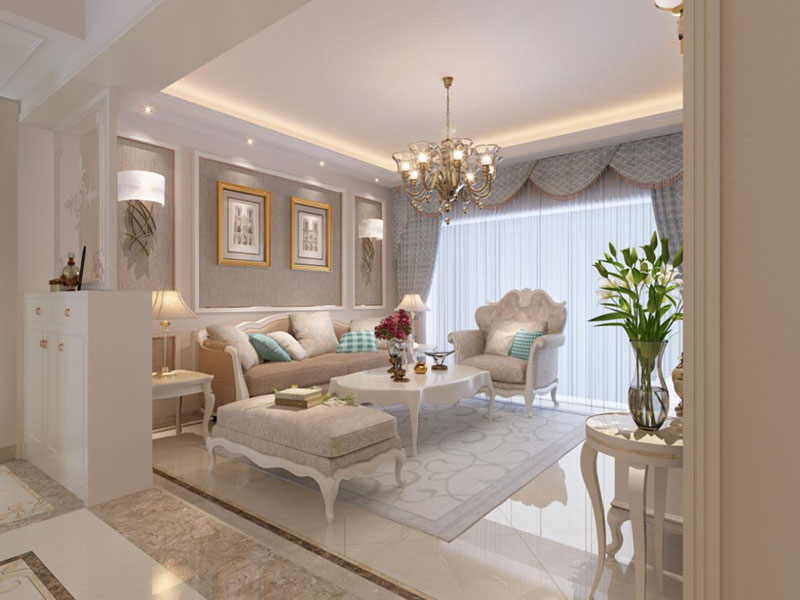

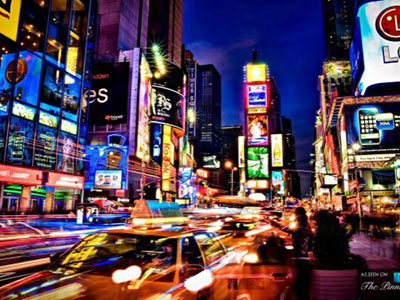

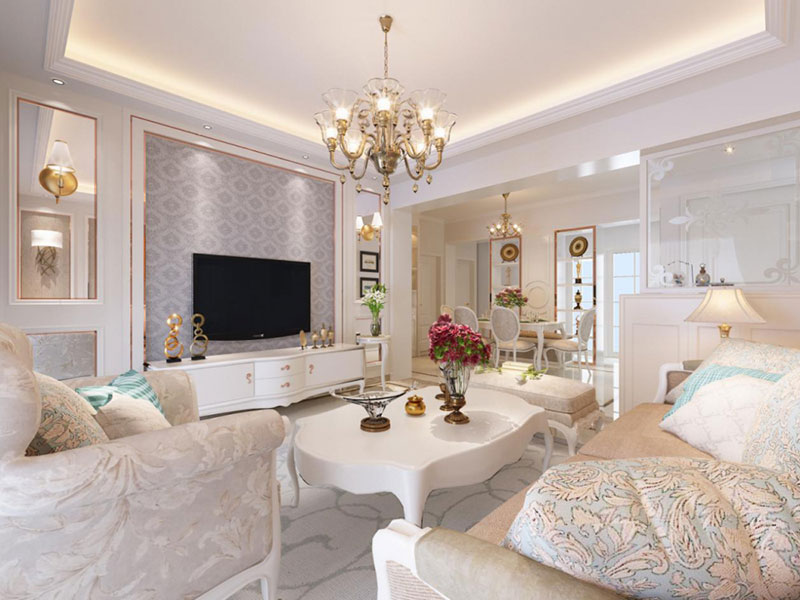

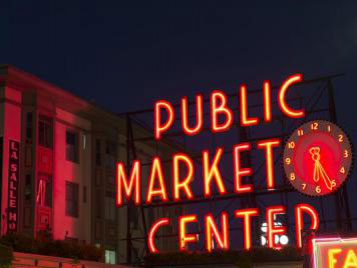

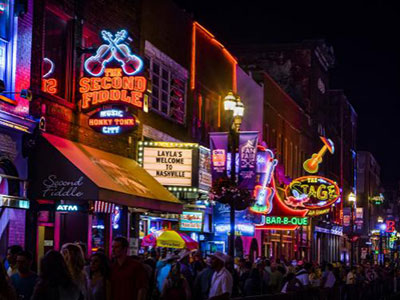

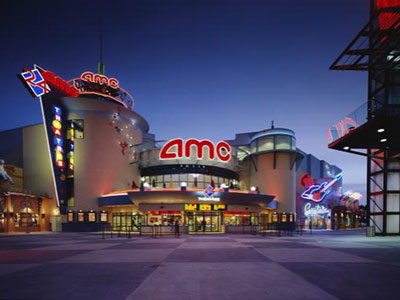

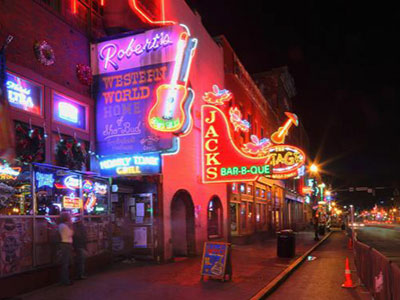

Examples of applications:
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting
  • Neon Flex LED Lighting

Here at Sunlite, we are experts in professional LED lighting solutions. We provide you with indoor/outdoor lighting solutions for advertising, decoration, and general lighting projects. All of our products can be customized to best suit your needs. Some of our most commonly applied products include LED strip lights, LED modules, LED power suppliers, and other LED accessories. Contact us today to learn more about how we can help you meet all your lighting requirements.

Tags
LED Lighting Fixtures Light Fixtures LED Lighting Services LED Outdoor Lighting LED Lighting Products LED Light Manufacturer LED Light Factory LED Integrated Solution Outdoor Light Strips Custom Lighting LED Landscape Lighting Tape Lighting Manufacturer Flexible LED Strip Lights
Other Products
Other Products
    1. LED Neon Flex (Extrusions)
    2. LED Neon Flex (Extrusions)
    1. 10W CCT LED Tape
    2. 10W CCT LED Tape

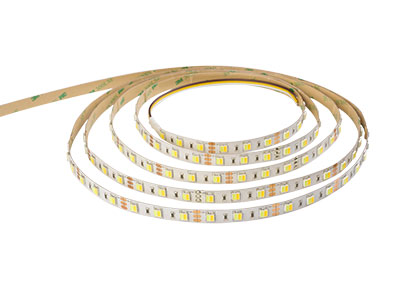

    1. 9.6W CCT LED Tape
    2. 9.6W CCT LED Tape

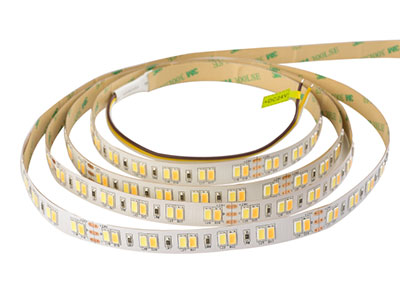

    1. 28.8W CCT LED Tape
