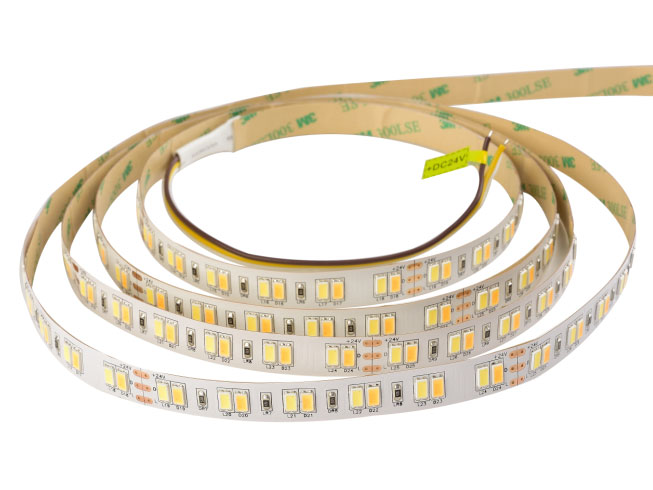

28.8W CCT LED Tape

28.8W CCT LED Tape
28.8W CCT LED Tape 28.8W CCT LED Tape 28.8W CCT LED Tape 28.8W CCT LED Tape
  • Watts: 28.8W/M
  • Lumens: 4600lm /led
  • LED: 120 x 5630 SMD
  • Voltage: 24V
  • Application: Feature
Inquiry
Features:
  • Various color temperatures are optional, including 2400K / 2700K / 3000K/ 4000K / 6000K
  • 5630high bright LED brand (single led 30-35lm)
  • Double layer copper FPC (2OZthickness), high quality resistance, preventing LED chip brekage
  • DC12V/24Vinput, safe and stable,2 year warranty
  • The range of color temperature is 2850K-6500KCCT
  • 6-LEDs as a unit and can be cut to different lengths
  • Original imported 3M adhesive, easy installation
Installation method:

Remoe the protective 3M adhesive tape from the back of the LED strip during installation, then attach the LED strip to the desired location.

Applications:

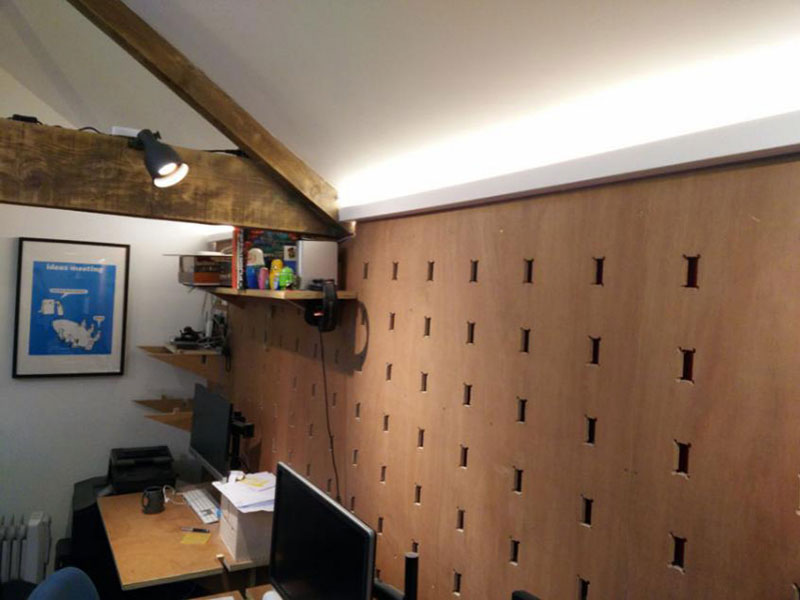

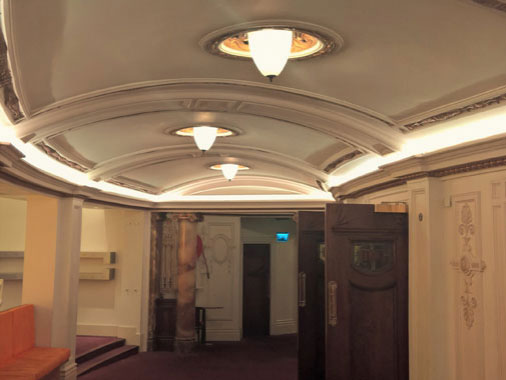

Suitable for indoor and outdoor characteristic lighting such as niches, grooves, bases, signs, hotels, bars, and kitchens.

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color temperature(K) Luminous flux(lm /led) Color rendering index R(CRI) Dimension(length*width*height mm) IP rating (modules)
SL-LR-5630WW600CCT-24 SMD 5630 28.8 120 24 PW 6000K / 4600 80+ 5000*12*1.4 IP20 / IP64 / IP65 / IP68
NW 4000K/ WW 2400-3000K

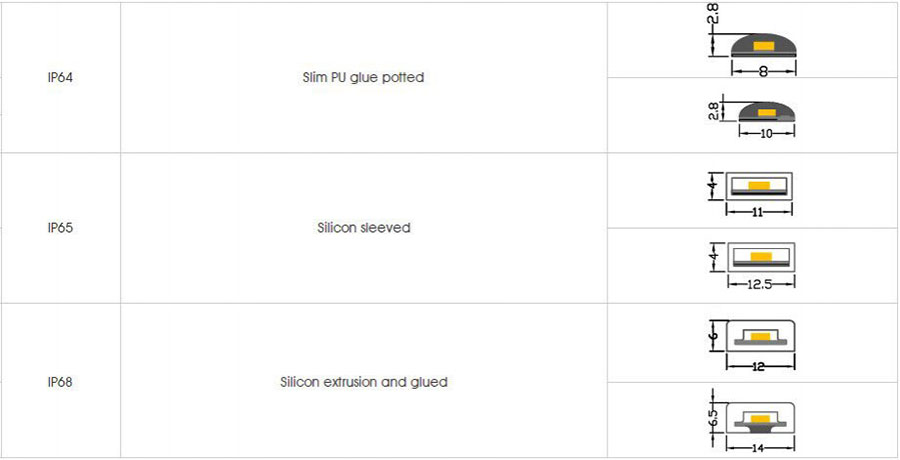

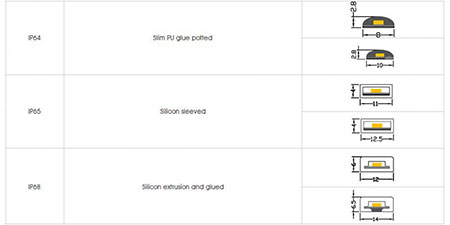

Protection level:
28.8W CCT LED Tape

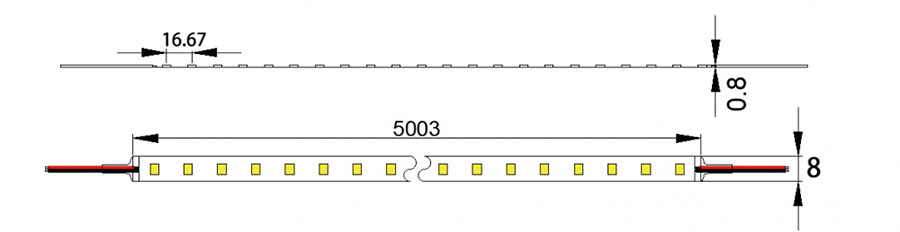

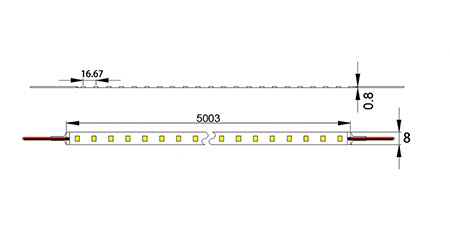

Dimension (Unit:mm [in]):
28.8W CCT LED Tape
Installation diagram:
  • 28.8W CCT LED Tape

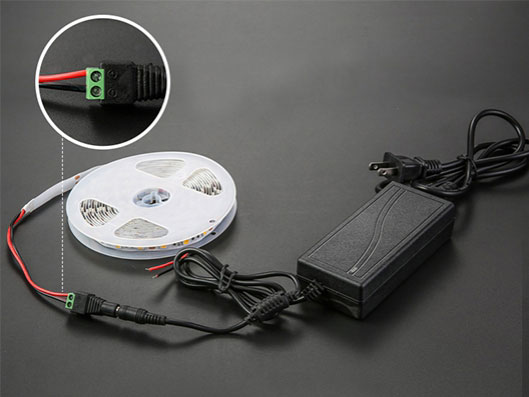

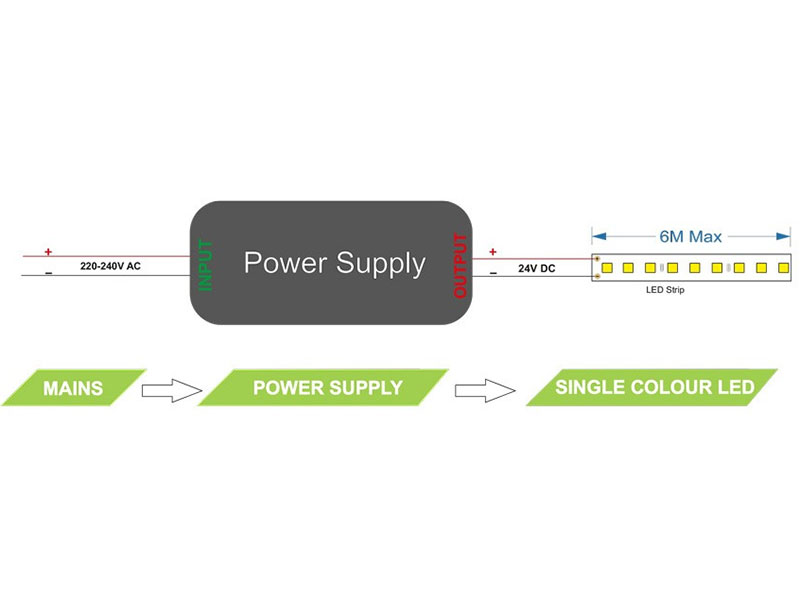

    Power connect single strip
  • 28.8W CCT LED Tape

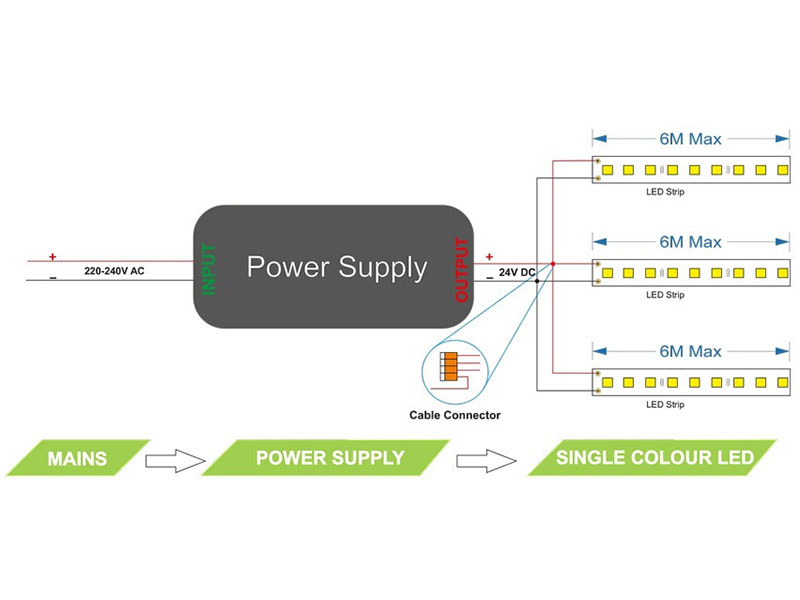

    Power connect multiple strips
  • 28.8W CCT LED Tape

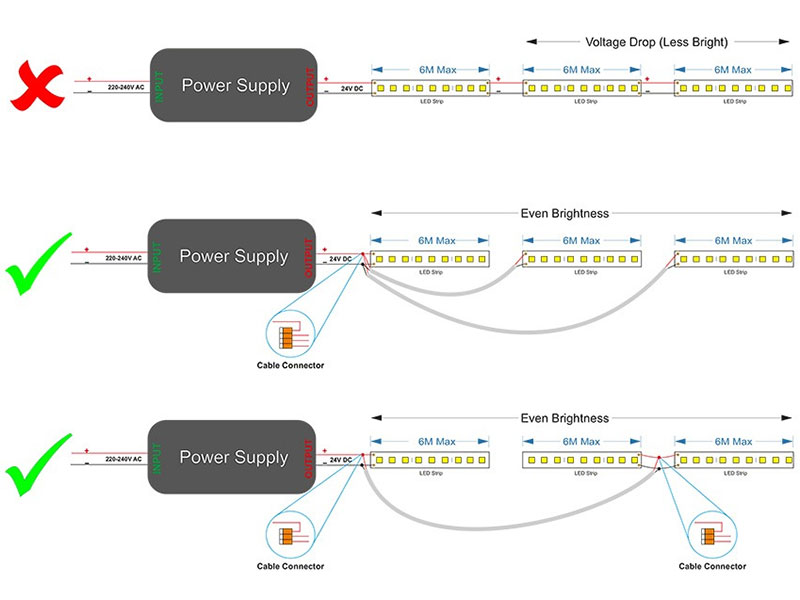

    Recommend and not recommend connect method

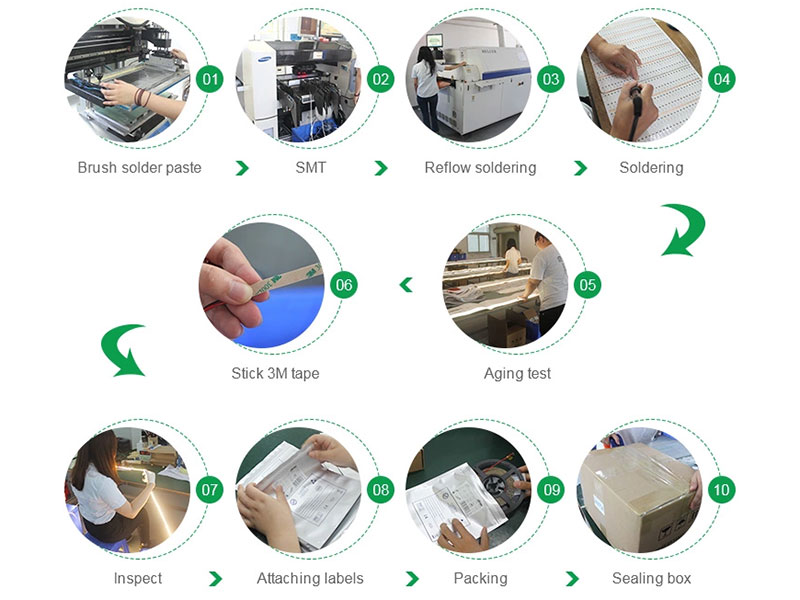

Manufacturing process:
28.8W CCT LED Tape

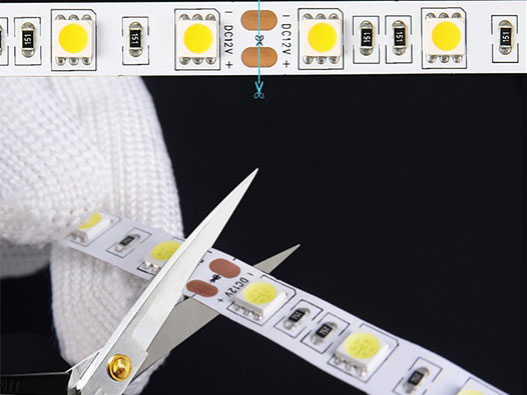

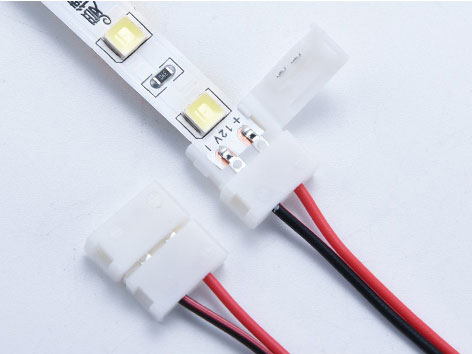

Instructions for cutting, welding, pasting and joining:
  • 28.8W CCT LED Tape
  • 28.8W CCT LED Tape
  • 28.8W CCT LED Tape
  • 28.8W CCT LED Tape
Safety precautions:
  • The CCT LED tape can only be used after removing the package. Before use, please confirm whether the product was damaged during transportation. If it was, it should not be installed or used.
  • Please select a suitable power supply for use and check the voltage range before use.
  • The best working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
  • The product should be installed in a location with an excellent ventilation and heat dissipation. It is not recommended for installation in a sealed space as that will affect the heat dissipation.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Please pay attention to the protection of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid shining it directly into your eyes during use.
  • Please refer to the product parameters and instructions for use.

Here at Sunlite, we are experts in professional LED lighting solutions. We provide you with indoor/outdoor lighting solutions for advertising, decoration, and general lighting projects. All of our products can be customized to best suit your needs. Some of our most commonly applied products include LED strip lights, LED modules, LED power suppliers, and other LED accessories. Contact us today to learn more about how we can help you meet all your lighting requirements.
