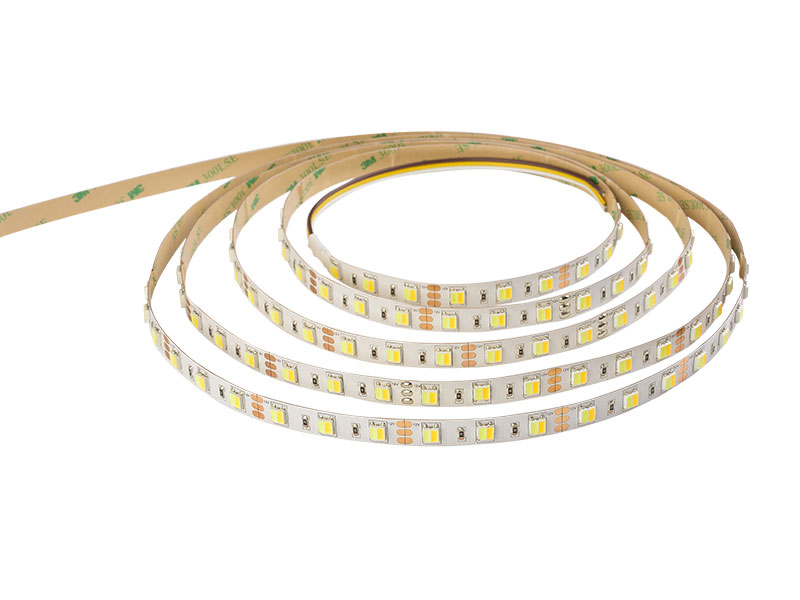

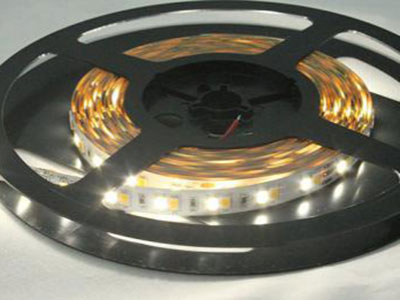

9.6W CCT LED Tape

• Watts: 9.6W/M
• Lumens: 1250lm /led
• LED: 60 x 5050 SMD
• Voltage: 12V
• Application: Feature

Inquiry

• Various color temperatures are optional, including 2400K / 2700K / 3000K/ 4000K / 6000K
• 5050 high bright LED brand (SANAN/ Wafer chip，single led 22-24lm)，large-scale chip lamp beads LED(8×15ML)
• Double layer copper FPC (2OZthickness)，high quality resistance，preventing LED chip breakage.

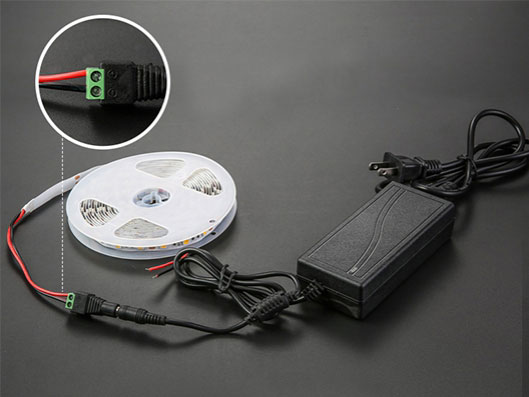

• DC12V input, safe and stable，2 years warranty

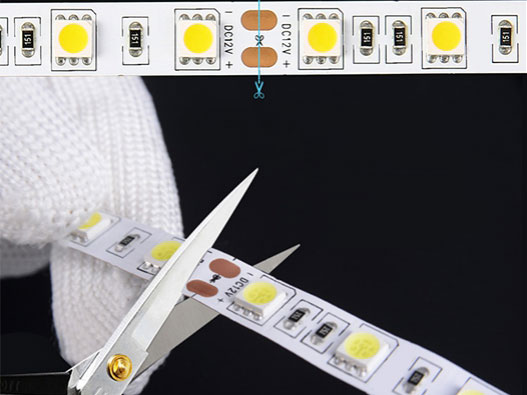

• 3-led as a unit and can be cut by different length.

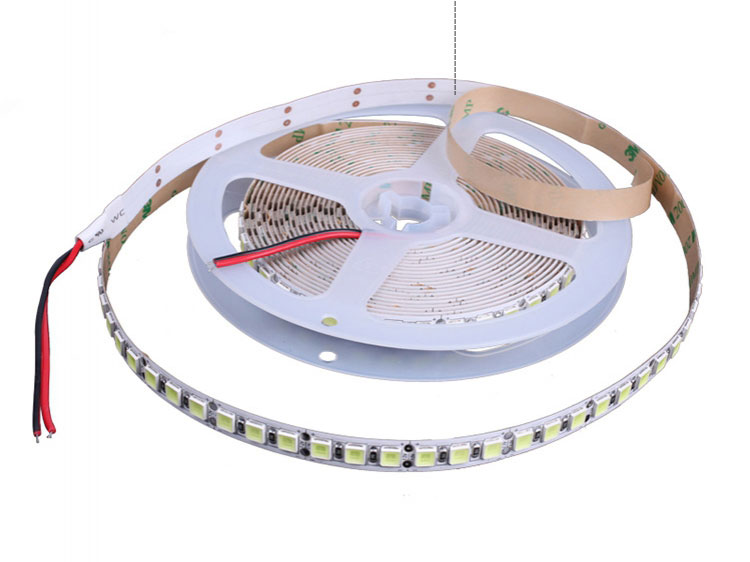

• Original imported 3M adhesive, easy for installation

Taking off the protective 3M adhesive tape on the back of the LED strip during installation, then attach it to the desired location.

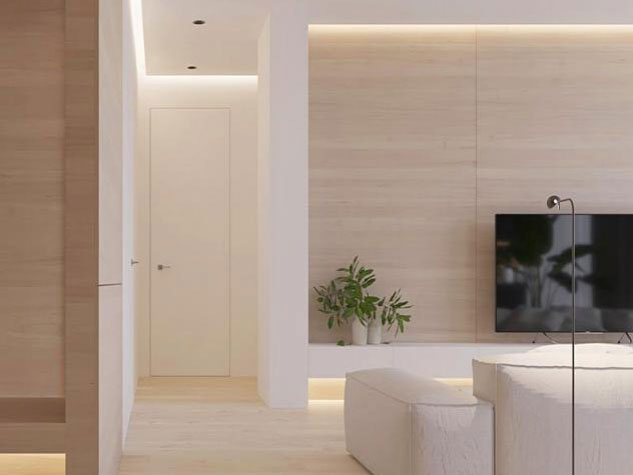

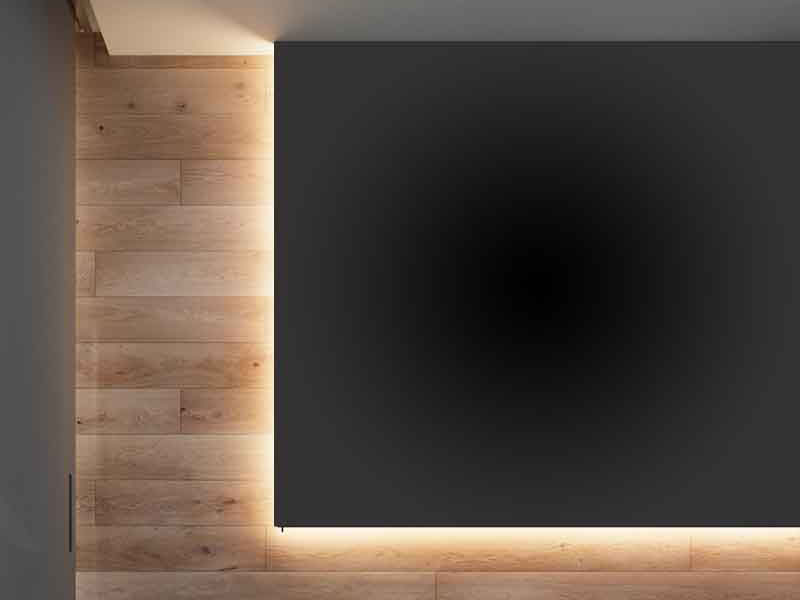

Suitable for indoor and outdoor characteristic lighting such as niches, grooves, bases, signs, hotels, bars and kitchens

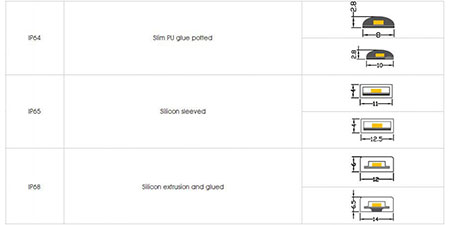

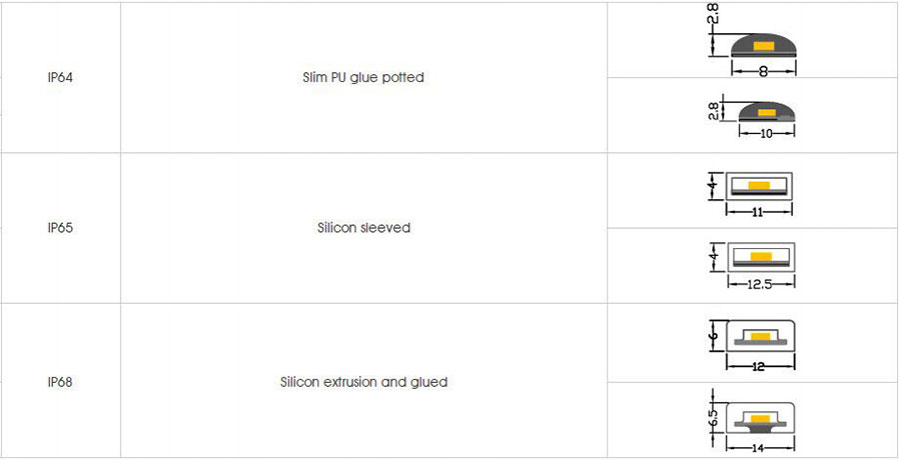

Protection level:

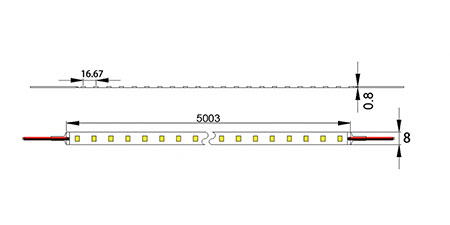

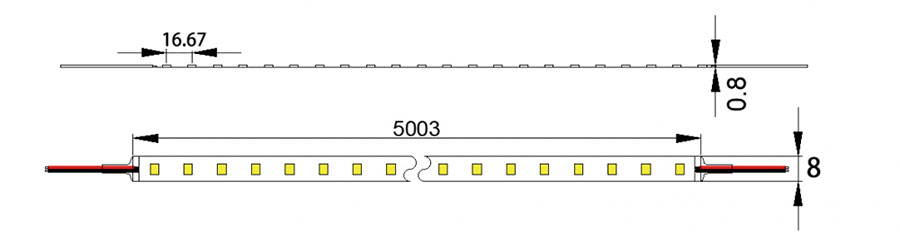

Dimension (Unit：mm [in]):

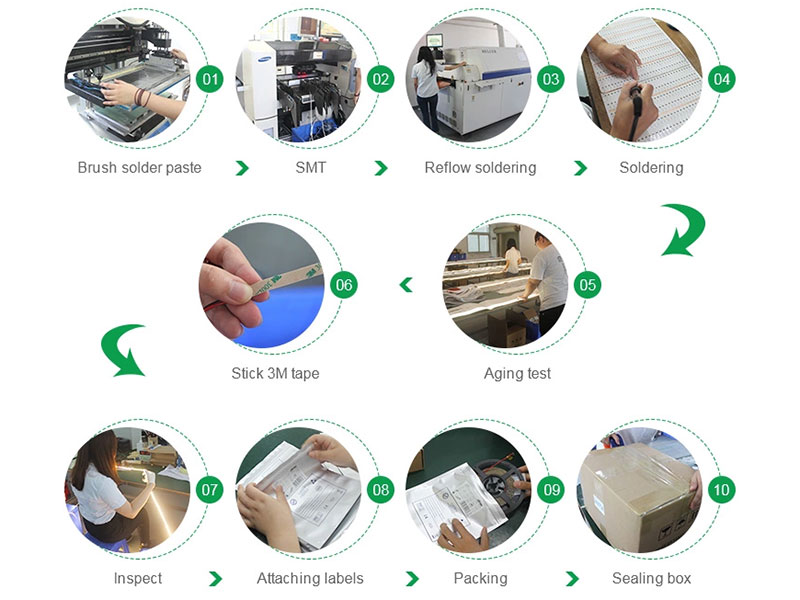

Manufacturing process:

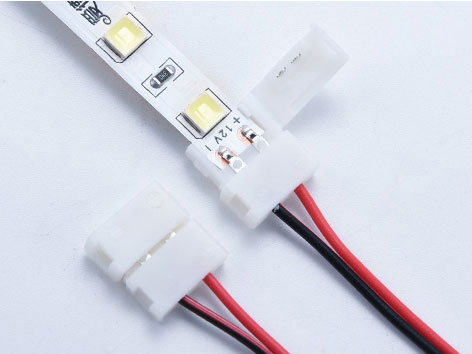

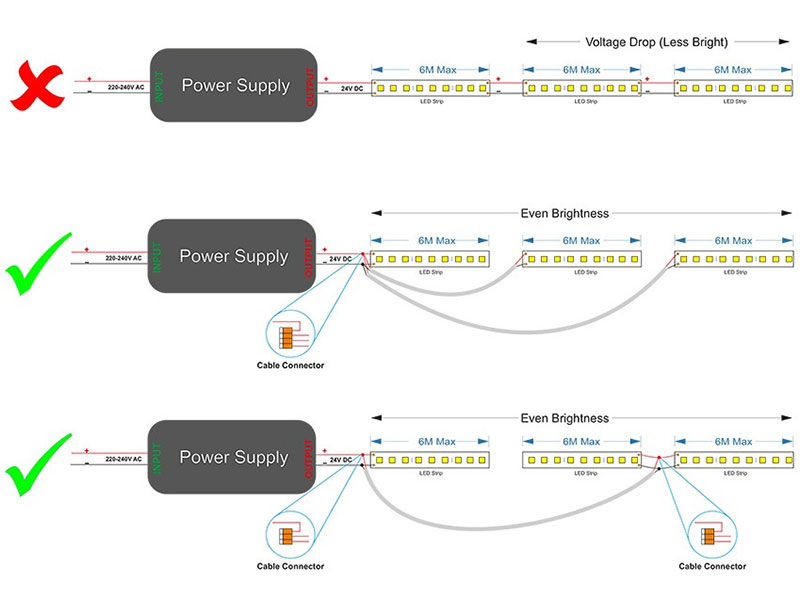

Instructions for cutting, welding, pasting and joining:

•

•

•

•

• The CCT LED tape can only be used after removing the package. Before use, please confirm whether the product was damaged during transportation. If it was, it should not be installed or used.

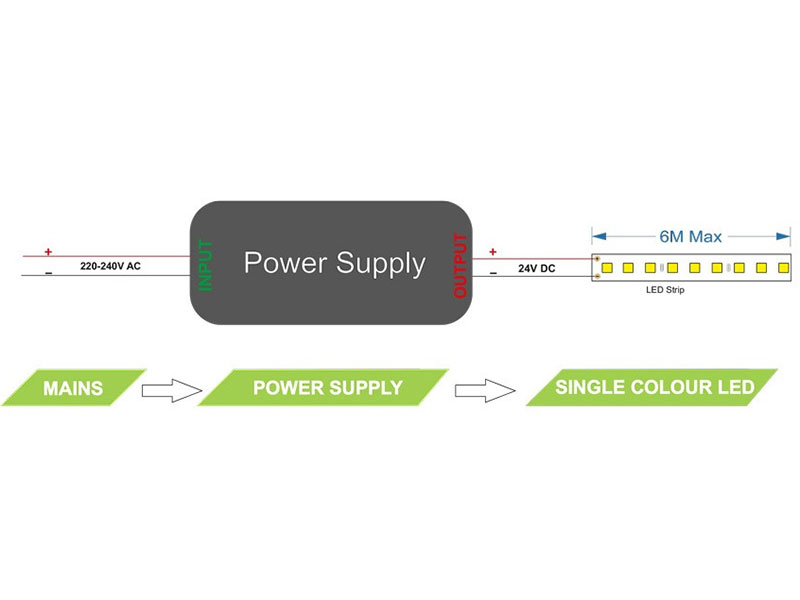

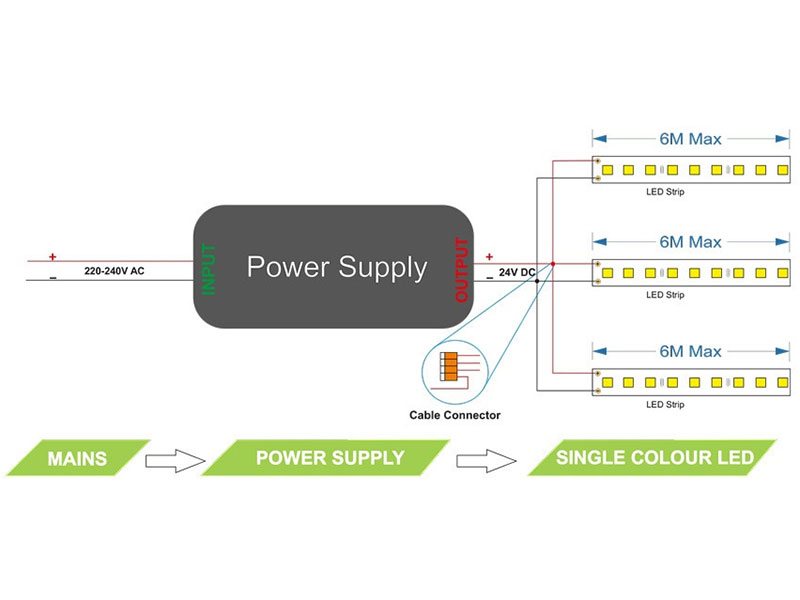

• Please select a suitable power supply for use and check the voltage range before use.
• The best working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
• The product should be installed in a location with an excellent ventilation and heat dissipation. It is not recommended for installation in a sealed space as that will affect the heat dissipation.
• Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
• Please pay attention to the protection of static electricity during installation and use.
• The product can be used indoors or outdoors according to its IP rating.
• Avoid shining it directly into your eyes during use.
• Please refer to the product parameters and instructions for use.
