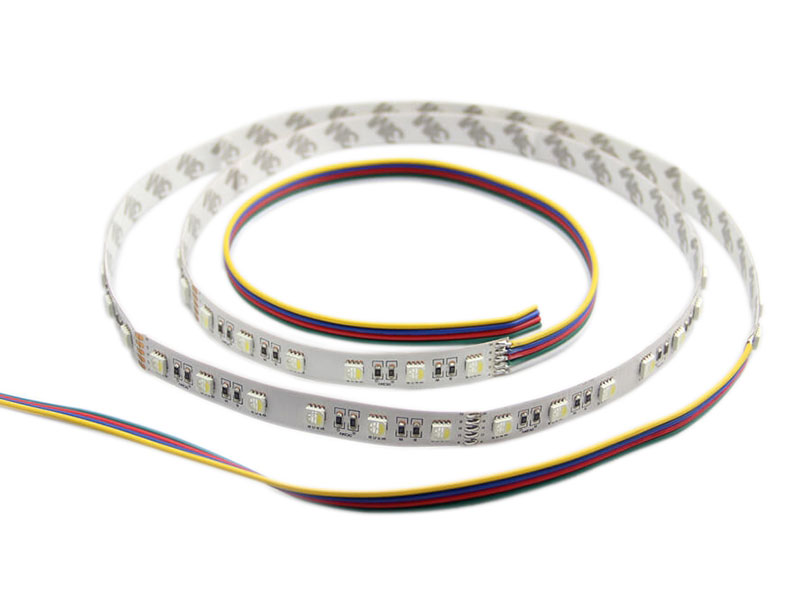

SMD5050RGBW LED Strip Lights (23W)

SMD5050RGBW LED Strip Lights (23W)
SMD5050RGBW LED Strip Lights (23W) SMD5050RGBW LED Strip Lights (23W) SMD5050RGBW LED Strip Lights (23W) SMD5050RGBW LED Strip Lights (23W)
  • Colour temperature: (W optional PW6000K, NW 4000K, WW 3000K)
Inquiry
Features:
  • RGBW 4 in 1 high brightness 5050 LED (Sanan/Epistar chip), large area LED chips (9×12ML)
  • Double-side flexible PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
  • 24V low voltage, safe and stable with a 2 year warranty
  • White PCB coating for high temperature environments to protect the PCB board and prevent short circuiting
  • 6-LED units that can be cut to different lengths to meet various customer needs 6. Red temperature-resistant thermally conductive double-sided tape for firmer adhesion
  • The multi-color light source has better light mixing effects
Installation method:

Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.

Applications:

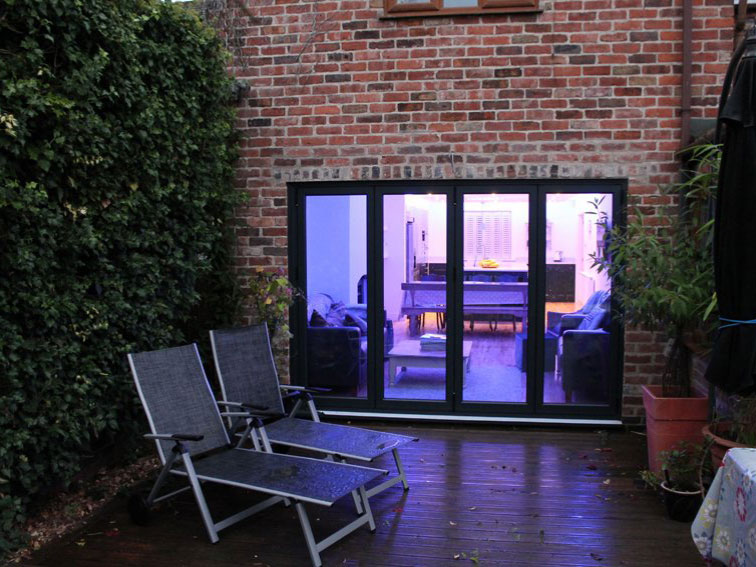

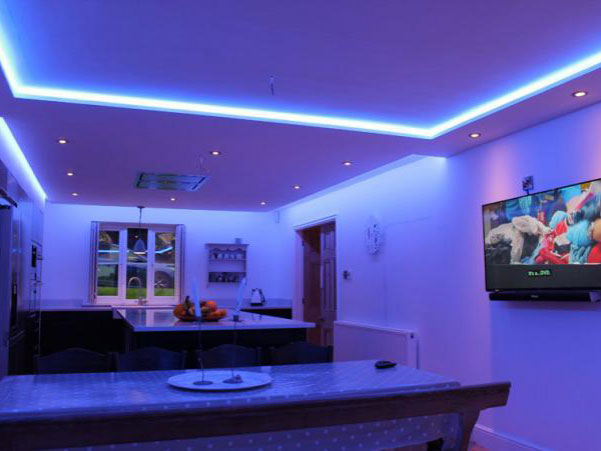

Suitable for indoor and outdoor lighting such as niches, grooves, bases, signs, hotels, bars and kitchens

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color temperature(K) Luminous flux(lm /led) Color rendering index R(CRI) Dimension IP rating (modules)
(length*width*height mm)
SL-LR-5050-RGBW4C-420 5050 RGBW 23 84 24 WPW6000K 2016 80+ 5000*12*2.1 IP20 / IP64 / IP65 / IP68
NW 4000K WW 3000K

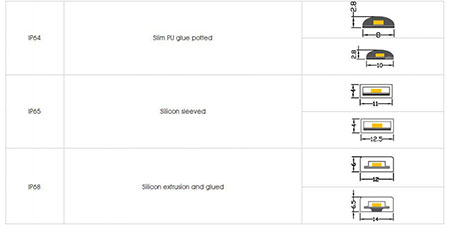

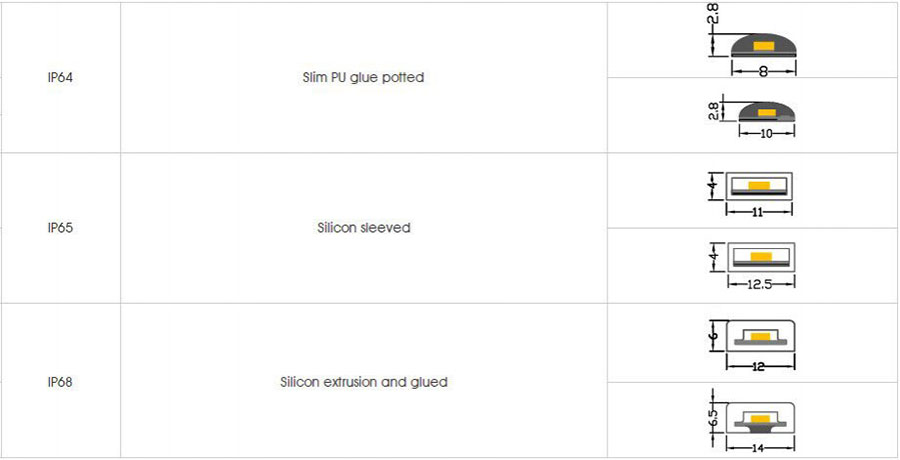

Protection level:
SMD5050RGBW LED Strip Lights (23W)

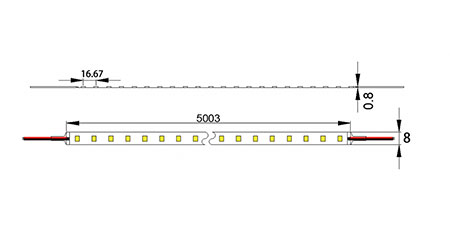

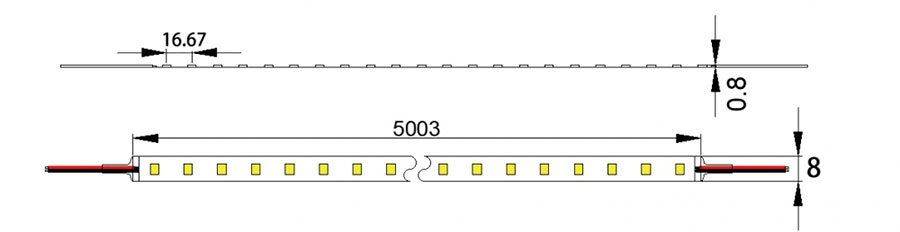

Dimension (Unit:mm [in]):
SMD5050RGBW LED Strip Lights (23W)
Installation diagram:
  • SMD5050RGBW LED Strip Lights (23W)

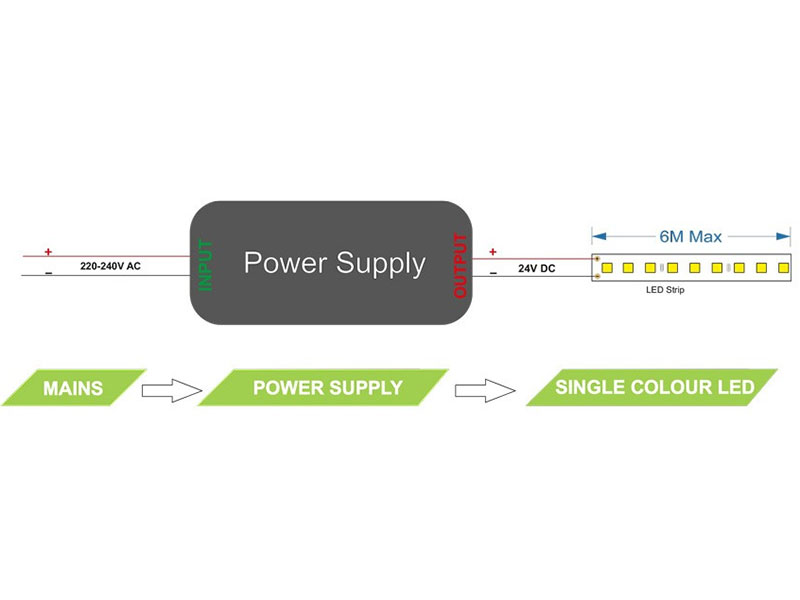

    Power connect single strip
  • SMD5050RGBW LED Strip Lights (23W)

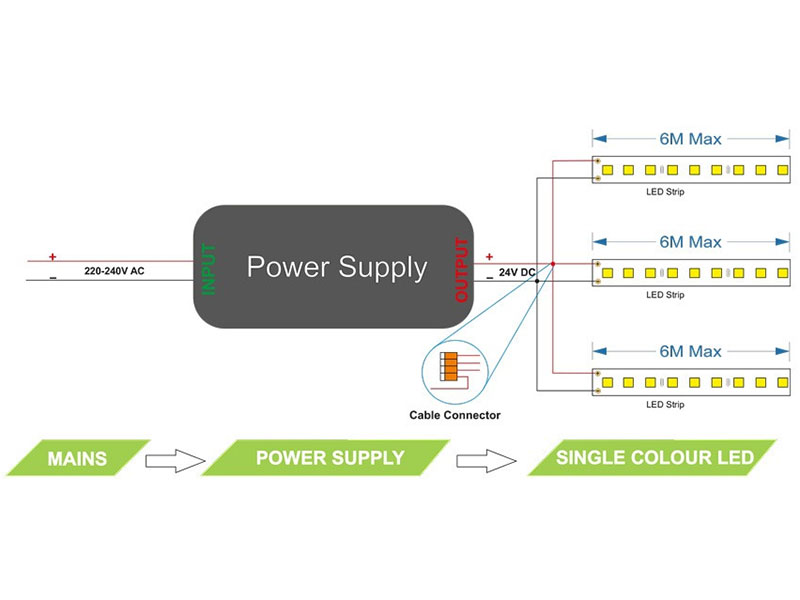

    Power connect multiple strips
  • SMD5050RGBW LED Strip Lights (23W)

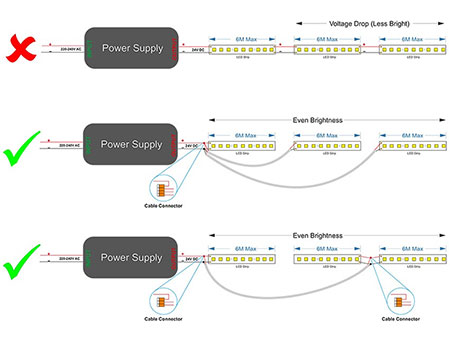

    Recommended and not recommended connection method

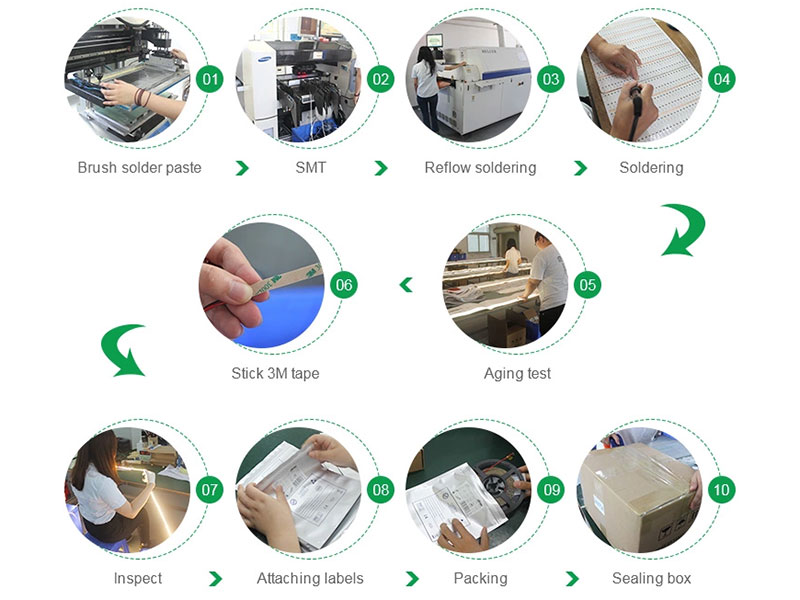

Manufacturing process:
SMD5050RGBW LED Strip Lights (23W)

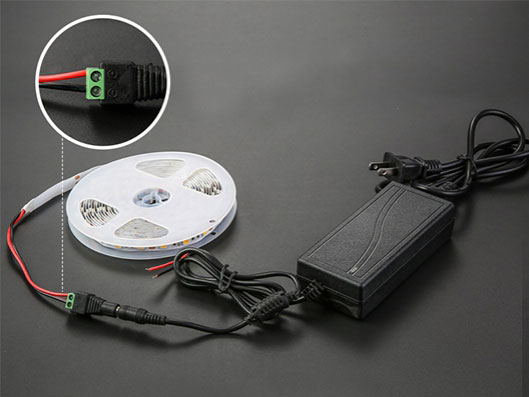

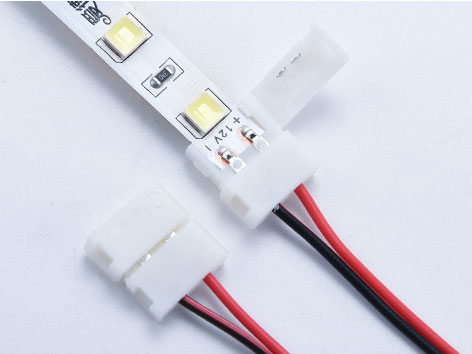

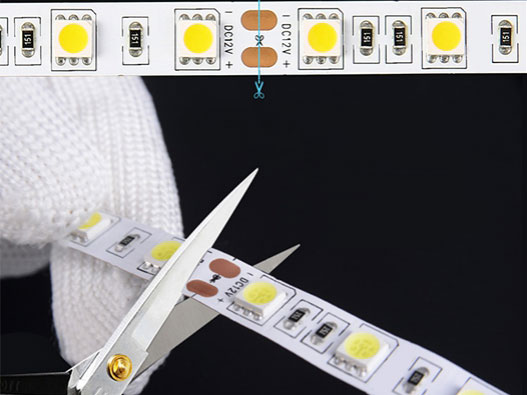

Instructions for cutting, welding, pasting and joining:
  • SMD5050RGBW LED Strip Lights (23W)
  • SMD5050RGBW LED Strip Lights (23W)
  • SMD5050RGBW LED Strip Lights (23W)
Safety precautions:
  • The RGB LED can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
  • Please select a suitable power supply and check the voltage range before use.
  • The optimal working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
  • The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Pay attention avoid the discharging of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid looking directly at the luminous body during use.
  • Please adhere to the product parameters and instructions for use.
