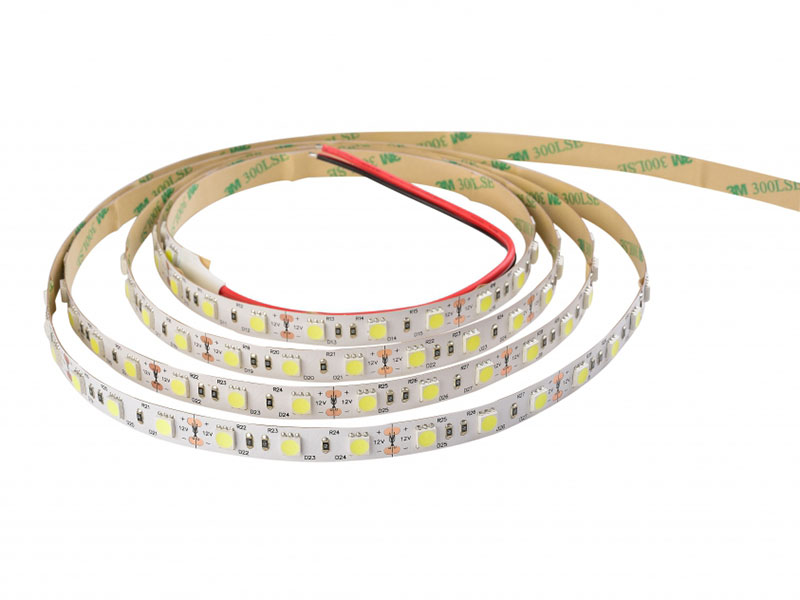

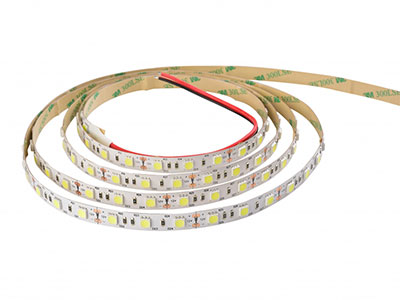

SMD5050 LED Strip Lights (14.4W)

SMD5050 LED Strip Lights (14.4W)
SMD5050 LED Strip Lights (14.4W) SMD5050 LED Strip Lights (14.4W) SMD5050 LED Strip Lights (14.4W)
  • Watts: 14.4W/M
  • LED: 60 x 5050 SMD
  • Voltage: 12V
  • Application: Feature
Inquiry
Features:
  • Various colors are optional, including red, green, blue, and amber
  • High brightness 5050 LED (Sanan/Epistar chip), large area LED chips (9×12ML)
  • Double-sided flexibility PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
  • DC12V/24V low voltage for safety and stability with a 2-year warranty
  • White PCB coating for a high temperature environment to protect the PCB board and prevent short circuits
  • 3-LED/6-LED units that can be cut to different lengths to meet the various needs of customers
  • Original imported 3M adhesive makes it easy to install
Installation method:

Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.

Applications:

Suitable for indoor and outdoor lighting such as niches, grooves, bases, signs, hotels, bars and kitchens

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color Luminous flux(lm /led) Color rendering index R(CRI) Dimension IP rating (modules)
(length*width*height mm)
SL-LR-5050-300-12 SMD 5050 14.4 60 12 Red/green/blue/amber R=360lm 80+ 5000*10*2.1 IP20 / IP64 / IP65 / IP68
B=240lm
G=480lm
A=360lm

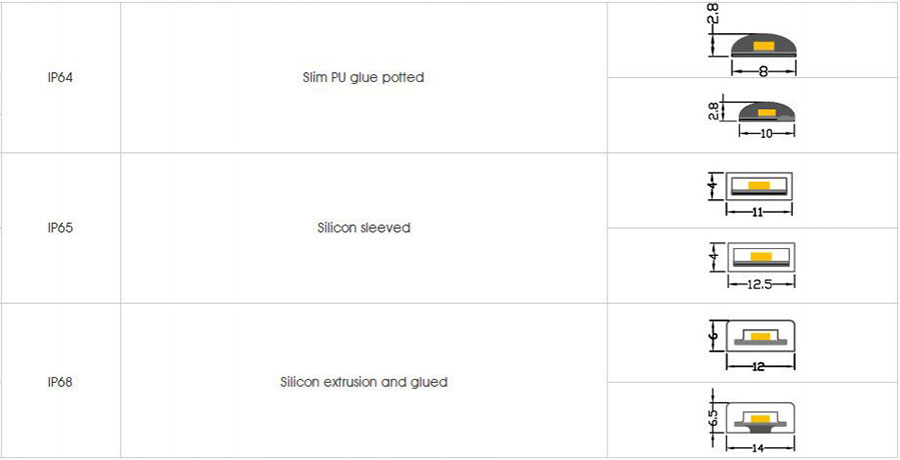

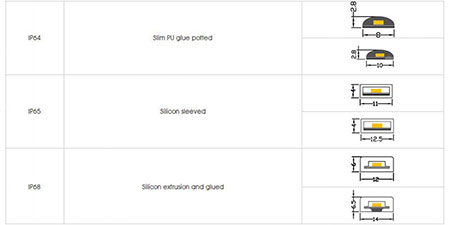

Protection level:
SMD5050 LED Strip Lights (14.4W)

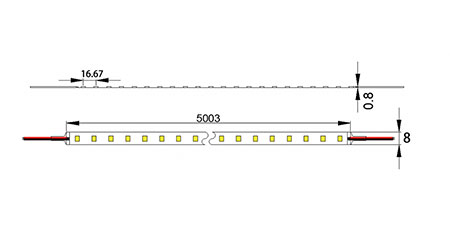

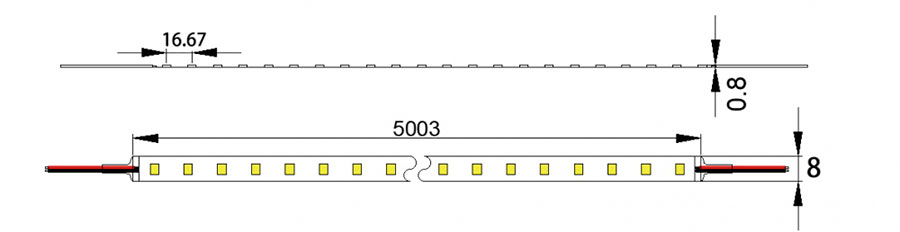

Dimension (Unit:mm [in]):
SMD5050 LED Strip Lights (14.4W)
Installation diagram:
  • SMD5050 LED Strip Lights (14.4W)

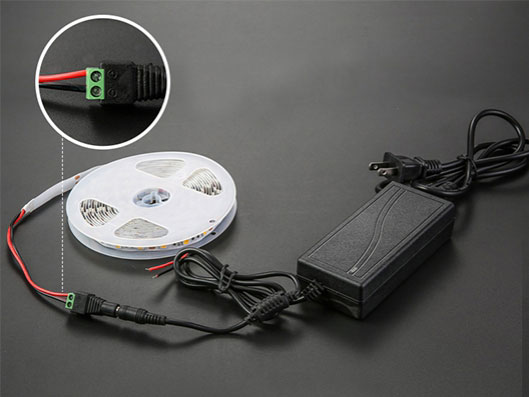

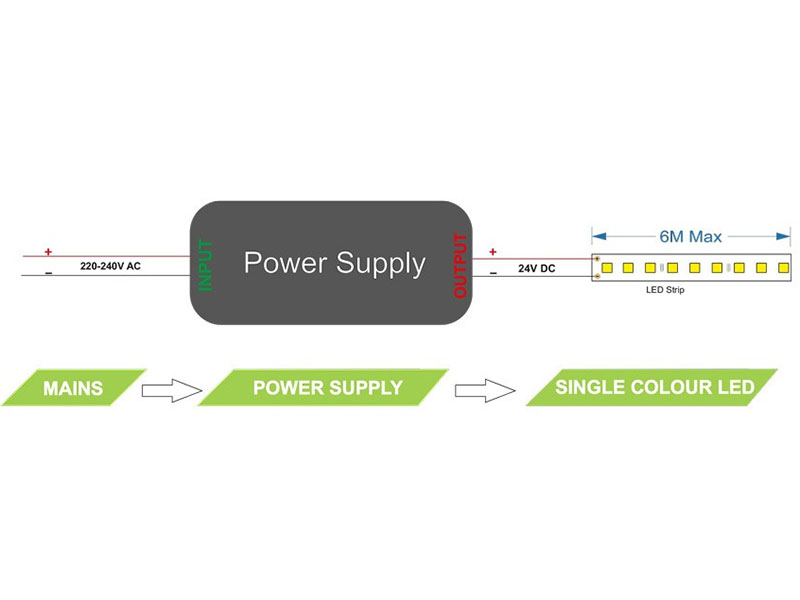

    Power connect single strip
  • SMD5050 LED Strip Lights (14.4W)

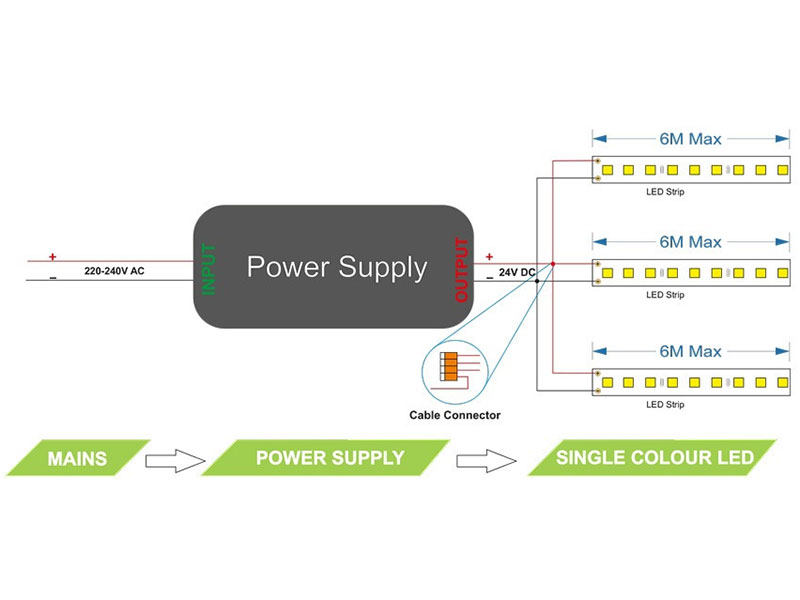

    Power connect multiple strips
  • SMD5050 LED Strip Lights (14.4W)

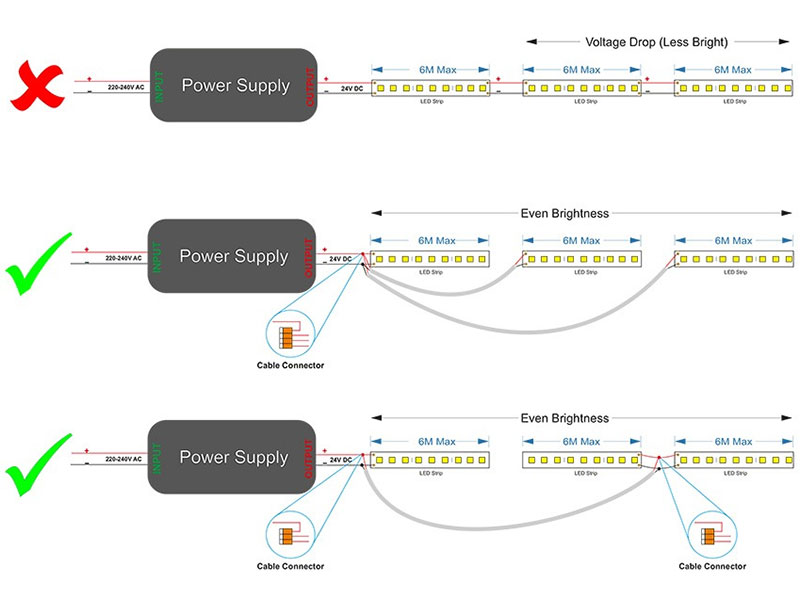

    Recommended and not recommended connection method

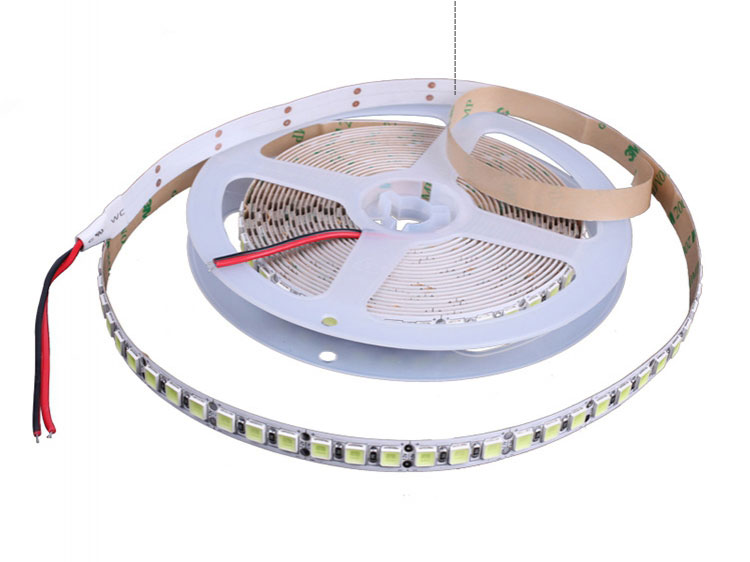

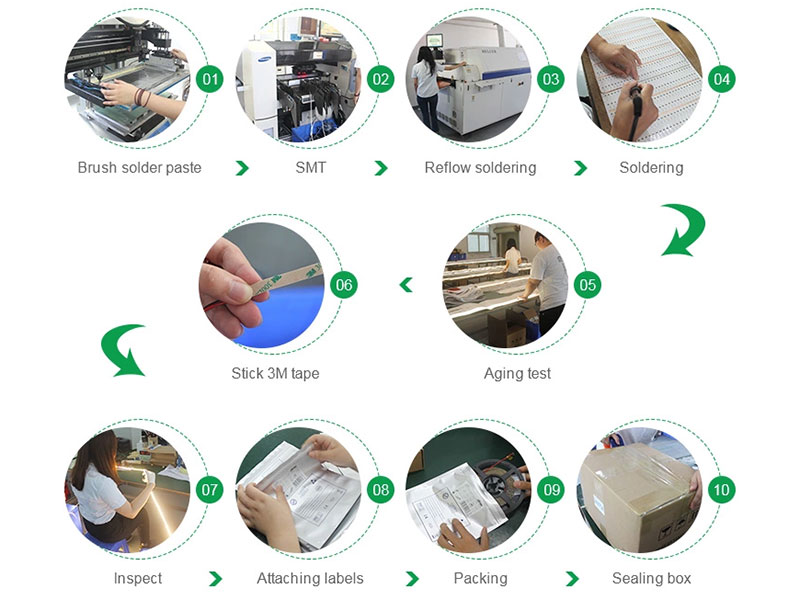

Manufacturing process:
SMD5050 LED Strip Lights (14.4W)

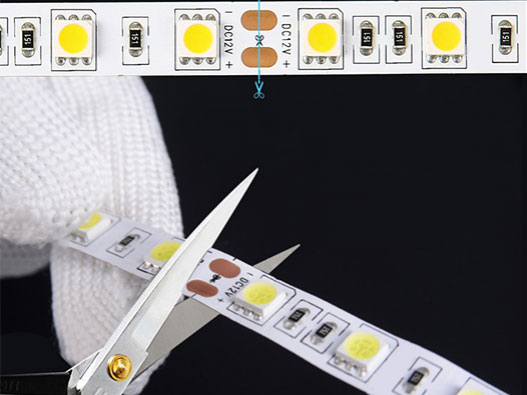

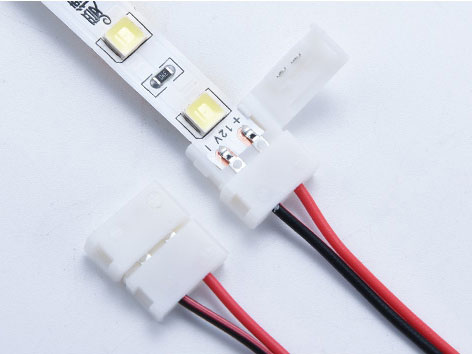

Instructions for cutting, welding, pasting and joining:
  • SMD5050 LED Strip Lights (14.4W)
  • SMD5050 LED Strip Lights (14.4W)
  • SMD5050 LED Strip Lights (14.4W)
  • SMD5050 LED Strip Lights (14.4W)
Safety precautions:
  • The single color LED tape can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
  • Please select a suitable power supply and check the voltage range before use.
  • The optimal working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
  • The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Pay attention avoid the discharging of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid looking directly at the luminous body during use.
  • Please adhere to the product parameters and instructions for use.

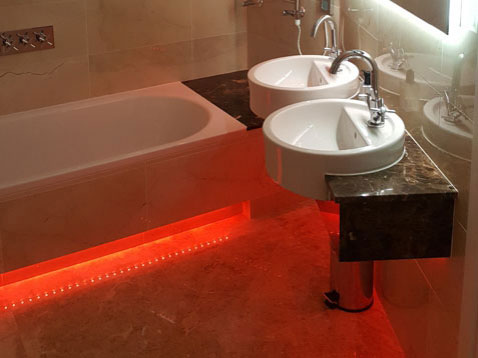

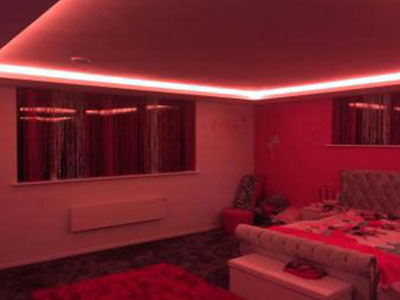

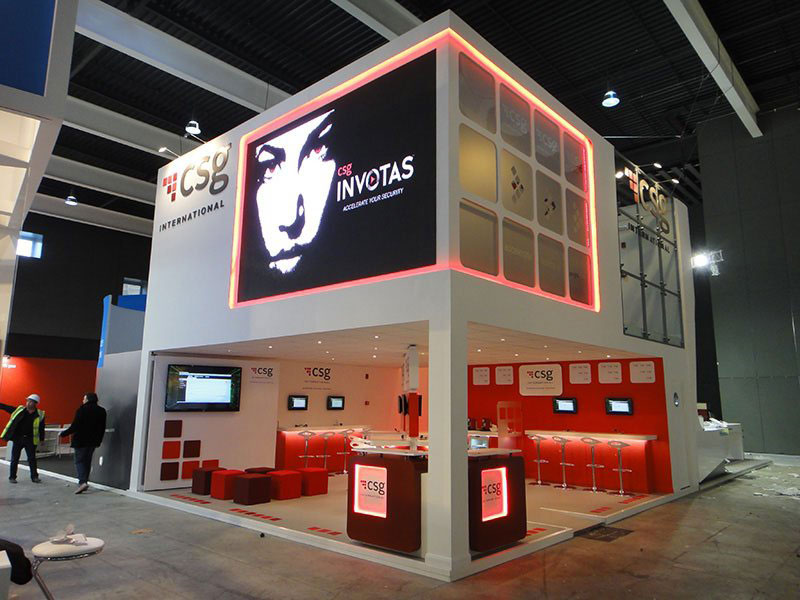

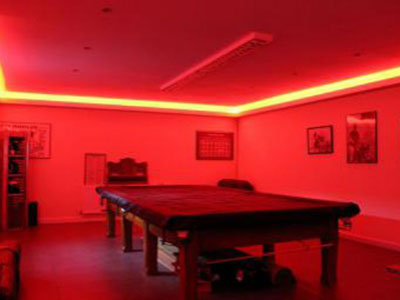

Examples of applications:
  • SMD5050 LED Strip Lights (14.4W)
  • SMD5050 LED Strip Lights (14.4W)
