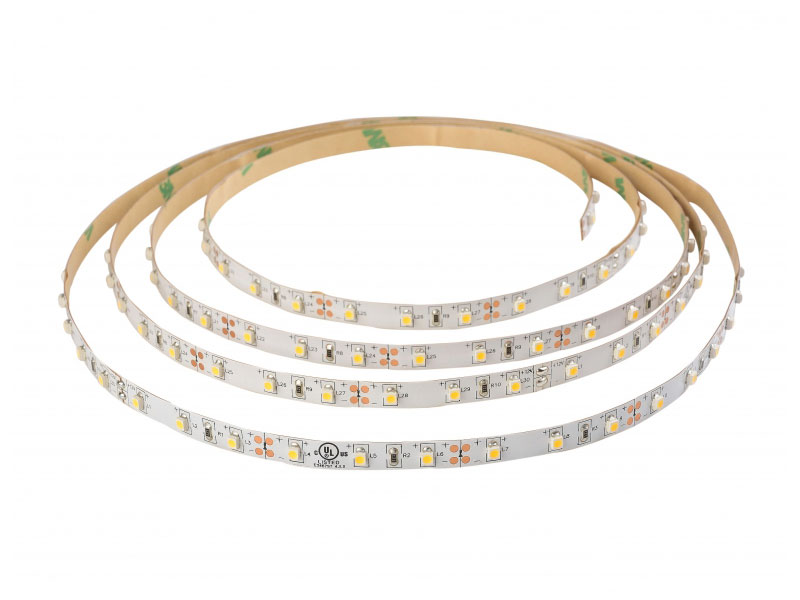

Various colors are optional, including red, green, blue, and amber
High bright 3528 LED (Sanan/Epistar chip), large area LED chips (8×15ML)
Double-sided flexibility PCB (2OZ thickness), high quality resistance to protect the LED chip from damage
DC12V/24V low voltage for safety and stability with a 2-year warranty
White PCB coating for a high temperature environment to protect the PCB board and prevent short circuits
3-LED/6-LED units that can be cut to different lengths to meet the various needs of customers
Original imported 3M adhesive makes it easy to install
Installation method:
Remove the protective sheet of the 3M adhesive tape on the back of the LED strip and stick it to the desired location.
Applications:

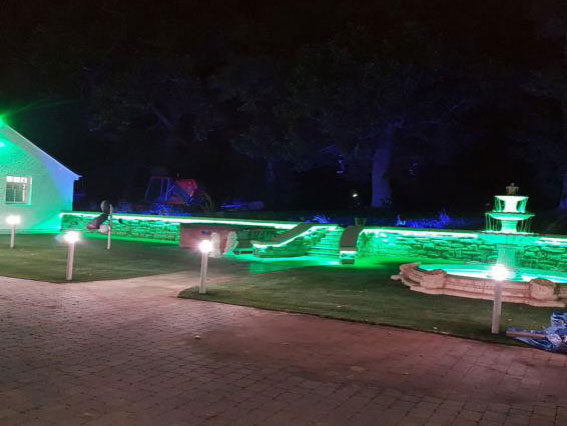

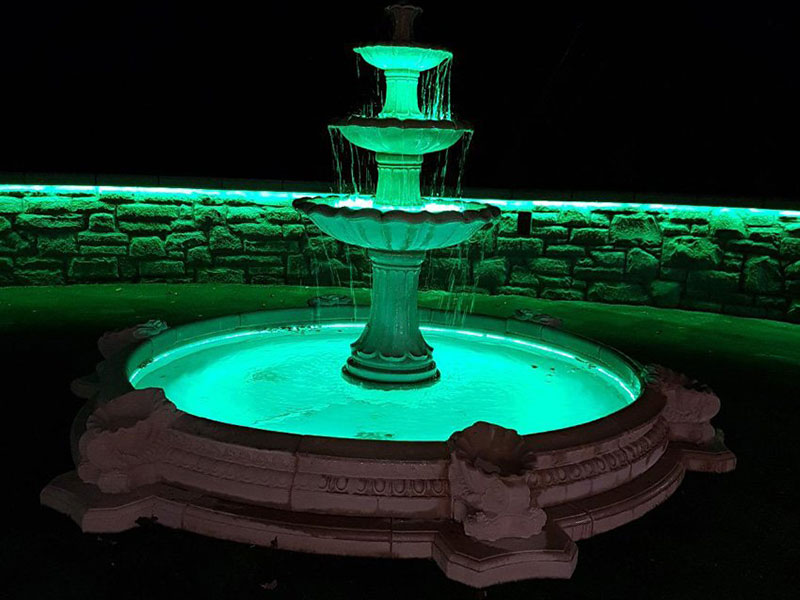

Suitable for indoor and outdoor lighting such as niches, grooves, bases, signs, hotels, bars and kitchens
Technical parameters:
Model
LED chip
Power(W/M)
Max daisy chain(led/M)
Nominal voltage( V )
Color
Luminous flux(lm /led)
Color rendering index R(CRI)
Dimension
IP rating (modules)
(length*width*height mm)
SL-LR-3528X600-24
SMD 3528
9.6
120
24
Red/green/blue/amber
R=180lm
80+
5000*8*2.35
IP20 / IP64 / IP65 / IP68
B=132lm
G=420lm
A=180lm

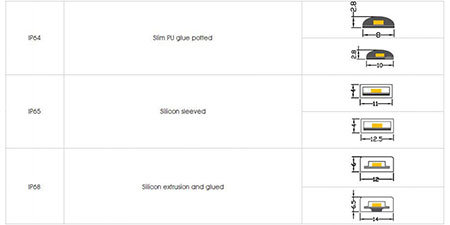

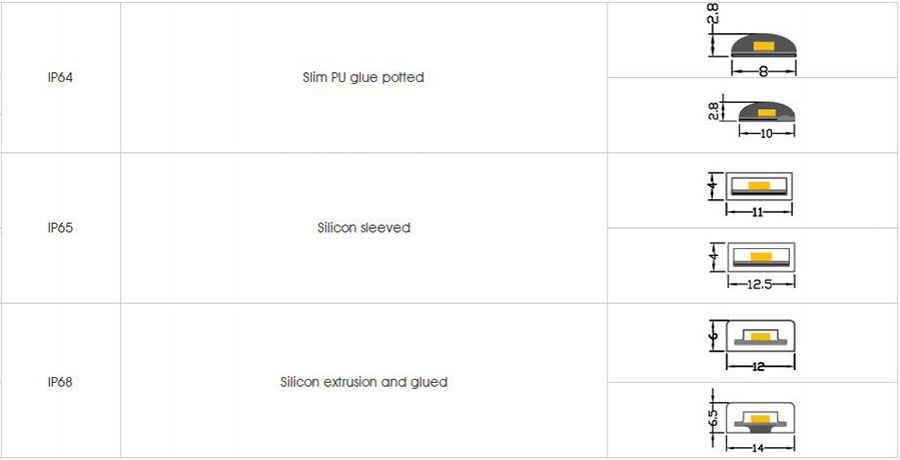

Protection level:

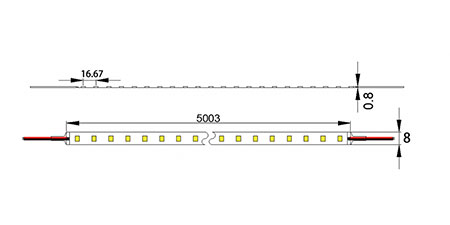

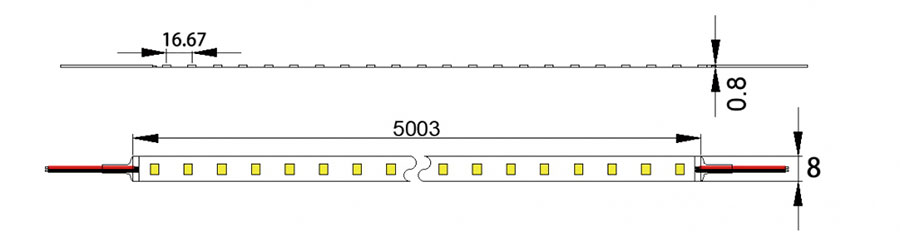

Dimension (Unit:mm [in]):
Installation diagram:

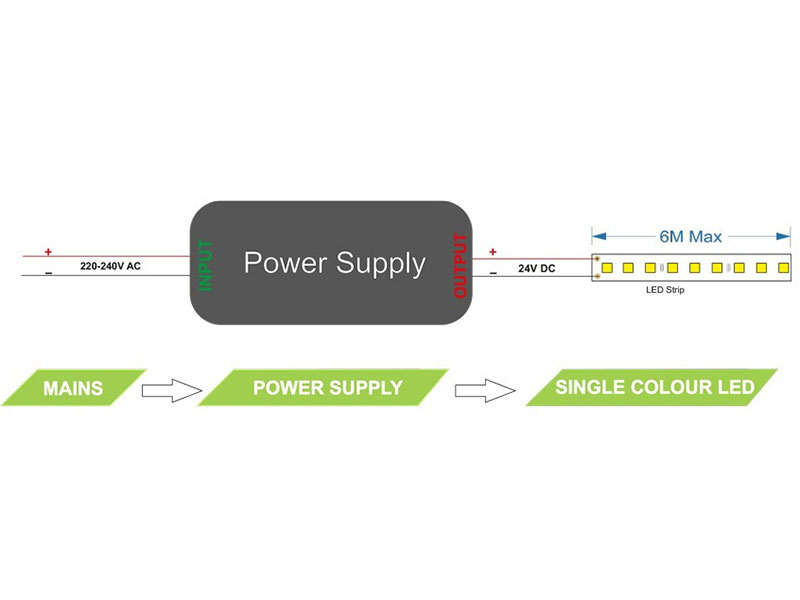

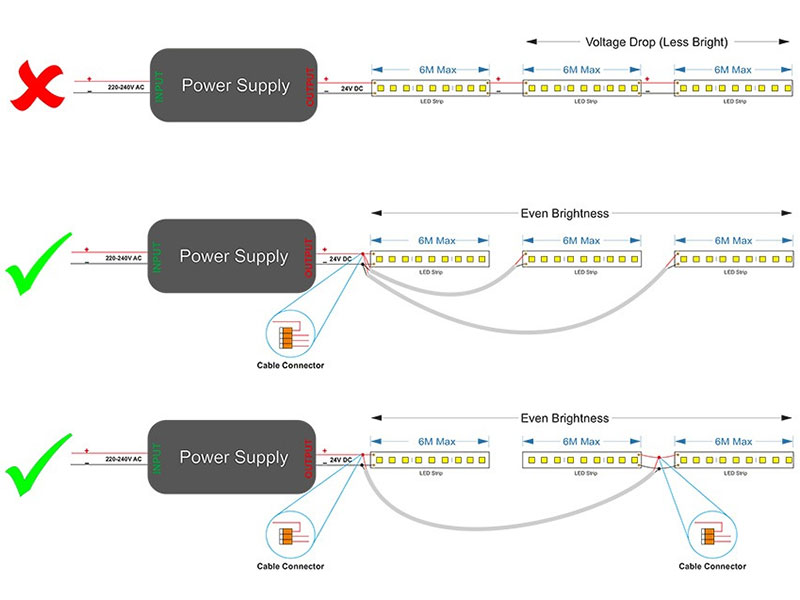

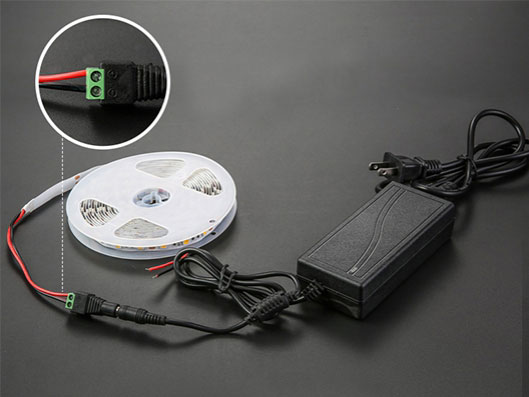

Power connect single strip

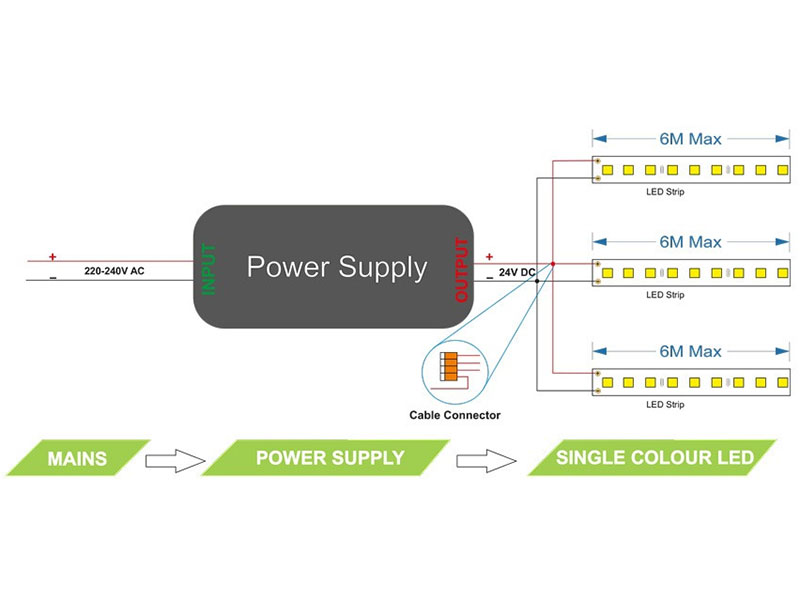

Power connect multiple strips
Recommended and not recommended connection method
Manufacturing process:

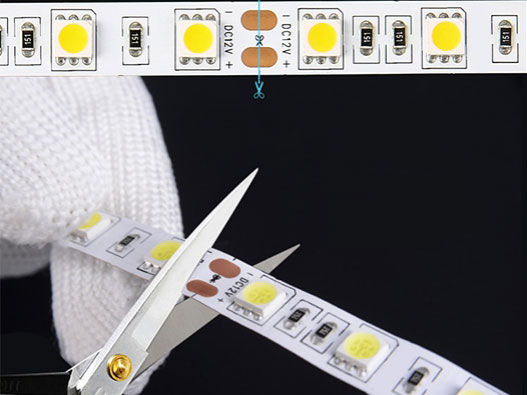

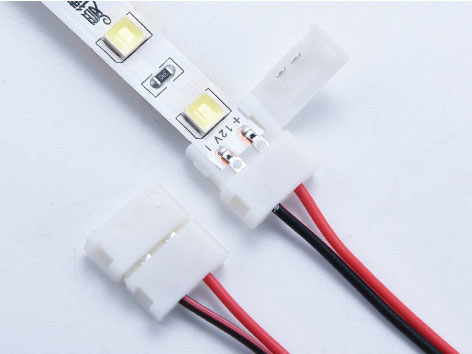

Instructions for cutting, welding, pasting and joining:
Safety precautions:
The single color LED tape can only be used after removing the packaging. Before use, please confirm that the product is free from damage. If it is damaged, it cannot be installed and used.
Please select a suitable power supply and check the voltage range before use.
The optimal working environment temperature of the product is -25°C ~ + 60°C, and the storage environment temperature is -40°C ~ + 80°C.
The product should be installed in a place with good ventilation and heat dissipation. Do not install in a sealed space.
Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
Pay attention avoid the discharging of static electricity during installation and use.
The product can be used indoors or outdoors according to its IP rating.
Avoid looking directly at the luminous body during use.
Please adhere to the product parameters and instructions for use.
