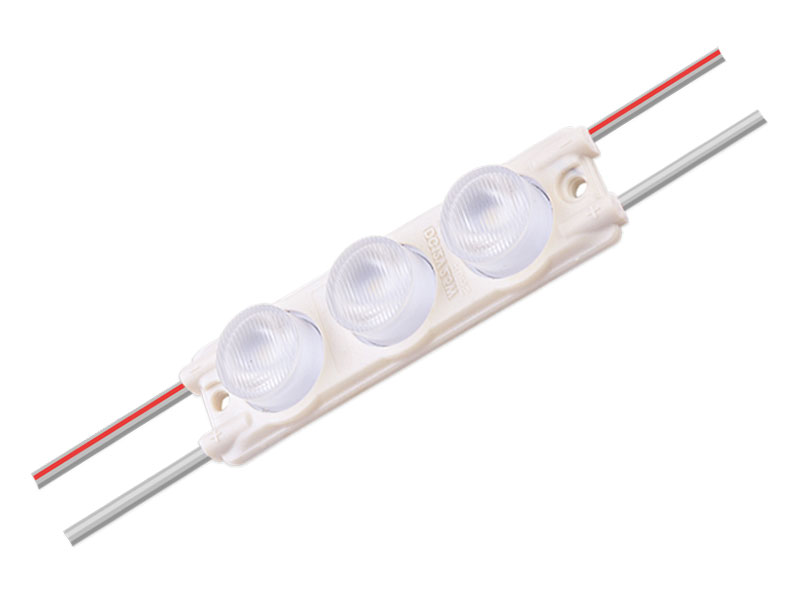

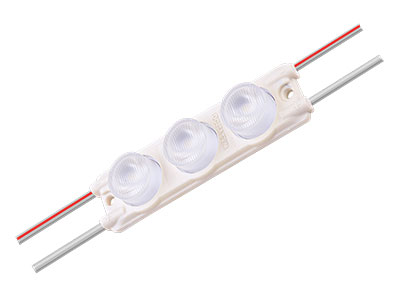

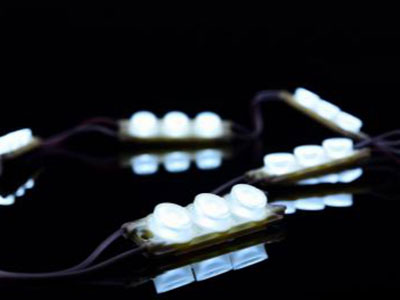

MOX268E(2.5W)

MOX268E(2.5W)
MOX268E(2.5W) MOX268E(2.5W) MOX268E(2.5W) MOX268E(2.5W) MOX268E(2.5W)
  • Connected with flexible cables
  • Type of protection (modules): IP65
  • Color rendering index Ra:≥75
  • Luminous flux per module chain:220LM
  • CE marked
  • 5 year guarantee

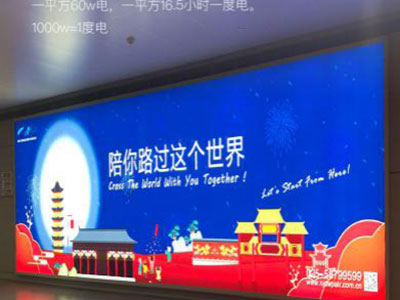

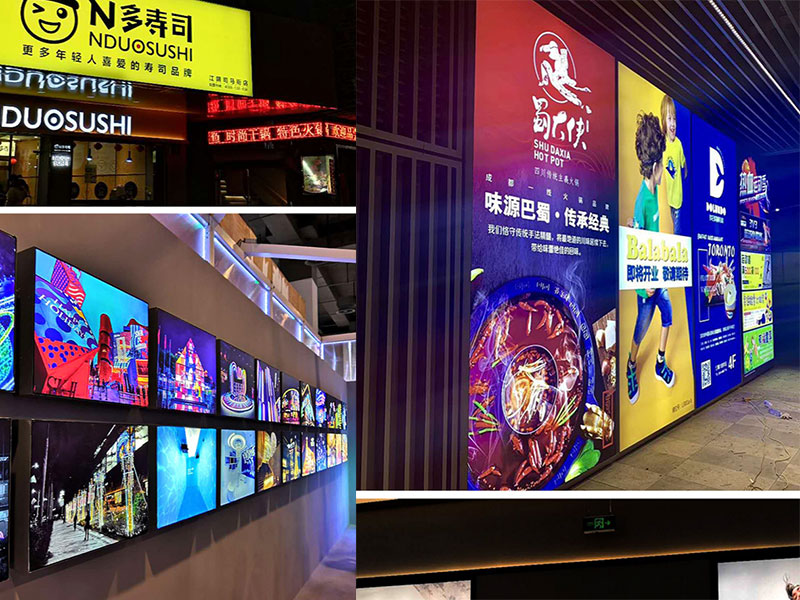

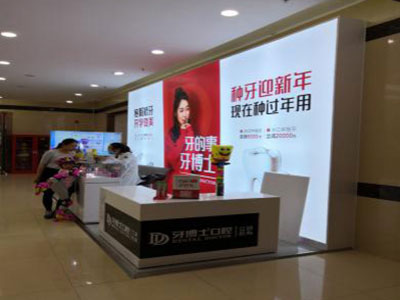

  • Suitable for 50-100cm distance double-sided light box
Inquiry
Features:
  • This LED uses a high brightness SMD2835 as the light source and features a low light decay and excellent color consistency
  • Available in white / true white / warm white color
  • PMMA optical lens with beam angle of 10×65°, uniform illumination
  • Injection craft, aluminum PCB exposed with better heat dissipation
  • With a thermal adhesive on the back, it has an excellent adhesion performance and will quickly conduct heat to the profile.
  • Fire rating to UL94V-0
  • DC24Vlow input, safe and reliable
Technical parameters:
Model LED chip Light color LED Color temperature(K) Nominal voltage( V ) Power( W ) Luminous flux Efficacy nominal(LM/W) Beam angle Nominal currentt(mA) Certification Color rendering index R(CRI)
( LM ) ( °)
MOX268E 2835 Cold white 9000-12000 12 2.5 220 88 10X65 208 CE RoHS ≥75
Pure white 7000-8000 12 2.5 220 88 10X65 208 CE RoHS ≥75
Other technical parameters:
Max daisy chain(PCS) Color LED drivers Weight (g/pcs) Working temperature(℃) Temperature(℃) IP rating (modules) Dimension Number of LEDs per module Warranty period(year)
(length*width*height mm)
20 White Constant voltage 17 -25~+60 -25~+70 IP65 74X20X10 3 5

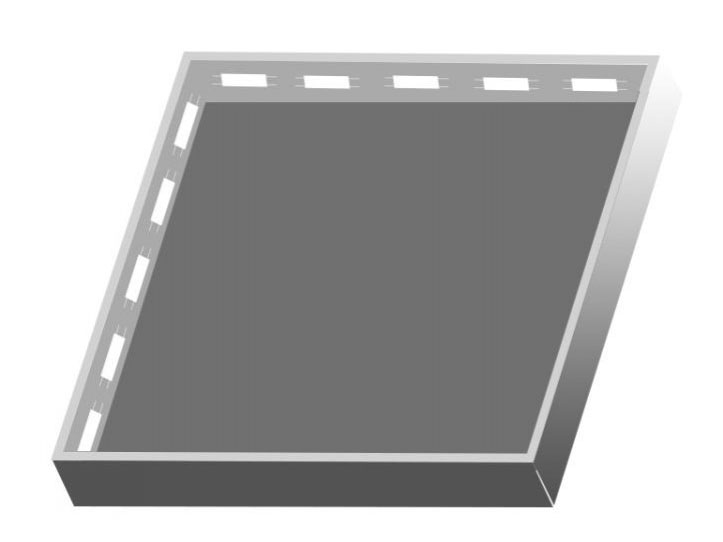

Installation or wiring diagram
MOX268E(2.5W)

Installation method: Installed on the side of box, back glue scheduled, fixed with screw

Cascade can cut, single module can be cut

Installation Instructions:
  • The main power cable is 2x1.5mm2 or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
  • Please use the connection diagram in the wiring scheme.
  • The screws in the lamp mounting should be inserted straight into the holes and locked into place.
  • When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
  • To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
  • Do not touch the wire after it is installed, as it is a live wire.
  • We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

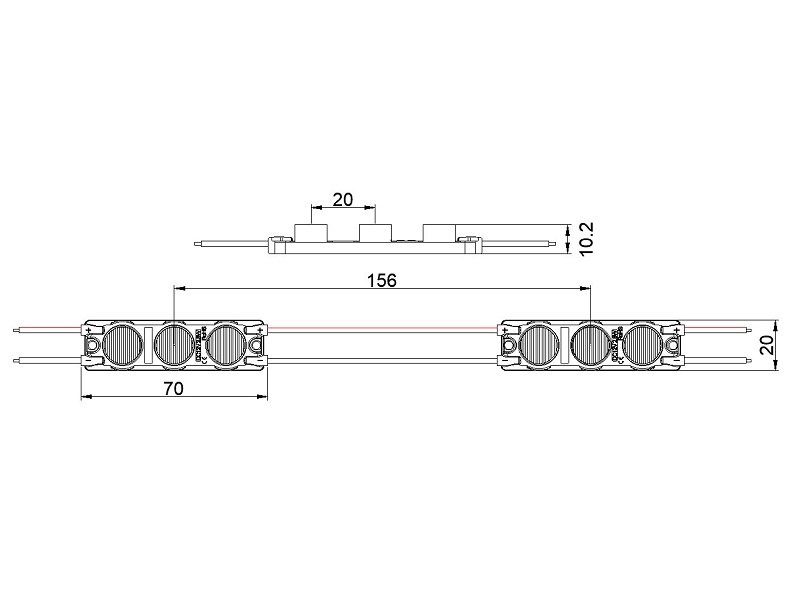

Dimension:
MOX268E(2.5W)

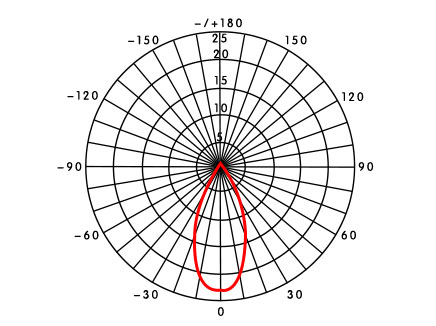

Light Distribution Curve:
MOX268E(2.5W)

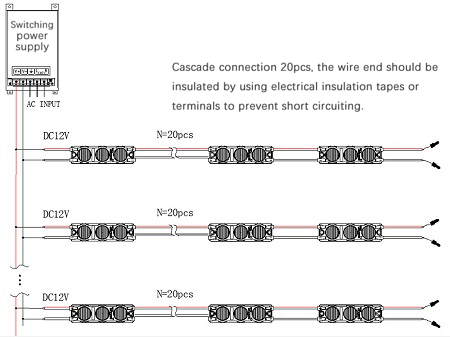

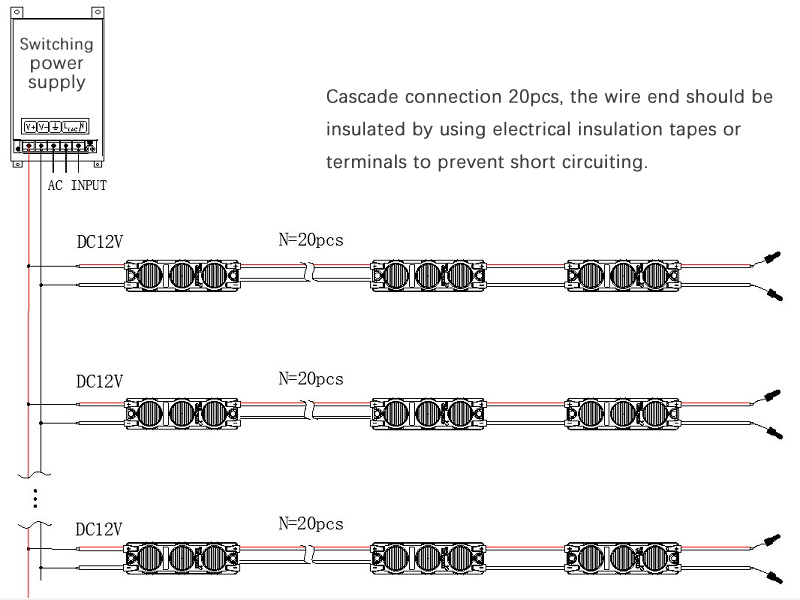

Connection diagram:
MOX268E(2.5W)
