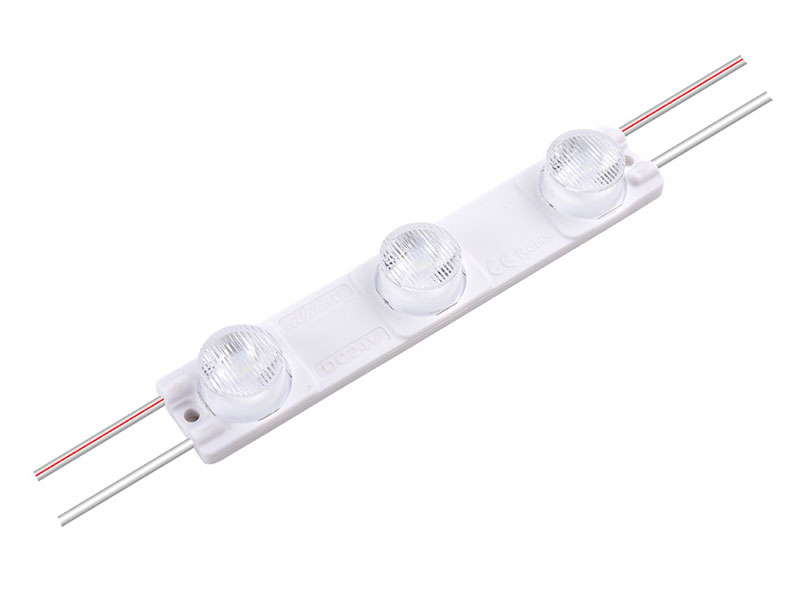

MRX269E(3.6W)

• Connected with flexible cables
• Type of protection (modules): IP65
• Color rendering index Ra：≥75
• Luminous flux per module chain：380~400LM
• CE marked
• 3 year guarantee
• Suitable for 60-120cm distance double-sided light box

Inquiry

• This LED uses a high brightness SMD 3030 as the light source and features a low light decay and excellent color consistency
• PMMA optical lens with beam angle of 10×65°, uniform illumination
• Fire rating to UL94V-0
• The product has a low power consumption, high brightness, is maintenance-free, and a 3-year warranty
• DC24V low input, safe and reliable, waterproof IP65

Installation or wiring diagram

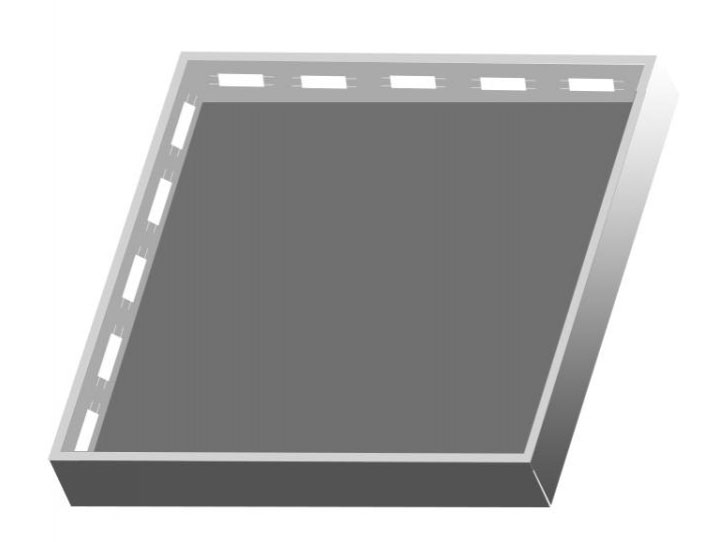

Installation method: Installed on the side of box, back glue scheduled, fixed with screw

Cascade can cut, single module can be cut

• The main power cable is 2x1.5mm² or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
• Please use the connection diagram in the wiring scheme.
• The screws in the lamp mounting should be inserted straight into the holes and locked into place.
• When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
• To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
• Do not touch the wire after it is installed, as it is a live wire.
• We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

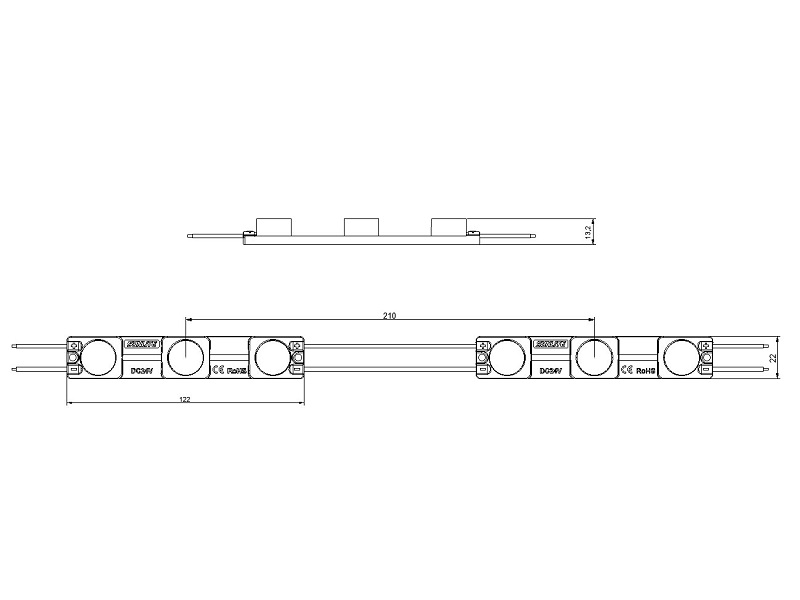

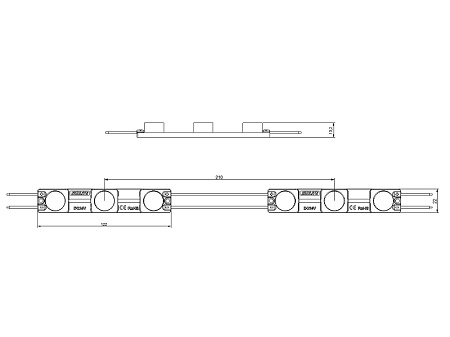

Dimension:

Light Distribution Curve:

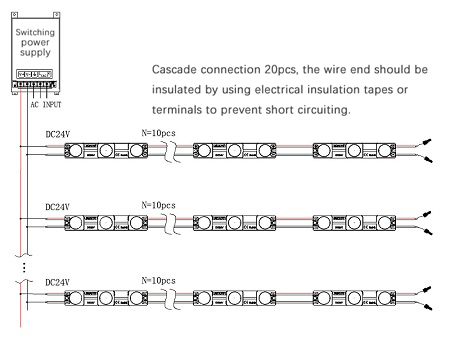

Connection diagram:

Packing:

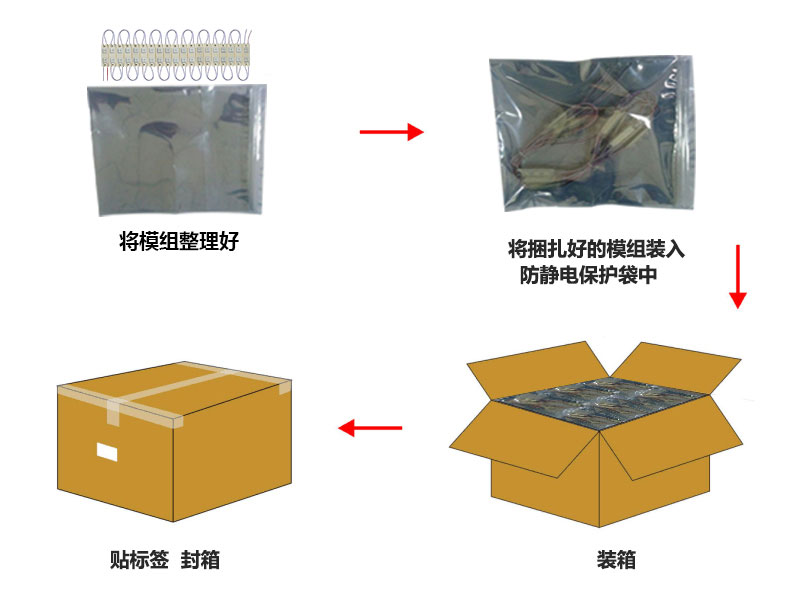

Packaging instructions:

• Electrostatic bag size：250*350mm
• Outer carton box size：700*337*320mm
• 10PCS/layer，each box contains 10 layers, total 100PCS
• Net Weight（NW）6.5(1±10%)kg
• Gross Weight（GW）:8.7(1±10%)kg
• Note: The above package quantity and weight of packaging is for reference only. There will be differences between the packaging weight and number for other packaging, depending on specific types.
