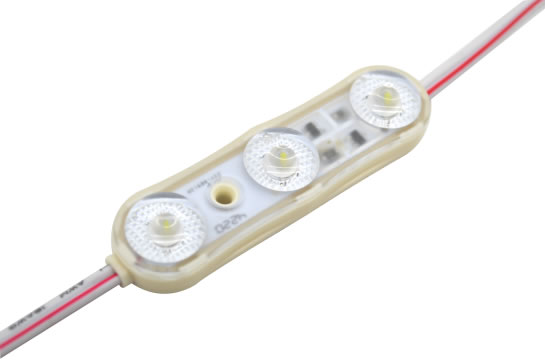

LED Module, MSX-227B

MSX-227B
MSX-227B MSX-227B
  • LED type: 2835
  • IP rating: IP67
  • Beam angle: 170°
  • 5-year warranty
  • CE, RoHS, UL
Features:
  • LED modules adopt SMD2835 LEDs with high luminous efficiency up to 150lm/w, which offers low thermal resistance, spot free lighting, long lasting and good color consistency.
  • PC triple lenses with 170° viewing angle provide large and uniform light-emitting area
  • ABS plastic molded housing is waterproof and fire rate, which makes the LED module be suitable for use in indoor and outdoor environments at low and high temperatures.
  • Low voltage input of DC12V ensures high operation safety
  • Features good air tightness and an IP67 rating
Technical parameters:
Model Input voltage Power Luminous flux Color temperature LED type Beam angle Colour Number of LED modules per chain
MSX227B DC12V 1.08W/pcs 170lm 7000-8000K / 9000-12000K 2835 170° Pure white / cold white 30pcs
Other technical parameters:
Shell color LED driver Weight Working temperature Storage temperature IP rating Warranty period
white External constant voltage, built-in constant current 13g/pcs -85 -105 IP67 5 years

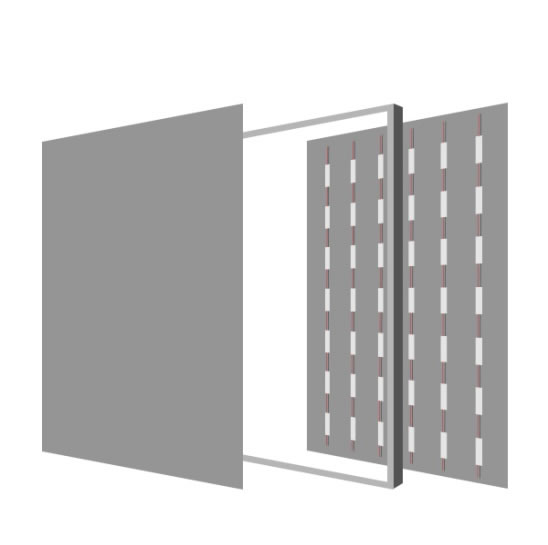

Installation or wiring diagram
MSX-227B

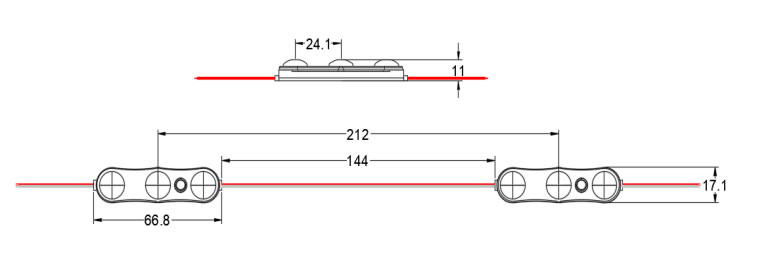

Dimension:
MSX-227B

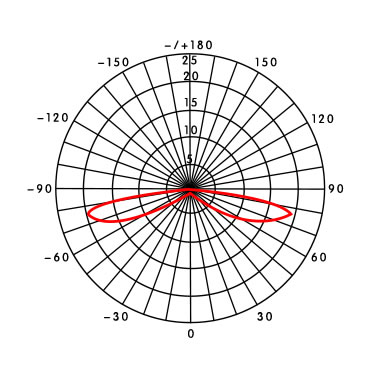

Light Distribution Curve:
MSX-227B

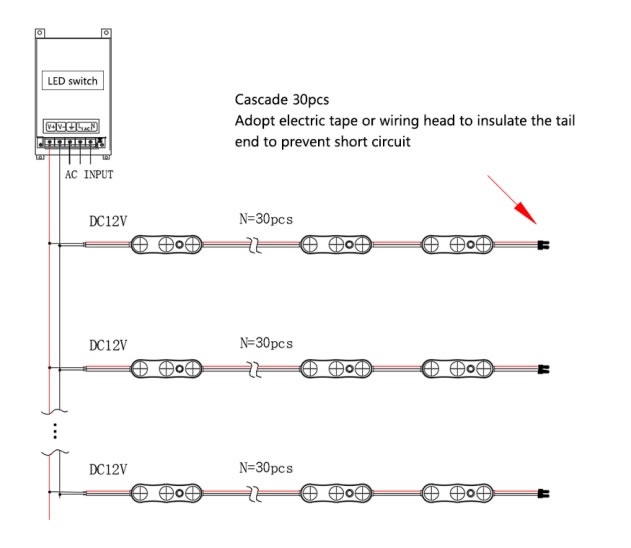

Connection diagram:
MSX-227B

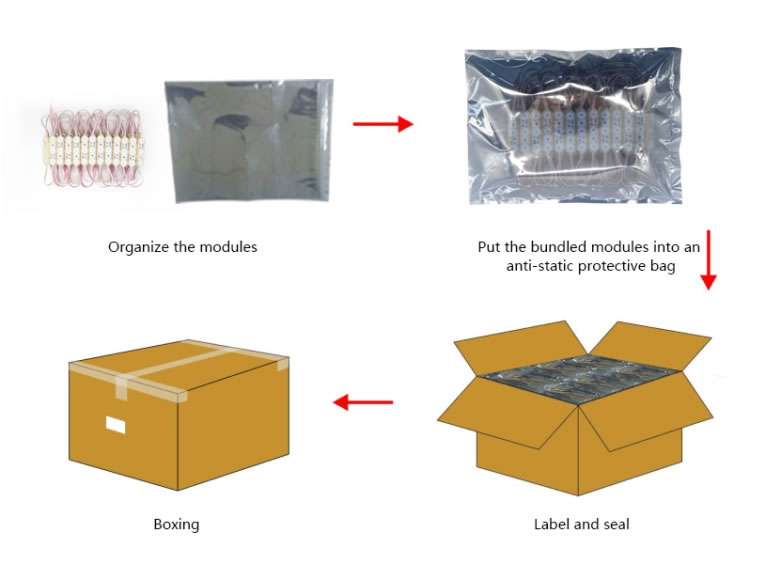

Packaging
MSX-226B

Packing: 1000pcs/bag
Size: 220*300*0.075mm
Carton size: 520*370*260mm
Net weight: 12.9(1±10%)kg
Gross weight: 13.4(1±10%)kg

Notes: The above-mentioned packaging quantity and weight are only for the illustrated packaging method, which vary from the packaging method.
The above parameters are subject to change without notice.

Installation Instructions:
  • The main power cable is 2x2.5mm2 or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 1mm2 / 16# specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
  • Please use the connection diagram in the wiring scheme.
  • The screws in the lamp mounting should be inserted straight into the holes and locked into place.
  • When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
  • To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
  • Do not touch the wire after it is installed, as it is a live wire.
  • We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

Here at Sunlite, we are experts in professional LED lighting solutions. We provide you with indoor/outdoor lighting solutions for advertising, decoration, and general lighting projects. All of our products can be customized to best suit your needs. Some of our most commonly applied products include LED strip lights, LED modules, LED power suppliers, and other LED accessories. Contact us today to learn more about how we can help you meet all your lighting requirements.
