MKX237B(1.08W)

MKX237B(1.08W)

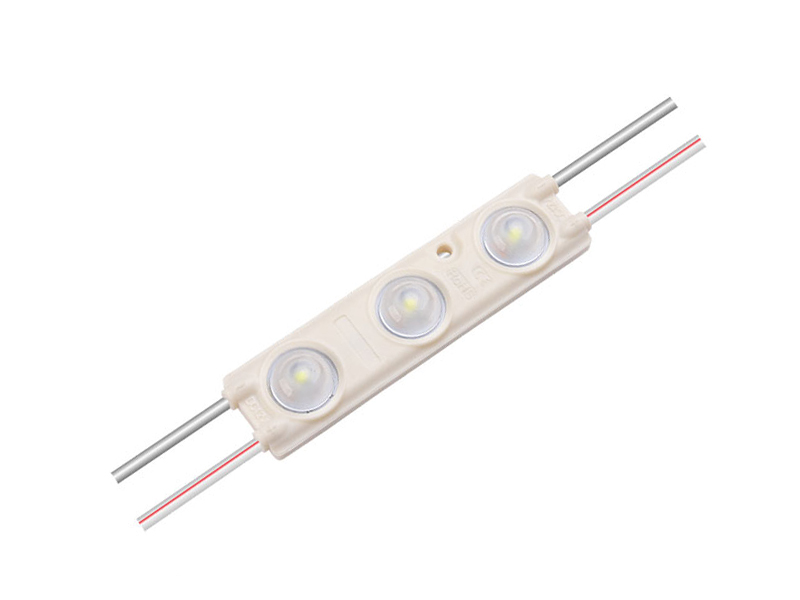

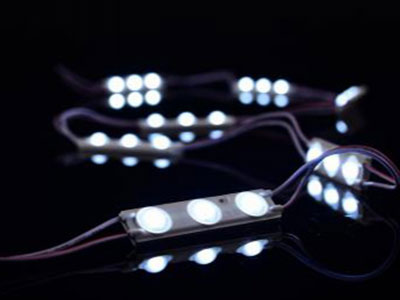

MKX237B(1.08W) MKX237B(1.08W) MKX237B(1.08W) MKX237B(1.08W) MKX237B(1.08W)
  • Connected with flexible cables
  • Type of protection (modules): IP65
  • Color rendering index Ra：≥75
  • Luminous flux per module chain：100LM
  • CE marked
  • 3 year guarantee
  • Suitable for 6-18cm of light box and signage lighting
Features:
  • This back LED uses a high brightness SMD2835 as the light source, thus ensuring a low light decay and excellent color consistency
  • Pure white and cool white are available
  • Using PVC injection molding technology, it features an excellent weather and damage resistance.
  • Fire rating to UL94V-0
  • Using optical lens, it has a low power consumption, high brightness, and long service life
Technical parameters:
Model LED Chip Light color LED Color temperature(K) Nominal voltage( V ) Power( W ) Luminous flux Efficacy nominal(LM/W) Beam angle Nominal currentt（mA） Certification Color rendering index R（CRI）
( LM ) ( °)
MKX237B 2835 Cold white 9000-12000 12 1.08 100 93 160 90 CE RoHS ≥75
Pure white 7000-8000 12 1.08 100 93 160 90 CE RoHS ≥75
Other technical parameters:
Max daisy chain（PCS） Color LED drivers Weight (g/pcs) Working temperature（℃） Temperature（℃） IP rating (modules) Dimension Number of LEDs per module Warranty period（year）
（length*width*height mm）
20 White Constant Voltage 19 -25～+60 -25～+70 IP65 64.5X15.8X8 3 3

Note:
① Testing environment temperature is 25±2℃;
② The above data are typical values, the actual data may vary and is subject to change without notice.
③ The modules are high-power products, thus they cannot be used as a double-sided power supply method.

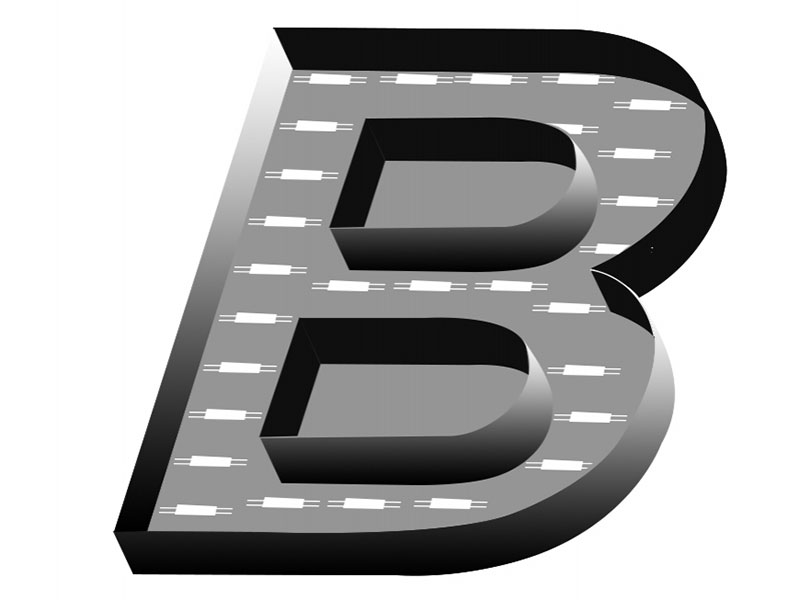

Installation or wiring diagram
MKX237B(1.08W)

Installation method: Use PE foam double-sided adhesive and neutral glass adhesive for positioning and fixing.

Cascade can cut, single module can be cut

Installation Instructions:
  • The main power cable is 2x1.5mm2 or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
  • Please use the connection diagram in the wiring scheme.
  • The screws in the lamp mounting should be inserted straight into the holes and locked into place.
  • When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
  • To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
  • Do not touch the wire after it is installed, as it is a live wire.
  • We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

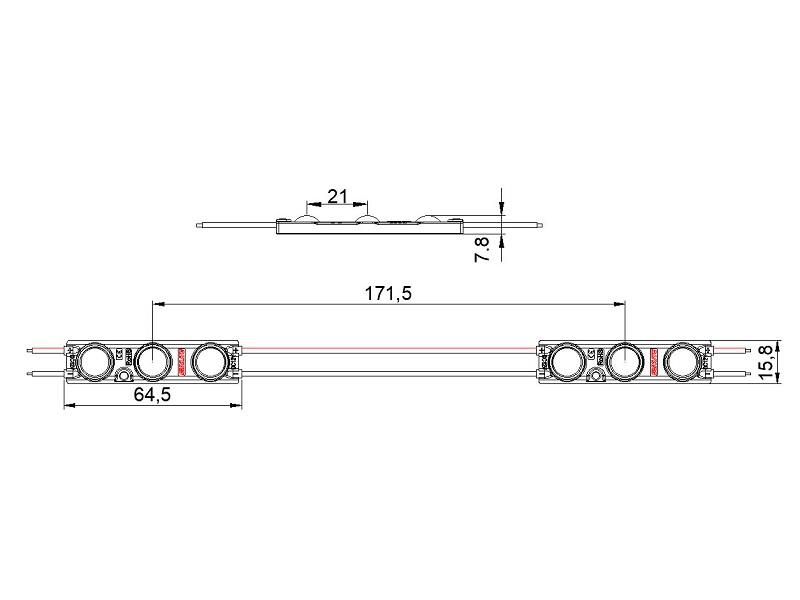

Dimension:
MKX237B(1.08W)

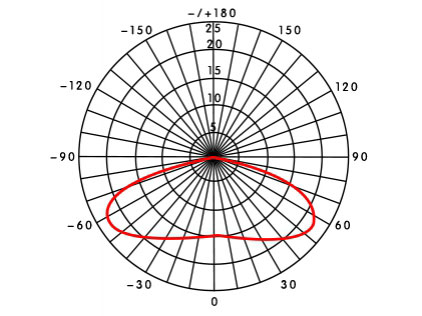

Light Distribution Curve:
MKX237B(1.08W)

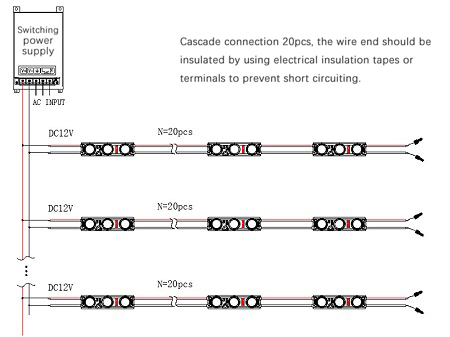

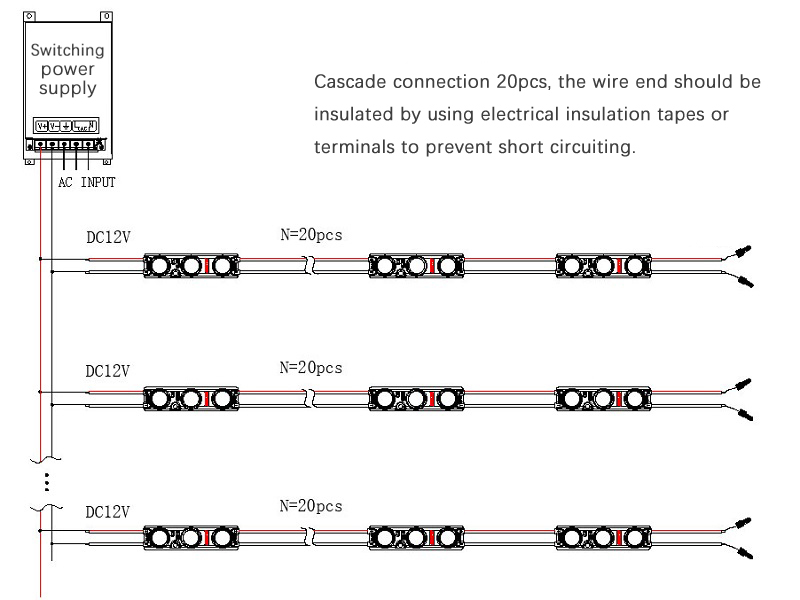

Connection diagram:
MKX237B(1.08W)

Here at Sunlite, we are experts in professional LED lighting solutions. We provide you with indoor/outdoor lighting solutions for advertising, decoration, and general lighting projects. All of our products can be customized to best suit your needs. Some of our most commonly applied products include LED strip lights, LED modules, LED power suppliers, and other LED accessories. Contact us today to learn more about how we can help you meet all your lighting requirements.
