- MBX303B(1.2W)

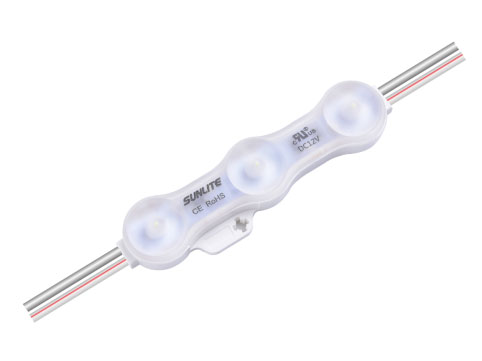

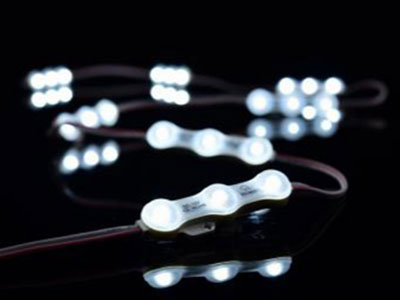

MBX303B(1.2W)
- Connected with flexible cables
- Type of protection (modules): IP65
- Color rendering index Ra：≥75
- Luminous flux per module chain：120LM
- CE marked
- 5 year guarantee
- Suitable for 6-18cm of light box and signage lighting
- This back LED uses a high brightness SMD2835 as the light source, ensuring a low light decay and excellent color consistency
- Pure white and cool white are available
- Engineering ultrasonic technology, excellent weather resistance, difficult to crack or otherwise damage.
- Fire rating to UL94V-0

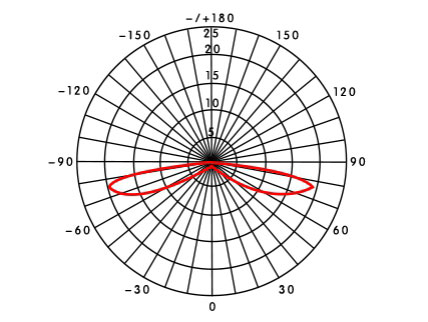

- PC optical lens with beam angle of 170°, low power consumption, high brightness, long service life and maintenance-free
- DC12V low input, safe and reliable, waterproof IP67

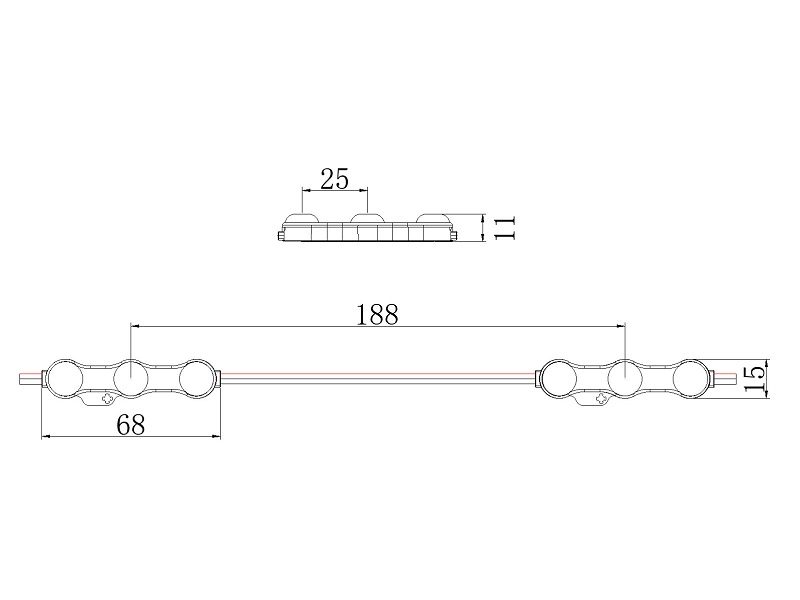

| Model | LED chip | Light color LED | Color temperature(K) | Nominal voltage( V ) | Power( W ) | Luminous flux | Efficacy nominal(LM/W) | Beam angle | Nominal currentt（mA） | Certification | Color rendering index R（CRI） |
| ( LM ) | ( °) | ||||||||||
| MBX303B | 2835 | Cold white | 9000-12000 | 12 | 1.2 | 120 | 100 | 170 | 100 | CE RoHS | ≥75 |
| Pure white | 7000-8000 | 12 | 1.2 | 120 | 100 | 170 | 100 | CE RoHS | ≥75 |
| Max daisy chain（PCS） | Color | LED drivers | Weight (g/pcs) | Working temperature（℃） | Temperature（℃） | IP rating (modules) | Dimension | Number of LEDs per module | Warranty period（year） |
| （length*width*height mm） | |||||||||
| 20 | White | Constant voltage | 15 | -25～+60 | -25～+70 | IP65 | 68*15*11 | 3 | 5 |
Note:
① Testing environment temperature is 25±2℃;
② The above data are typical values, the actual data may vary and is subject to change without notice.
③ The modules are high-power products, and cannot be used as a double-sided power supply method.

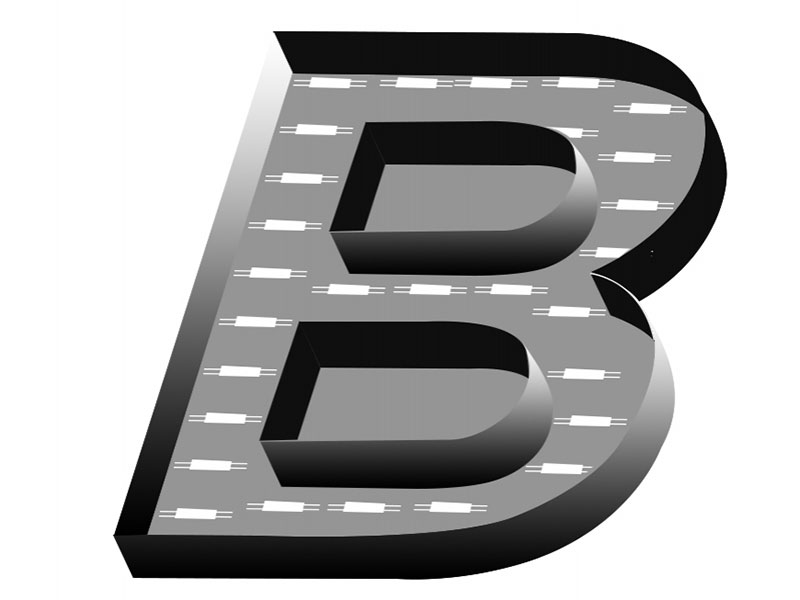

Installation method: Use PE foam double-sided adhesive and neutral glass adhesive for positioning and fixing.
Cascade can cut, single module can be cut
- The main power cable is 2x1.5mm2 or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.

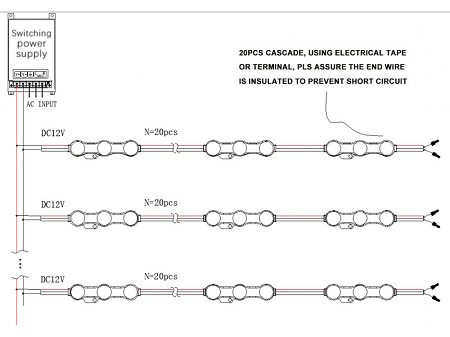

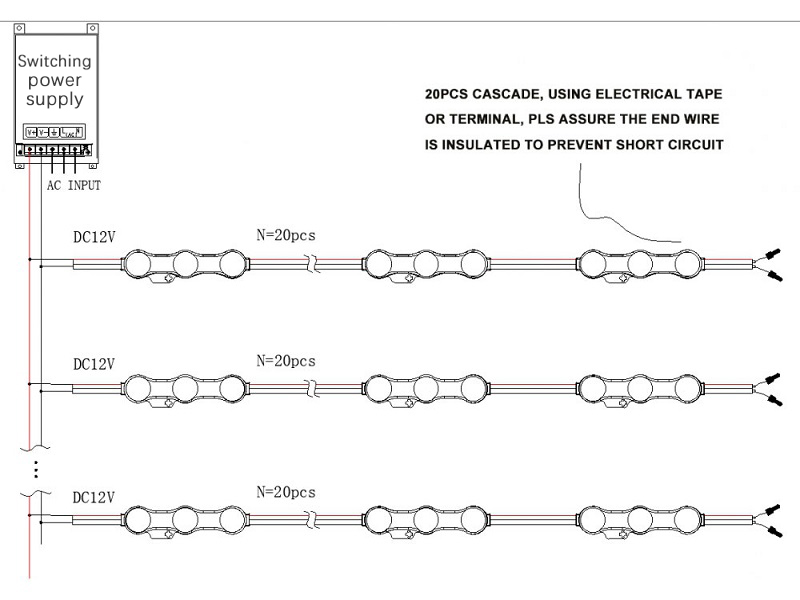

- Please use the connection diagram in the wiring scheme.
- The screws in the lamp mounting should be inserted straight into the holes and locked into place.
- When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
- To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
- Do not touch the wire after it is installed, as it is a live wire.
- We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).
