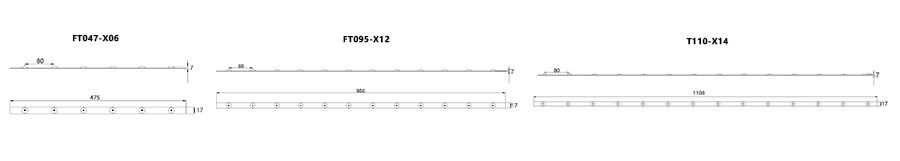

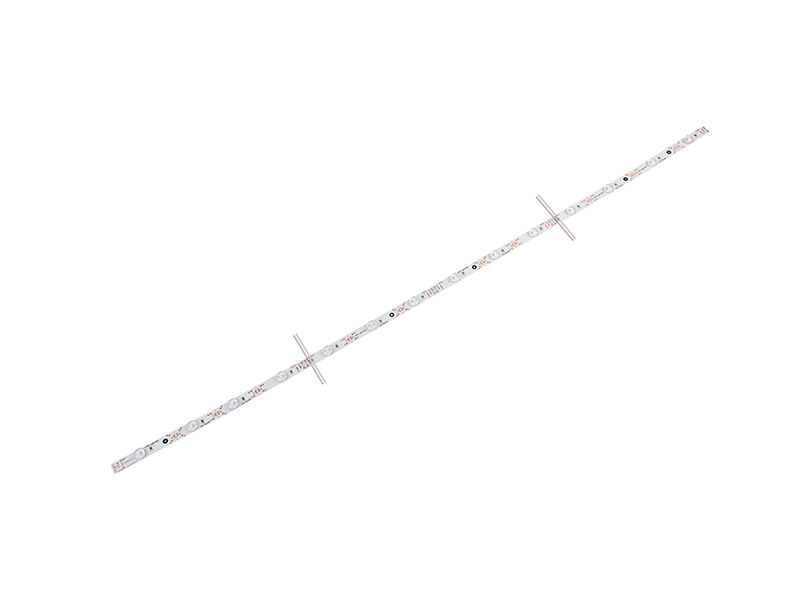

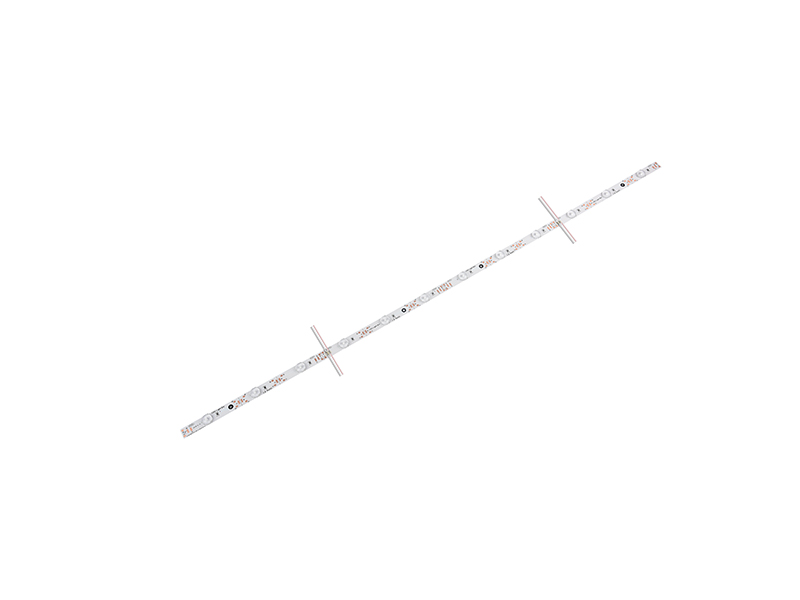

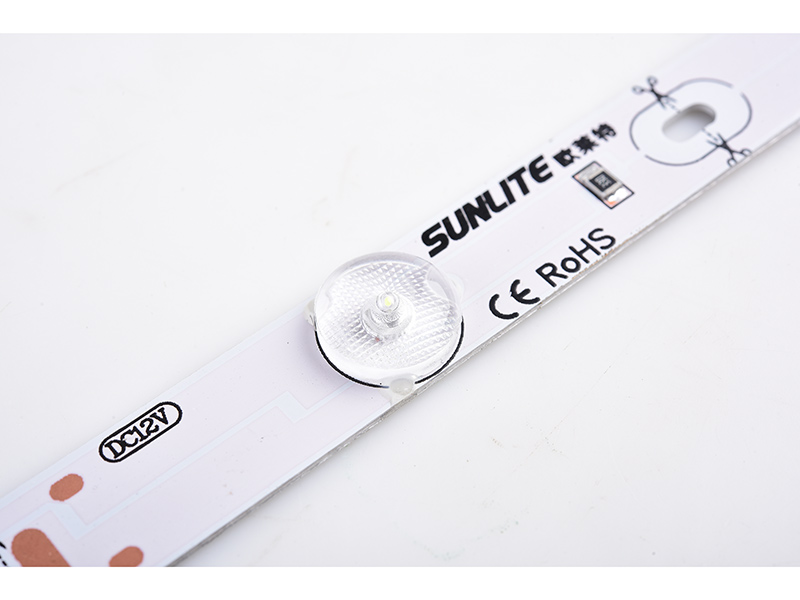

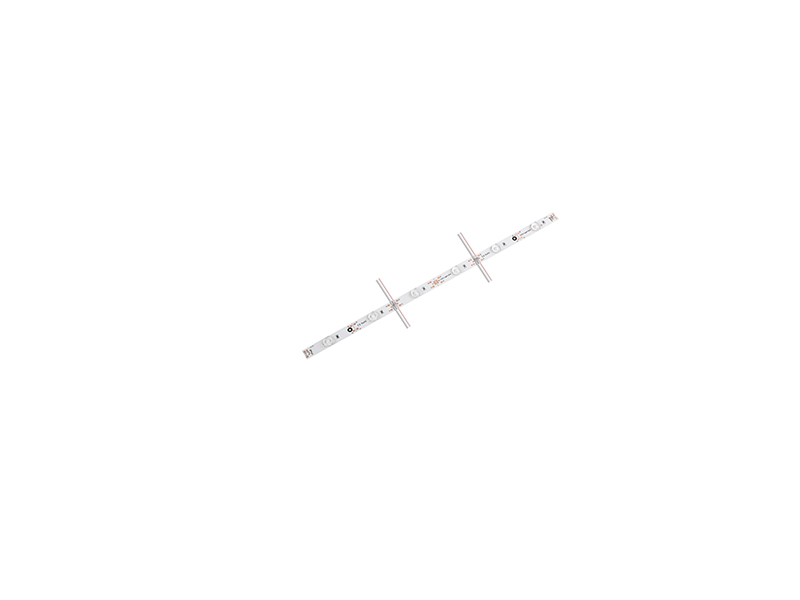

FT047-X06 / FT095-X12 / T110-X14

Features:

• TV backlit technology, uniform light emission, no yellow spots, no dark areas.
• The backlit LED light bar uses a high brightness SMD2835 as the light source, which is available in a wide array of colors.
• Easy connection and installation.
• Uses a high-quality lens, large luminous angle, and high light transmittance.
• Maximum line spacing of 25-30CM, saving the light source and installation costs.
• 8CM as a unit and can be cut to different lengths to meet different needs.

Inquiry

Remark:
①Testing environment temperature is 25±2℃;
②The above data are typical values, and are for reference only. The actual data may be different.

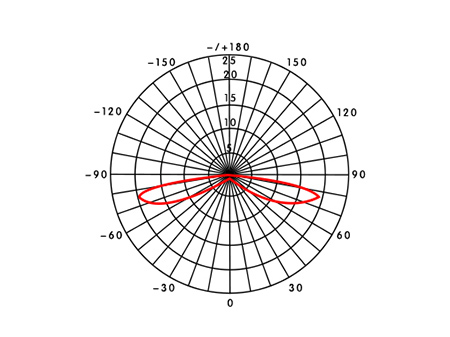

Light Distribution Curve:

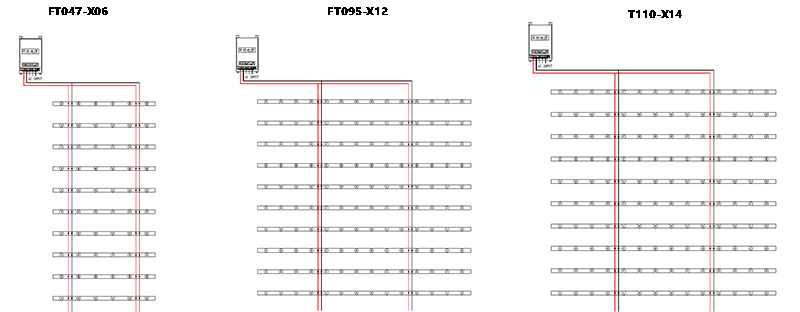

Connection diagram:

• The main power cable is 2x2.5 mm² or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75 mm²/ 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
• Please use the connection diagram in the wiring scheme.
• The screws in the lamp mounting should be inserted straight into the holes and locked into place; Adhesive backing mounting method is also available.
• If there is exposed wire at the end of LED light bar, the exposed wire should be cut off by diagonal plier and using electrical end cap to seal the wire end for insulation
• To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
• Do not touch the wire after it is installed, as it is a live wire.
• We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

• The test panel is a 3mm thick acrylic white board with a light transmittance of approximately 54.4%.
• The experiment uses a metal light box model.
• Arrange evenly according to the photoelectric performance parameters of the product.
