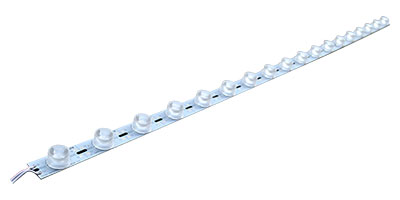

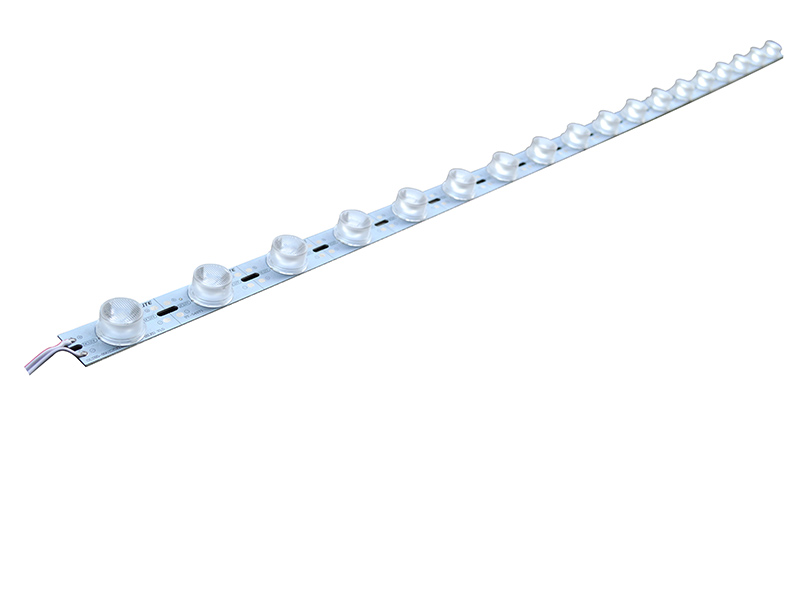

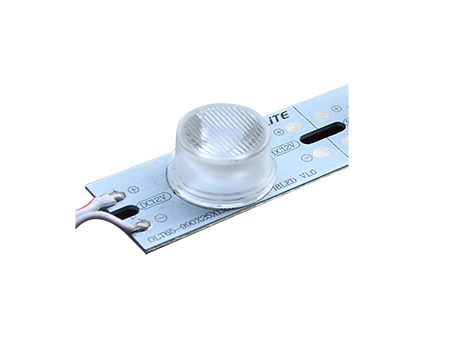

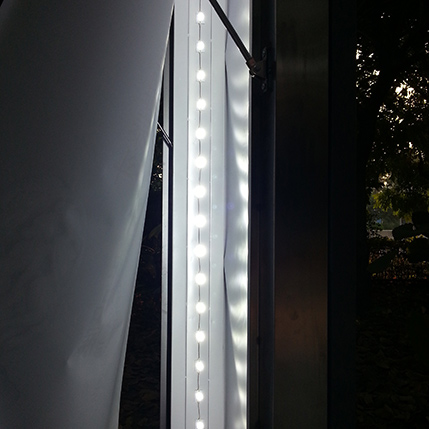

DXD438E Side-emitting LED Light Bar

Features:

• High power CREE LED light source, luminous efficacy up to 100lm/w

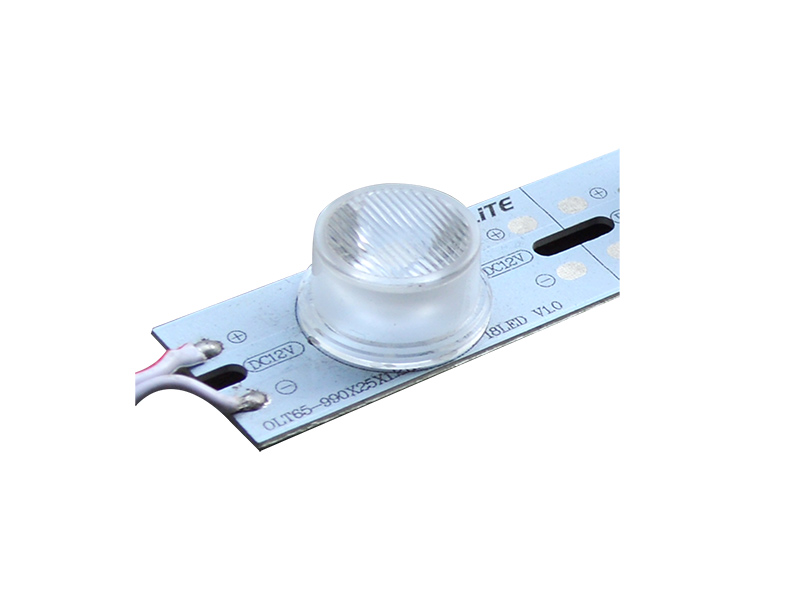

• Unique design of side emitting lens, diffuse the light evenly and ensure high brightness uniformity for lightbox
• Adopting constant current driver and aluminum profiles, results in better heat dispersion, energy saving and eco-friendly
• 3 year warranty

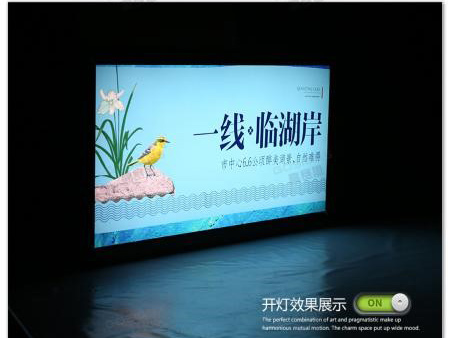

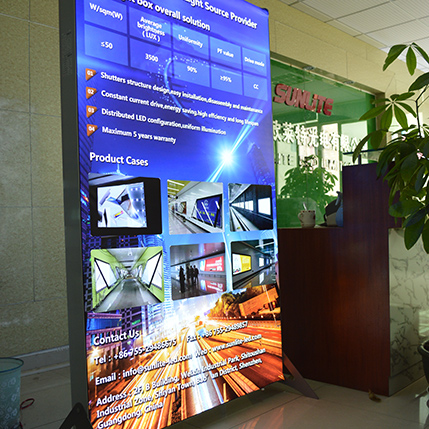

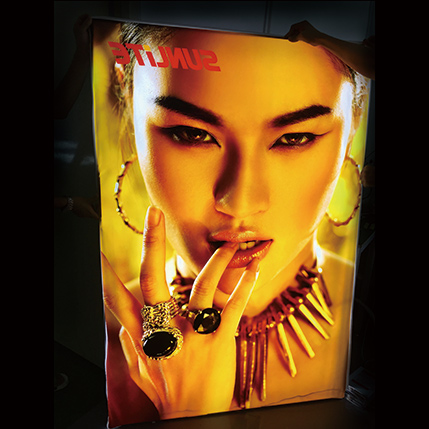

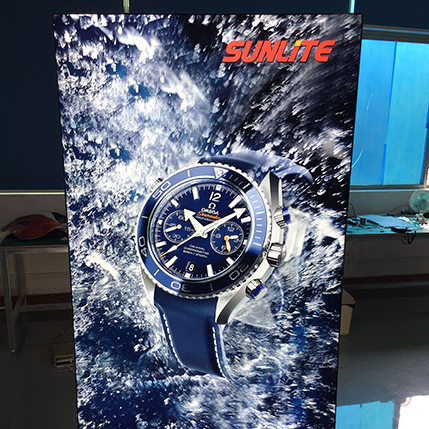

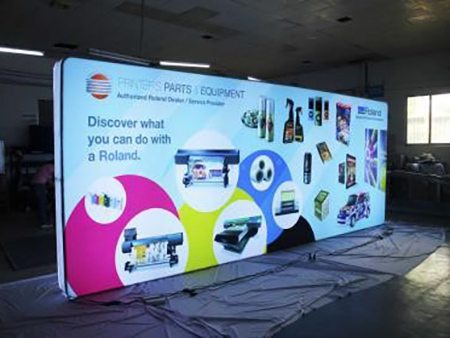

• Applicable for large and medium size advertising light boxes with a wall thickness range of 10-25cm

Inquiry

Model		LED chip	Light color LED	Color temperature(K)	Nominal voltage( V )	Power( W )	Luminous flux	Beam angle	Dimension
							( LM )	( °)	（length*width*height mm）
	DOX438E	2835	Pure White	6000-7000	12	18	1800	6*45	990*25*13.9

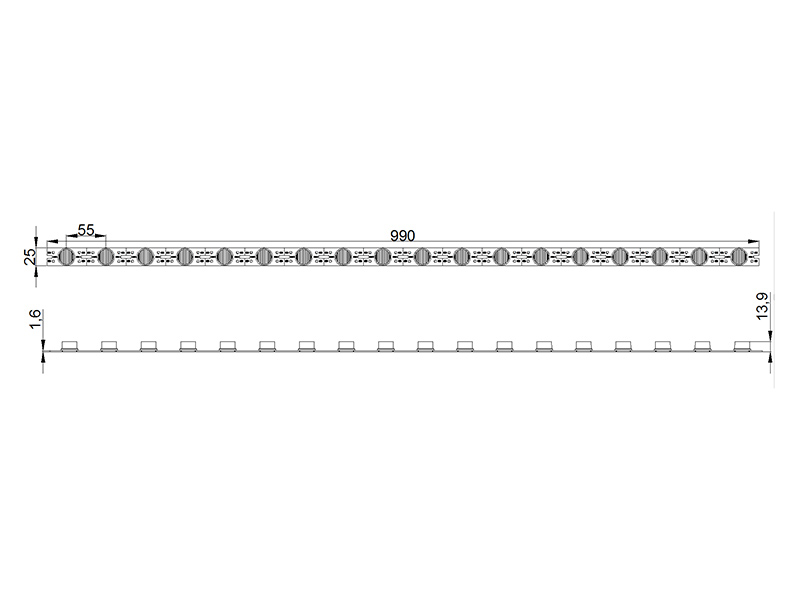

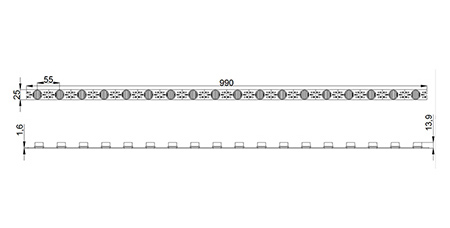

Dimension (Unit：mm [in]):

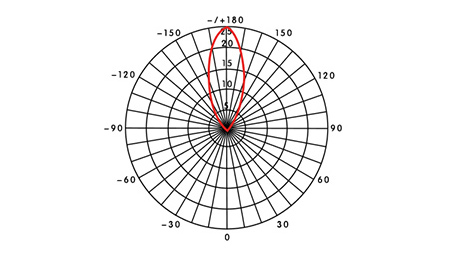

Light Distribution Curve:

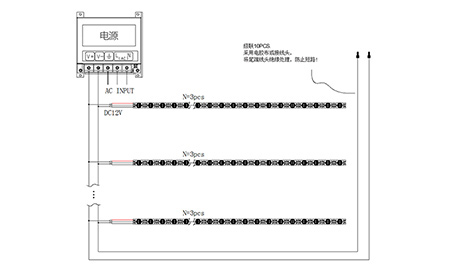

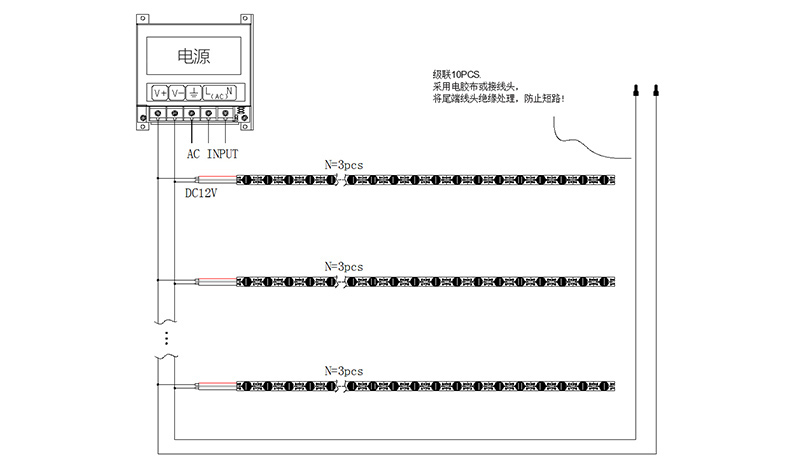

Connection diagram:

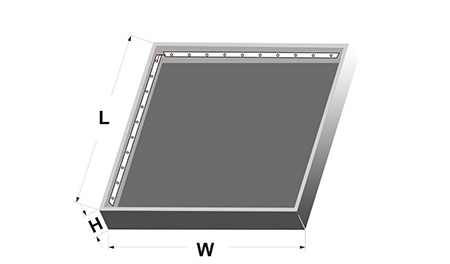

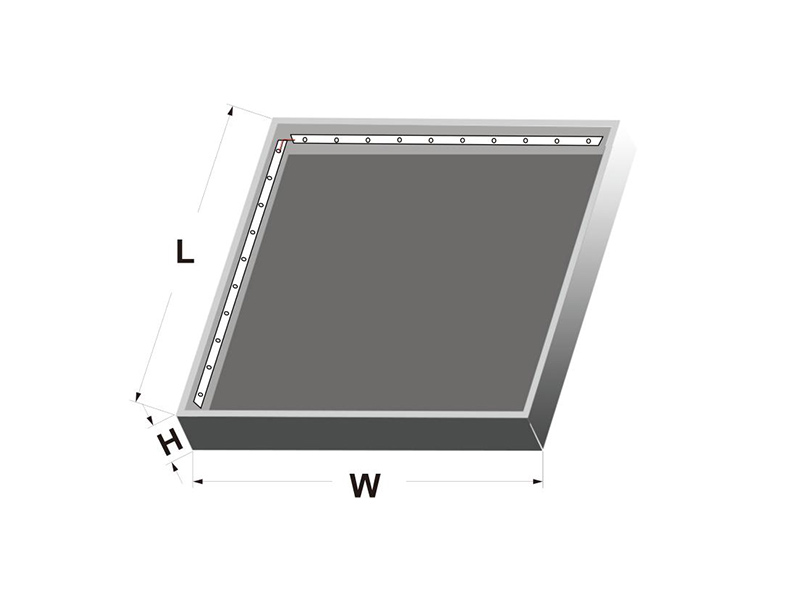

Installation diagram:

• The main power cable is 2x1.5 mm² or longer. If longer LED Rigid Bar lines are needed, the lamp power must be selected with a wire above 0.75 mm² / 18 # specifications in order to avoid overloading the power cord. Overloading the power cord leads to excessive heat and dangerous consequences. The switching power supply and power cord length straight between the lamp should not be longer than 3 meters. If longer, the line loss increases with an increase in total power.
• Please use the connection diagram in the wiring scheme.

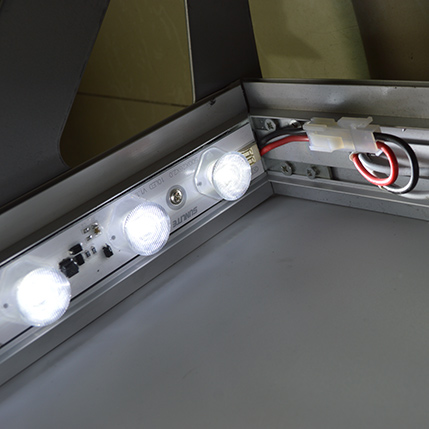

• The screws in the lamp mounting should be inserted straight into the holes and locked into place.
• When the LED Rigid Bar trails have a bare wire conductor, using diagonal pliers, first strip about 10mm of the wire, then screw it into the connection head insulation protection.
• To ensure waterproofing and corrosion protection, after the power line is screwed into the terminals, we recommend an injection of a one-component silicone (or otherwise neutral glass, plastic, or waterproof grease) to cover the bare copper wire power cord for additional protection.
• Do not touch the wire after it is installed, as it is a live wire.
• We recommend a switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).

• The test panel is a 3mm thick acrylic white board with a light transmittance of approximately 54.4%.
• The experiment uses a metal light box model.
• Arrange evenly according to the photoelectric performance parameters of the product.
